Columbia 17AF2ACP897 ZT50 (2012) Z-Series

Model: 17AF2ACP897 ZT50 (2012)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

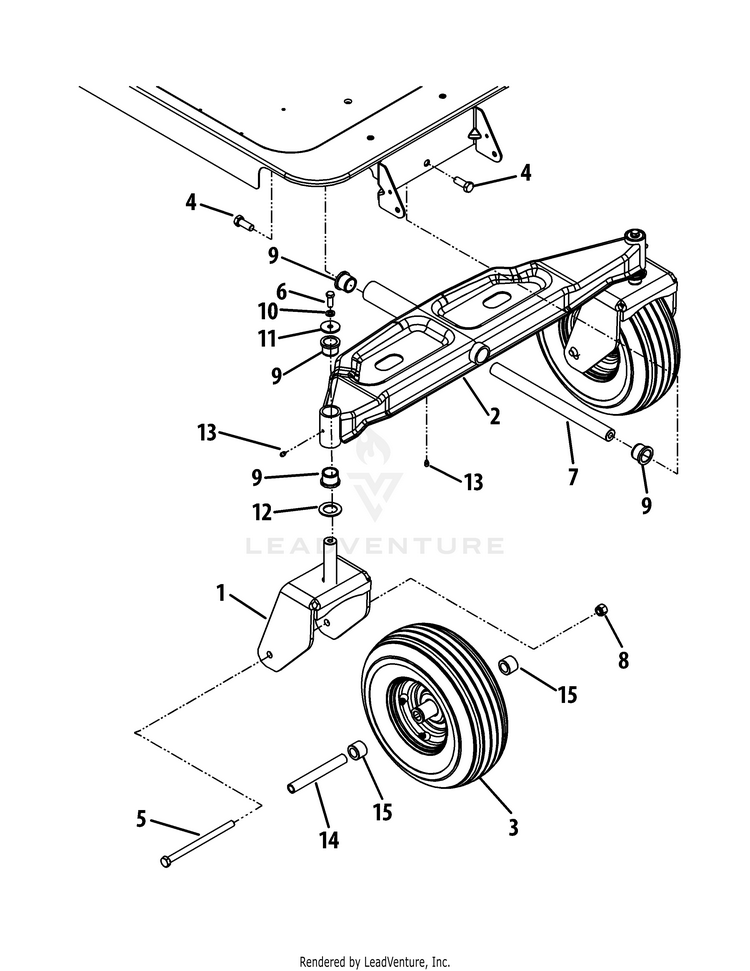

Front Axle

...
...
1
CASTER YOKE (BLACK JACK) MTD-603-04370A-0691

...
2
Front Pivot Axle MTD-603-04385A-0691

...
3
WHEEL ASSEMBLY (13 x 5-6) (OYSTER-DELI) MTD-634-04321A-0916

...
3
Tire, Grooved, 13 x 5-6, DELI (not shown) MTD-734-04255A-0906

...
3
Bearing, Flange, .76 ID w/ Lube Fitting (not shown) MTD-741-0990B

...
3
Bearing, Flange, .76 x 1.0 x 1.2 (not shown) MTD-741-0516B

...
4
Hex Lock Screw, 1/2-13 x 1.25 MTD-710-04186

...
5
HEX HEAD CAP SCREW 1/2 13-7.25 GR5 MTD-710-11661

...
6
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514

...
7
Axle Shaft MTD-911-04228

...
8
HEX NUT CENTER MTD-912-3058

...
9
Flange Bearing, 1.0 x 1.246 MTD-731-05500

...
10
L-Wash. 3/8" I.D. MTD-736-0169

...
11
Fl-Wash. .39" I.D. x 1.5" O.D. MTD-736-0227

...
12
Flat Washer, 1.0 x 1.75 x .10 MTD-736-0250

...
13
Lube Fitting, 3/16 Drive MTD-937-3000

...
14
Spacer, .51 x .75 x 5.825 MTD-750-04775A

...
15
Hub, .76 x 1.23 x .92 MTD-750-04792
...
...
...
