170402-2139-01 Briggs and Stratton Engine

Model: 170402-2139-01

Back To Assemblies

Save Part Not Listed?
product name

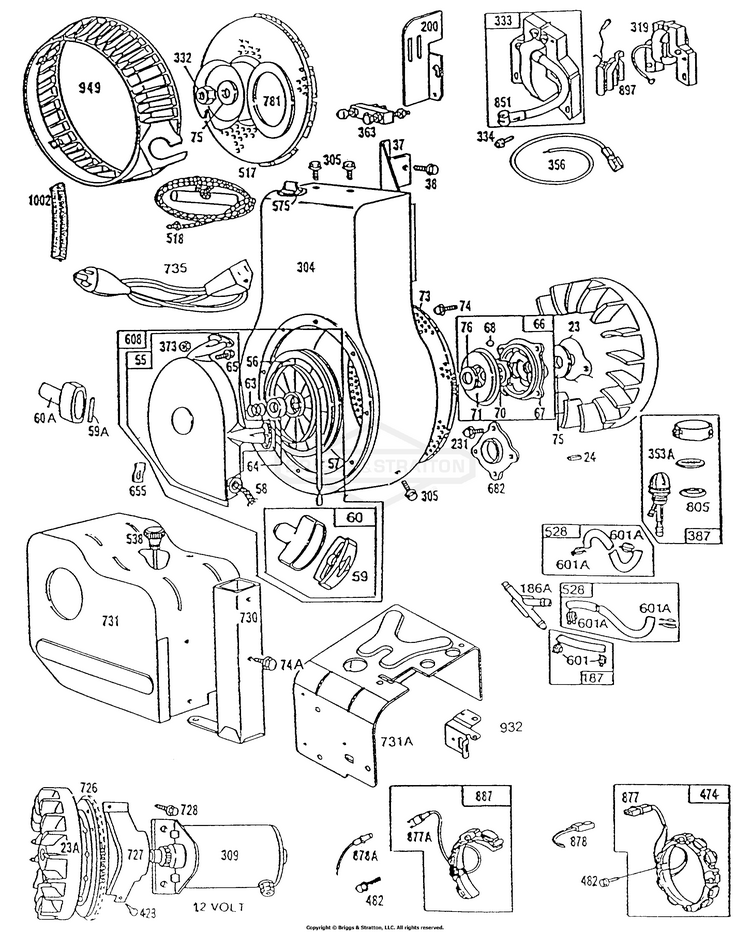

Blower Hsg,Sno-Gard,Rewind

...
...
23A
FLYWHEEL (Aluminum Ring Gear) For Use Only on Electric Starter Engine WITHOUT ALTERNATOR (Aluminum Ring Gear Inc.) For Plastic Drive Gear Starter BS-392034
...
23A
FLYWHEEL (Engines With Alternator) For Use on Engines WITH ALTERNATOR (Includes Aluminium Ring Gear.) for Plastic Drive Gear Starter BS-391983
...
23
FLYWHEEL BS-298260
...
24
KEY, Flywheel BS-222698S
...
37
GUARD, Flywheel BS-690411
...
38
SCREW BS-690364
...
55
HOUSING, Rewind Starter BS-393576
...
56
PULLEY, Starter Includes (63 Rope) if Longer Rope is Required, Order No. 280399 and Cut to Length.) BS-295871
...
57
SPRING-REWIND STR BS-490179
...
58
ROPE, Starter (Cut To Required Length) For Use with Plastic Pulley; if Longer Rope is Required, Order No. 280399 and Cut to Length. BS-692188
...
59A
PIN, Starter Grip BS-230228S
...
59
GRIP-STARTER ROPE BS-490652
...
60A
GRIP-STARTER ROPE BS-490652
...
60
GRIP-STARTER ROPE BS-490652
...
63
SPRING, Ratchet BS-690547
...
64
ADAPTER, Ratchet Spring BS-691920
...
65
SCREW BS-690837
...
66
CLUTCH-STARTER (Uses Rubber Coated Retainer Washer-Ref. 71) BS-399671
...
67
HOUSING, Clutch BS-394897
...
68
BALL, Clutch BS-691604
...
70
RATCHET-CLUTCH (engine W/Ring Gear on FW equipped for Elec Start) BS-691945
...
71
COVER, Ratchet (Rubber Coated) BS-691359
...
73
SCREEN-ROTATING BS-691754
...
74A
SCREW (Rotating Screen) BS-691660
...
74
SCREW (Rotating Screen) BS-690345
...
75
WASHER (5/8 Hole) BS-690582
...
76
COVER, Ratchet BS-691359
...
186A
CONNECTOR, Hose BS-280727
...
187
LINE, Fuel (Cut To Required Length) BS-791745
...
187
GASKET, Breather Passage (Cylinder To Impulse Pump)(Cut To Required Length) BS-791760
...
200
GUIDE, Air BS-691170
...
231
SCREW BS-690292
...
304
HOUSING, Blower Used After Code Date 86082500 BS-399271
...
304
HOUSING, Blower BS-491596
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
309
MOTOR, Starter (3 1/2 Housing) (Briggs & Stratton 110V) BS-396505
...
309
MOTOR, Starter (3 1/16 Housing) BS-497595
...
319
ARMATURE, Magneto (Electronic Ignition-Without Module) BS-398811
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, Magneto (Magnetron Ignition) BS-398811
...
334
SCREW BS-691061
...
356
WIRE, Stop BS-491391
...
363
PULLER, Flywheel BS-19203
...
373
NUT BS-690800
...
387
PRIMER, Carburetor BS-399255
...
423
SCREW BS-691097
...
474
ALTERNATOR (Dual Circuit) BS-84012663
...
482
SCREW (Tapping) BS-691183
...
517
SCREEN/PULLEY BS-496084
...
518
KIT, Handle/Rope BS-69932S
...
528
LINE, Fuel (1/4 O.D.) BS-399254
...
538
ROD, Governor Control BS-390167
...
575
SWITCH, Rotary (Mechanical Governor) BS-692309
...
601A
PLUG-OIL DRAIN BS-691663
...
601
CLAMP, Hose (Green) BS-791850
...
601
CLAMP, Hose (Black) BS-691038
...
608
STARTER, Rewind BS-693900
...
655
ANCHOR-REWIND SPRING (Stamped Rewind Housing) BS-691734
...
682
SHIELD, Starter BS-211516
...
726
GEAR, Ring BS-696537
...
727
GUARD-FLYWHEEL Used Before Code Date 86082600 BS-690490
...
727
GUARD-FLYWHEEL Used After Code Date 86082500 BS-690490
...
727
COVER, Starter Drive BS-395405
...
728
SCREW (5/16-18 X 3/4) BS-691058
...
730
MANIFOLD, Intake BS-299384
...
731A
HOOD, Snow BS-492291
...
731
HOOD, Snow BS-492291
...
735
CORD, Starter (Includes Adaptor Plug) BS-795901
...
781
CAP, Starter Pulley BS-280068
...
805
NUT (Primer) BS-94189
...
851
TERMINAL, Spark Plug BS-493880S
...
877A
WIRE/CONNECTOR, Alternator (10 Amp Regulated) BS-393814
...
877
WIRE/CONNECTOR, Alternator BS-393456
...
878A
WIRE ASSEMBLY (Dc Only) BS-692306
...
878
HARNESS, Wiring (Dual Circuit) BS-398661
...
887
ALTERNATOR (DC Only) BS-592828
...
897
KIT, Magnetron Ignition BS-394970
...
932
GUIDE, Rod BS-223648
...
949
GUARD, Rewind BS-691904
...
1002
SHIELD, Blower Housing BS-280738
