16N132-0002-H1 Briggs and Stratton Engine

Model: 16N132-0002-H1

Save
 Don't See Your Part Listed?
product name

Air Cleaner, Carburetor

...
...
11
TUBE, Breather BS-592353
...
51
GASKET, Intake BS-591779
...
51A
GASKET, Intake BS-591798
...
53
STUD (Carburetor) BS-591801
...
117
JET, Main (Standard) BS-592231
...
121
KIT, Carburetor Overhaul BS-592229
...
122
SPACER, Carburetor BS-591797
...
125
CARBURETOR BS-591799
...
163
GASKET, Air Cleaner BS-797756
...
297
NUT (Air Filter Retainer) BS-591808
...
535
FILTER-AIR CLEANER FO BS-591778
...
643
RETAINER, Air Filter BS-591806
...
654
NUT (Carburetor) BS-690939
...
717
BRACKET, Air Cleaner BS-591809
...
875A
BASE, Air Cleaner (Plastic) BS-591804
...
951
LEVER, Choke BS-592068
...
968A
COVER, Air Cleaner BS-591803
...
1408
NUT (Air Cleaner Bracket) BS-690939
...
1453
SEAL, Air Cleaner Cover BS-591807
...
1469
WASHER (Air Cleaner Bracket) BS-49811GS
...
1469A
WASHER (Air Cleaner Bracket) BS-22097GS

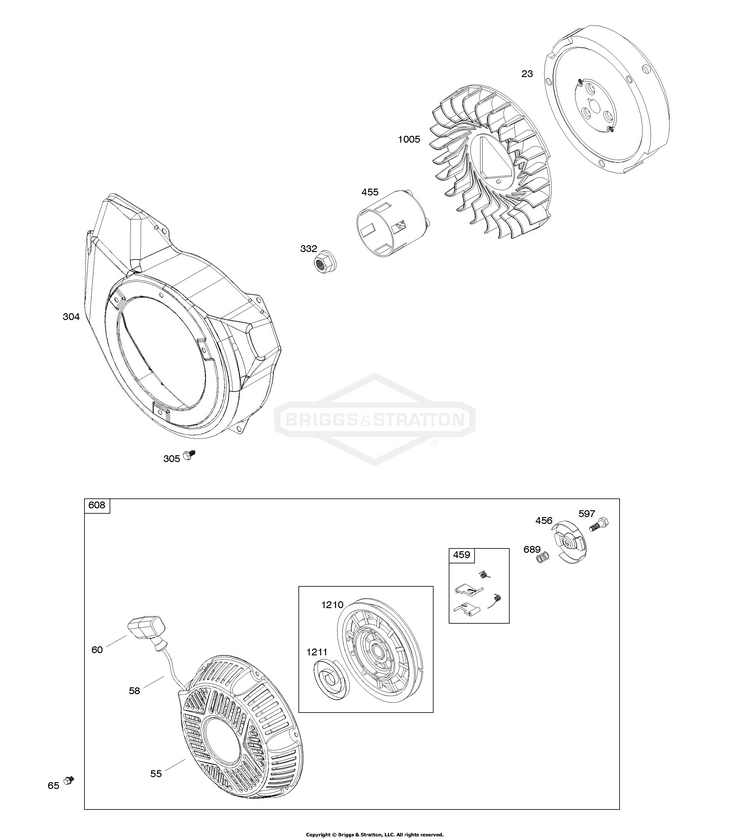

Blower Housing, Flywheel, Rewind Starter

...
...
23
FLYWHEEL BS-591802
...
55
HOUSING, Rewind Starter BS-591787
...
58
ROPE, Starter (Cut To Required Length) BS-691921
...
60
GRIP, Starter Rope BS-691915
...
65
SCREW (Rewind Starter) BS-797654
...
304
HOUSING, Blower BS-591785
...
305
SCREW (Blower Housing) BS-798618
...
332
NUT (Flywheel) BS-797811
...
455
CUP, Flywheel BS-591820
...
456
PLATE, Pawl Friction BS-799973
...
459
PAWL, Ratchet BS-799976
...
597
SCREW (Pawl Friction Plate) BS-799972
...
608
STARTER, Rewind BS-591781
...
689
SPRING, Friction BS-799669
...
1005
FAN, Flywheel BS-591789
...
1210
PULLEY/SPRING ASSEMBLY (Pulley) BS-591788
...
1211
PULLEY/SPRING ASSEMBLY (Spring) BS-591788

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Operator's Manual, Piston/Rings/Connecting Rod, Warning Label

...
...
1
CYLINDER ASSEMBLY BS-592041
...
3
SEAL, Oil (Magneto Side) BS-591794
...
12
GASKET, Crankcase BS-591782
...
15
PLUG, Oil Drain BS-797793
...
16
CRANKSHAFT BS-591836
...
17
BEARING, Ball BS-591792
...
18A
COVER, Crankcase BS-592038
...
20
SEAL, Oil (PTO Side) (PTO Side) BS-591793
...
22
SCREW (Crankcase Cover/Sump) BS-592235
...
24
KEY, Flywheel BS-797286
...
25
PISTON ASSEMBLY (Standard) BS-592042
...
26
SET, Ring (Standard) BS-592043
...
27
LOCK, Piston Pin BS-592044
...
28
PIN, Piston BS-592045
...
29
ROD, Connecting BS-592046
...
46
CAMSHAFT BS-591811
...
227
LEVER, Governor Control BS-591833
...
306
SHIELD, Cylinder BS-591790
...
307
SCREW (Cylinder Shield) BS-798618
...
492
SHIELD, Crankcase BS-592037
...
505
NUT (Governor Control Lever) BS-690939
...
509
SCREW (Crankcase Shield) BS-798840
...
522A
PLUG, Dipstick/Fill BS-797762
...
562
BOLT (Governor Control Lever) BS-797230
...
614
PIN, Cotter BS-797229
...
616
CRANK, Governor BS-591832
...
631
WASHER (Oil Drain Plug) BS-797794
...
718
PIN, Locating (Cylinder Head) BS-797792
...
718A
PIN, Locating (Crankcase Cover) BS-797761
...
729
CLIP, Wire BS-797750
...
842A
SEAL, O-Ring (Dipstick Tube) BS-797763
...
1319
LABEL, Warning BS-794467
...
1319A
LABEL, Warning BS-797669

Controls, Electrical System, Governor Spring, Ignition, Spark Plug

...
...
98
KIT, Idle Speed BS-592978
...
188
SCREW (Control Bracket) BS-798618
...
202
LINK, Mechanical Governor BS-591834
...
209
SPRING, Governor BS-797843
...
222
BRACKET, Control BS-591810
...
232
SPRING, Governor Link BS-797809
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-699492
...
286
MODULE, Oil Sensor BS-591729
...
333A
ARMATURE, Magneto BS-798616
...
334
SCREW (Magneto Armature) BS-797655
...
337
PLUG, Spark BS-798615
...
383
WRENCH, Spark Plug BS-19605S
...
635A
BOOT, Spark Plug BS-797685
...
729
CLIP, Wire BS-797750
...
729B
CLIP, Wire BS-592311
...
789
HARNESS, Wiring BS-797856
...
799
SCREW (Oil Sensor) BS-797774
...
1052
SENSOR, Oil BS-797771
...
1305
SCREW (Oil Sensor Module) BS-797686

Cylinder Head, Gasket Set

...
...
3
SEAL, Oil (Magneto Side) BS-591794
...
5
HEAD, Cylinder BS-592039
...
7
GASKET, Cylinder Head BS-591783
...
12
GASKET, Crankcase BS-591782
...
13
SCREW (Cylinder Head) BS-797791
...
20
SEAL, Oil (PTO Side) (PTO Side) BS-591793
...
33
VALVE, Exhaust BS-591813
...
34
VALVE, Intake BS-591812
...
35
SPRING, Valve (Intake) BS-591814
...
36
SPRING, Valve (Exhaust) BS-591814
...
40
RETAINER, Valve (Exhaust) BS-591816
...
40A
RETAINER, Valve BS-797782
...
40B
RETAINER, Valve (Intake) BS-591815
...
45
TAPPET, Valve BS-797786
...
51
GASKET, Intake BS-591779
...
51A
GASKET, Intake BS-591798
...
163
GASKET, Air Cleaner BS-797756
...
238
CAP-VALVE BS-591817
...
276
WASHER, Sealing (Rocker Cover) BS-590987
...
358
GASKET SET, Engine BS-592144
...
718
PIN, Locating (Cylinder Head) BS-797792
...
830
STUD, Rocker Arm BS-591088
...
842A
SEAL, O-Ring (Dipstick Tube) BS-797763
...
868
SEAL, Valve BS-797854
...
883
GASKET, Exhaust BS-797770
...
914
SCREW (Rocker Cover) BS-590988
...
1022
GASKET, Rocker Cover BS-797846
...
1023
COVER, Rocker BS-590989
...
1026
ROD-PUSH BS-591818
...
1029
ARM, Rocker BS-591087
...
1034
GUIDE-PUSH ROD BS-591819
...
1177
NUT (Muffler) BS-590965

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

...
...
...
...
