Drive Assembly

...
...
1
Transaxle Mtg. Brkt. MTD-17840-0637
...
2
Inter lock Switch MTD-925-04039
...
4
Shift Lever Ass’y MTD-647-04020
...
5
Hex Wash HD S-Tapp Scr 5/16-18 x .50 MTD-710-0607
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Hex Bolt 1/4-20 x 1.25 MTD-710-0809
...
8
Hex L-Wash HD Scr 3/8-16 x 1.5 MTD-710-1007
...
9
Hex Bolt 5/16-18 x 3.5" Lg. MTD-710-1266
...
10
Hex Bolt 3/8-16 x 2.0" Lg. (Gr. 5) MTD-710-3144
...
11
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
12
Hex Nut 3/8-24 MTD-712-0241
...
13
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
14
Flange Locknut 3/8-16 Gr. F MTD-912-0431
...
15
Flange Nut MTD-712-0700
...
16
Hairpin Clip MTD-714-0104
...
17
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
18
Cotter Pin MTD-914-0209
...
19
Cotter Pin 1/8" Dia. MTD-714-0470
...
20
Pulley Hub 5/8" Spline MTD-718-04407
...
21
Shift Knob MTD-720-04028
...
22
Drag Link Ball Joint MTD-923-3018
...
23
Sleeve, .758 x .821 x 3.3125 MTD-731-04602
...
24
Sleeve, .758 x .821 x 2.4375 MTD-731-04604
...
25
Extension Spring .62 dia. x 6.12 MTD-932-04370A
...
26
Complete Spring Clip MTD-732-0525
...
27
Extension Spring .59 x 4.0 MTD-732-0716D
...
28
Extension Spring, .50 Dia. x 6.37 MTD-732-0963
...
29
L-Wash. 3/8" I.D. MTD-736-0169
...
30
Shld. Scr. #10-32 x .5 MTD-738-04237A
...
31
Shoulder Spacer MTD-738-0372B
...
32
Shift Rod MTD-747-04146C
...
33
Brake Rod MTD-747-04164
...
34
Idler Adjustment Rod, 3/8 MTD-747-1127
...
35
Transaxle Spacer MTD-948-0334
...
36
Spacer .260 x .375 x 1.030 Lg. MTD-750-0566A
...
37
Variable-speed Belt MTD-954-0467A
...
38
Drive Belt MTD-954-0468
...
39
Pulley, V-Type, 7.25 dia. MTD-956-04002
...
40
Idler Pulley, Flat 2.75 OD MTD-756-04224
...
41
Shift Bracket MTD-783-04283
...
42
Shift Bracket F-N-R MTD-783-04360
...
43
Idler Bracket MTD-783-04442-0637
...
44
Brake Control Assembly MTD-647-04100-0637
...
45
Speed Control MTD-647-0032A-0637
...
46
AutoDrive Pedal Assembly MTD-683-0266
...
47
L-Wash 5/16 ID MTD-936-0119
...
48
Hex Wash. Hd. Scr. 5/16-18 x .75 Lg. MTD-710-1260A
...
49
Flat Washer .344 ID x .625 OD x .063 MTD-936-0264
...
50
Pin 3/8-16 x 2.68 Lg. MTD-711-04159B
...
51
HEX FLANGE NUT MTD-712-3004A
...
52
Compression Spring MTD-732-0335
...
53
Extension Spring, .50 OD x 1.41 MTD-732-0955
...
54
Extension Spring, .50 Dia. x 6.37 MTD-732-0963
...
55
AutoDrive Pedal Pad MTD-735-0662
...
56
Brake Pad MTD-735-3049A
...
57
Flat Washer .640 ID x 1.24 OD x .06 MTD-736-0187
...
58
Flat Washer .38 ID x .87 OD x .09 MTD-736-0262
...
59
Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5 MTD-710-3103
...
60
HEX NUT 5/16-18 MTD-712-3010
...
61
Shld. Scr .437 Dia x .162 Lg. MTD-938-0155
...
62
Shoulder Screw MTD-738-0380
...
63
Hex Flange Bearing .630 ID MTD-941-0225
...
64
Hex Flanged Bearing .628 ID MTD-741-3065B
...
65
Brake Lock Rod MTD-747-04093A
...
66
Cruise Control Rod MTD-747-04096
...
67
Cruise Control Latch MTD-748-04039C
...
68
Lock out Bracket MTD-783-0732A
...
69
Brake Pedal MTD-747-04641A-0637
...
70
Steering Support Bracket MTD-783-04612-0637
...
71
SINGLE SPEED TRANSAXLE ASSEMBLY MTD-918-04566B
...
72
Torque Bracket Assembly MTD-683-04287
...
73
Idler Bracket MTD-783-05904
...
74
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
75

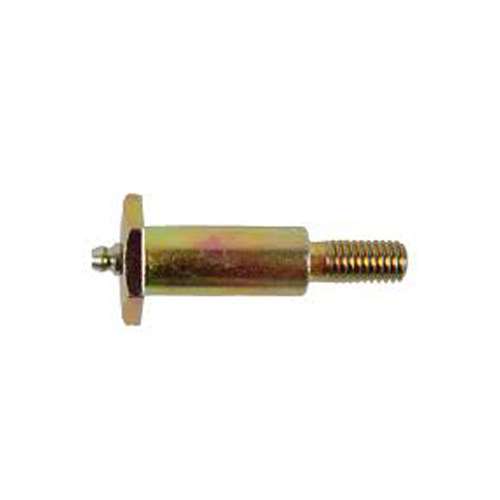

Hex Screw 3/8-16 x 1.25 MTD-638-04012A
...
76
Flat Washer .350 ID x 1.59 OD x .062 MTD-736-0430
...
77
Belt Guard MTD-732-1013A
...
78
Shoulder Spacer .884 x .190 738-04162C MTD-738-04162C
...
79
SAFETY SPRING SWITCH MTD-725-1644
...
80
Insulator Nut Plate MTD-926-0320
...
81
SCREW 3/8-16 X 2.25 GR5 MTD-710-06045
...
82
Idler Pulley, V-Type 5L x 3.06 MTD-756-04324
...
83
VARIABLE SPEED PULLEY (4.75 OD) MTD-656P05011
...
84
Pulley Bracket MTD-683-04296
...
85
Hex L-Bolt 5/16-24 x .75 Gr. 5 MTD-710-0627
...
86
Hex Wash HD Bolt 1/4-20 x 1.50" Lg. MTD-710-0778
...
87
Bearing Cup MTD-718-04261
...
88
Flat Washer .22 ID x 1.25 MTD-736-0362
...
89
Ball Bearing MTD-941-0600
...
90
Switch Bracket, Parking Brake MTD-783-04722-0637
...
91
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
92
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
93
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
94
HUB CAP MTD-731-2290B
...
95
Wheel Assembly Complete, 20 x 8 x 8 MTD-634-0104-0911
...
95
Rim Only Not shown MTD-634-04369-0662
...
95
Air Valve Not shown MTD-934-0255
...
95
Tire Only, 20 x 8 x 8, Square Shoulder Not shown MTD-734-1730-0901
...
96
Flat Washer .406 ID x .812 OD x .134 MTD-736-3010
...
98
Switch MTD-925-3167
...
99
Variable Speed Pulley Ass'y (Incl. Ref. Nos. 84-89) MTD-918-04423A
...
...
...
...
