Columbia 13AQ92GP897 (2010) Q92GP (2010) Lawn Tractor

Model: 13AQ92GP897 (2010) Q92GP (2010)
Save
 Don't See Your Part Listed?
product name

Drive Assembly

...
...
1
Cable Tie, 7.5 MTD-926-0154
...
2
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
3
Hex Bolt 5/16-18 x 2.75 MTD-710-0176
...
4
Jumper Harness MTD-725-04791A
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Extension Spring .50 dia. x 12.6 MTD-732-04606
...
7
Flange Locknut 3/8-16 Gr. F MTD-912-0431
...
8
Hex Lock Nut 1/2-20 Thread MTD-712-0346
...
9
Lockwasher MTD-736-04263
...
10
Hydro Fan MTD-731-06098
...
11
Input Pulley MTD-756-04308
...
12
Spacer, .260 x .372 x 1.420 MTD-750-04456
...
13
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
14
Idler Bracket MTD-783-06027B
...
15
Extension Spring .59 x 4.0 MTD-732-04624
...
16
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
17
Flat Washer .330 x .630 x .0635 MTD-936-0264
...
18
Pedal Transmission Bypass Rod MTD-747-04957A
...
19
Axle Hub MTD-941-0490
...
20
SHOULDER SPACER 1.375X.380X.183 MTD-738-04420
...
21
Hex Jam Nut 7/16-20 MTD-912-0240
...
22
Idler Pulley MTD-756-04325
...
23
Air Valve MTD-934-0255
...
24
Hex L-Wash HD Screw 3/8-16 x 1.5 MTD-710-1007
...
25
Idler Pulley, Flat 2.75 OD MTD-756-04224
...
26
Hex Bolt 3/8-16 x 2.25" Lg. MTD-710-3011
...
27
V-Belt MTD-954-04207
...
28
Truss Mach B-Tapp Screw #10 X .50 MTD-710-0351
...
29
Belt Disengage Support Bracket MTD-783-06260-0637
...
30
Hex Washer Screw #8-18 x .50 MTD-710-0227
...
31
Extension Spring 3/8 x 1.44 MTD-732-3118
...
32
Switch Actuator Bracket MTD-783-1019B
...
33
Insulator Nut Plate MTD-926-0320
...
34
SAFETY SPRING SWITCH MTD-725-1644
...
35
Hydro Control Rod MTD-747-04979
...
36
Wire Ring MTD-732-0729
...
37
Sleeve 0.765 x 2.41 MTD-731-05300A
...
38
Hex Wash HD Tapp Screw 1/4-20 x .375 MTD-710-0653
...
39
Flat Washer .406 ID x .812 OD x .134 MTD-736-3010
...
40
Hydro Transmission MTD-918-0319
...
41
Hydro By pass Rod MTD-747-04991
...
42
Extension Spring .47 OD x 2.03 Lg. MTD-932-0209
...
43
Brake Rod MTD-747-04139
...
44
Flat Washer .312 ID x .75 OD MTD-936-3008
...
45
Hydro Mount Bracket MTD-783-06133-0637
...
46
Extension Spring .59 x 4.0 MTD-732-0716D
...
47
Wheel Ass'y Comp. 22 x 9.5 x 12 MTD-634-04210-0911
...
47
RIM ASSEMBLY (12 x 7) (OYSTER GREY) Not shown MTD-634Z04238-0662
...
47
Tire Only Not shown MTD-734-04174
...
47
Air Valve Not shown MTD-934-0255
...
48
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
49
Hex L-Bolt 5/16-24 x .75 Gr. 5 MTD-710-0627
...
50
Hub Assembly, Wheel MTD-918-04228A
...
51
Lug Nut MTD-712-3050
...
52
Push Cap 5/8" Dia Rod MTD-726-0214
...
53
NYLINER BEARING MTD-741-0495
...
54
Control Pedal MTD-719-0584B-0637
...
55
Hex Washer Hd. TT Screw 1/4-20 x 1.625 MTD-710-1325
...
56
Brake Pedal Pad MTD-735-04136
...
57
CLEVIS PIN 5/16 x 4.135 MTD-711-05068A
...
58
Transmission Rod Support Strap MTD-783-05914
...
59
SHAFT ASM-HYD DRV PDL EXP NX-9 MTD-683-04537A
...
60
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
61
Bow-Tie Cotter Pin MTD-714-04040
...
62
Cruise Latch MTD-748-04203
...
63
Shoulder Screw MTD-738-0380
...
64
Self-tapping Screw 5/16-18 x .625 MTD-710-0604A
...
65
Brake Shaft Support Strap MTD-783-05940
...
66
Extension Spring .63 x 4.95 MTD-732-04587
...
67
Brake Control Ass’y MTD-647-04152D
...
68
Brake Pedal Bracket MTD-783-06103A-0637

Engine Accessories

...
...
1
Hose Clamp MTD-726-0205
...
2
Fuel Line MTD-751-10349-28
...
3
Oil Drain Hose MTD-751-3141-14
...
4
Oil Drain MTD-951-10517A
...
5
SCREW 3/8-16 X 1 MTD-710-04683C
...
6
Hex Wash S-Tapp Screw 1/4-20 x .50 MTD-710-0599
...
7
Screw. 5/16-18 x .75 MTD-710-1314A
...
8
EXHAUST MANIFOLD GASKET MTD-KH-25-041-17-S
...
9
Cable Tie MTD-725-0157
...
10
Muffler Deflector MTD-751-0564B
...
11
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
12
Hex AB Screw #8-18 x .50 MTD-710-0227
...
13
Pop Rivet MTD-728-04000
...
14
MUFFLER SHIELD (POWDER BLACK) MTD-683-05460A-0637
...
18
EXHAUST MUFFLER (KH TWIN) MTD-751P10528E
...
19
CLAMP, DUAL CONDUIT MTD-KH-47-237-02-S
...
20
Thread Forming Screw MTD-KH-25-086-405-S

Frame & PTO

...
...

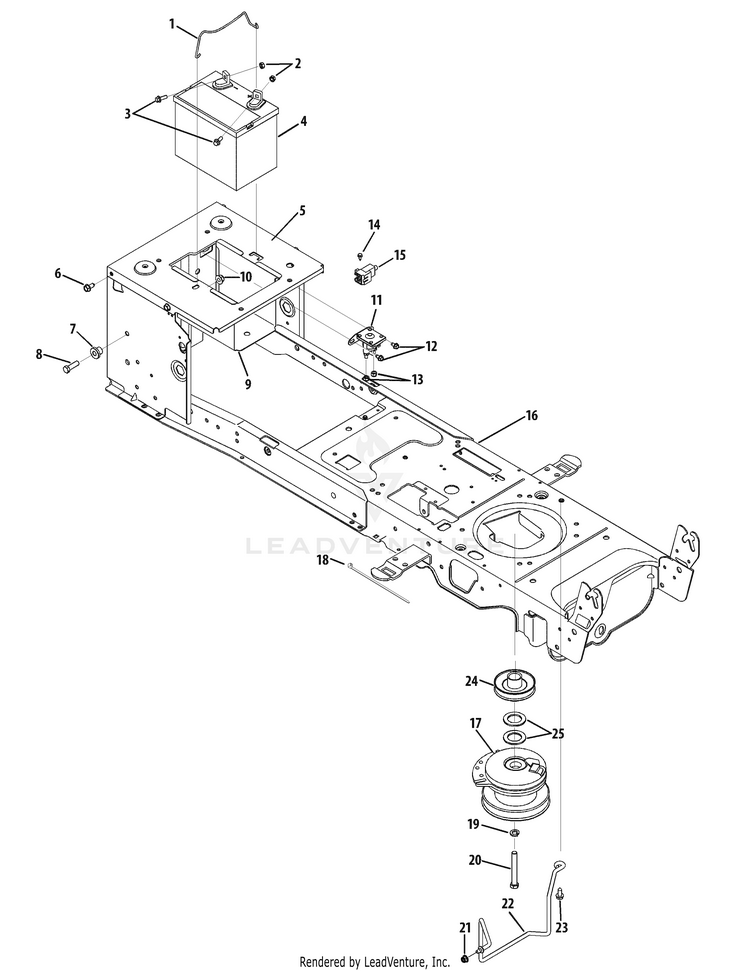

1
Battery Hold Down Rod MTD-747-04121A
...
2
Sems Hex Nut 1/4-20 MTD-712-0271
...
3
Hex Hd. Flg. Screw. 1/4-20 x .75 Gr. 5 MTD-710-04666
...
4
Battery MTD-925-1707D
...
5
Seat Frame Bracket MTD-783-06089-0637
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Shoulder Spacer .38 x 1.0 x .70 MTD-738-04058
...
8
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
9
Battery Tray MTD-783-0349-0637
...
10
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
11
12V SOLENOID MTD-725-04439B
...
12
Hex Wash HD Tapp Screw 1/4-20 x .375 MTD-710-0653
...
13
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
14
Shoulder Screw #10-32 x .50 MTD-738-04237A
...
15
Switch, Interlock MTD-725-04363
...
16
Frame Assembly, Lower MTD-683-04469D-0637
...
17
Electric PTO Clutch (50) MTD-917-04174A
...
18
Cable Tie MTD-725-0157
...
19
Lockwasher 7/16 ID MTD-936-0171
...
20
Hex Cap Lock Screw 7/16-20 x 3.5 Gr. 5 MTD-710-04379A
...
21
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
22
Keeper Rod (50") MTD-747-05073
...
23
SCREW 5/16-18 x .750 MTD-710-04484
...
24
Engine Pulley MTD-756-0978B
...
25
Flat Washer 1.03 ID x 1.64 OD x .095 MTD-736-0277

Hood & Grille

...
...
1
Dash Lever MTD-631-04353A
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
Hex Wash S-Tapp Screw 1/4-20 x .50 MTD-710-0599
...
4
Hex TT Screw 1/4-20 x .75 MTD-710-0642
...
5
Hex Tapp Screw 1/4 x .75" Lg. MTD-710-0895
...
6
Torx Mach. AB-Tapp Screw. 1/4-14 x .625 Lg MTD-710-1017
...
7
Screw 5/16-18 x .75 MTD-710-1611B
...
8
Bow-Tie Cotter Pin MTD-714-04040
...
9
Dash Panel (Elect. PTO w/ fuel level window) MTD-931-06621
...
10
Cruise Cover Y/G Style MTD-731-06643
...
11
Light Switch Cap MTD-731-07042
...
12
Control Rod MTD-747-05008
...
13
Pivot Rod MTD-747-1155
...
14
RH Dash Support Plate MTD-783-04285F-0637
...
15
LH Dash Support Plate (not shown) MTD-783-04323F-0637
...
16
Upper "G" Style Hood MTD-931-04308
...
17
Upper "Y" Style Hood Not Used in this application MTD-NA
...
18
Screw, Bos, 1/4 Dia. x .75 MTD-710-05108
...
19
Cable Tie MTD-926-0154
...
20
G Style Hood (w/side fill fuel tank) MTD-931-06538
...
21
Shoulder Screw .43 x .29, 5/16-18 MTD-738-04091A
...
22
Hood Pivot Bracket MTD-783-04606C-0637
...
23
Hood Support Bracket MTD-783-06117-0637
...
24
Tank Support Rod RH MTD-747-05049
...
25
Tank Support Rod LH MTD-747-05050
...
26
FUEL CAP (MAX 10% ETHANOL) MTD-751-0603A
...
27
Fuel Tank 2.75 Gal. (side fill) MTD-951-10573
...
28
Lens LH - Style "Y" Not Used in this application MTD-NA
...
29
Lens RH - Style "Y" Not Used in this application MTD-NA
...
30
Lens (Style G) MTD-931-06564
...
30
Reflector La bel MTD-777X43285
...
31
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
32
Miniature Lamp 12V Socket Type MTD-925-0963
...
33
Choke Plug MTD-731-1999
...
34
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
35
Throttle/Choke Cont. Cable 25" Lg. MTD-746-04364
...
36
HOUR METER/SERVICE MINDER MTD-925-06170B
...
37
Ignition Key w/Plastic Cover MTD-925-1745A
...
38
Bumper Cap MTD-731-05674
...
39
Bumper Assembly MTD-683-04219B-0637
...
40
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
41
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
42
Quick Pin 1/2" dia. x 0.50 MTD-714-04061
...
43
Fuel Tank 2.0 Gal. (top fill) Not Used in this application MTD-NA
...
44
Extension Spring (w/Electric PTO only) MTD-732-04580
...
45
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
xx
Harness (Man PTO/RMC/Hr. Meter) MTD-925-04105
...
xx
Harness (Elect. PTO/RMC/Hr. Meter) MTD-925-04104

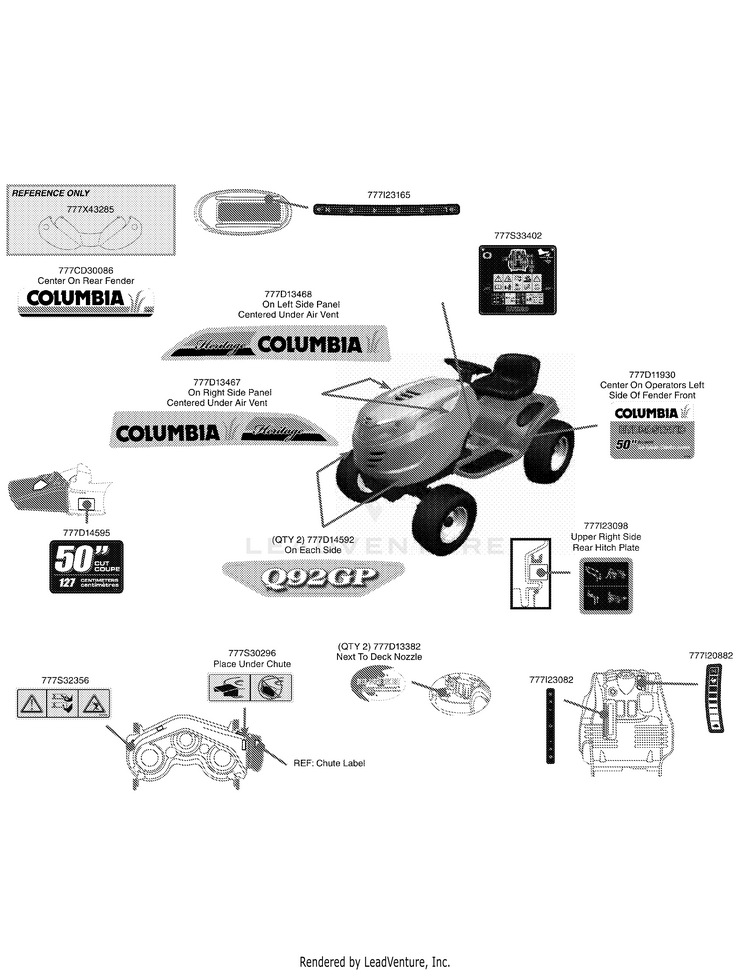

Label Map

...
...
777CD30086
LABEL-REAR FENDER COLUMBIA MTD-777CD30086
...
777D11930
LABEL-HYD 50" FNDR COLUMBIA MTD-777D11930
...
777D13382
LABEL-DECK WASH MTD-777D13382
...
777D13467
LABEL-RIDER HOOD RH COLUMBIA MTD-777D13467
...
777D13468
LABEL-RIDER HOOD LH COLUMBIA MTD-777D13468
...
777D14592
LABEL-RDR:COLUMBIA Q92GP MTD-777D14592
...
777D14595
LABEL-RDR/DK:YMACH/CAN:50/METRIC MTD-777D14595
...
777I20882
LABEL-DASH THROTTLE MTD-777I20882
...
777I22679
LABEL-CHECK ENG OIL MTD-777I22679
...
777I23082
LABEL-RIDER NX-9 GAS GUAGE MTD-777I23082
...
777I23098
LABEL-HYDRO RELEASE MTD-777I23098
...
777I23165
LABEL-RIDER RT99 DECK HT POD MTD-777I23165
...
777S33402
LABEL-RIDER NX9 HYDRO MTD-777S33402

Mower Deck

...
...

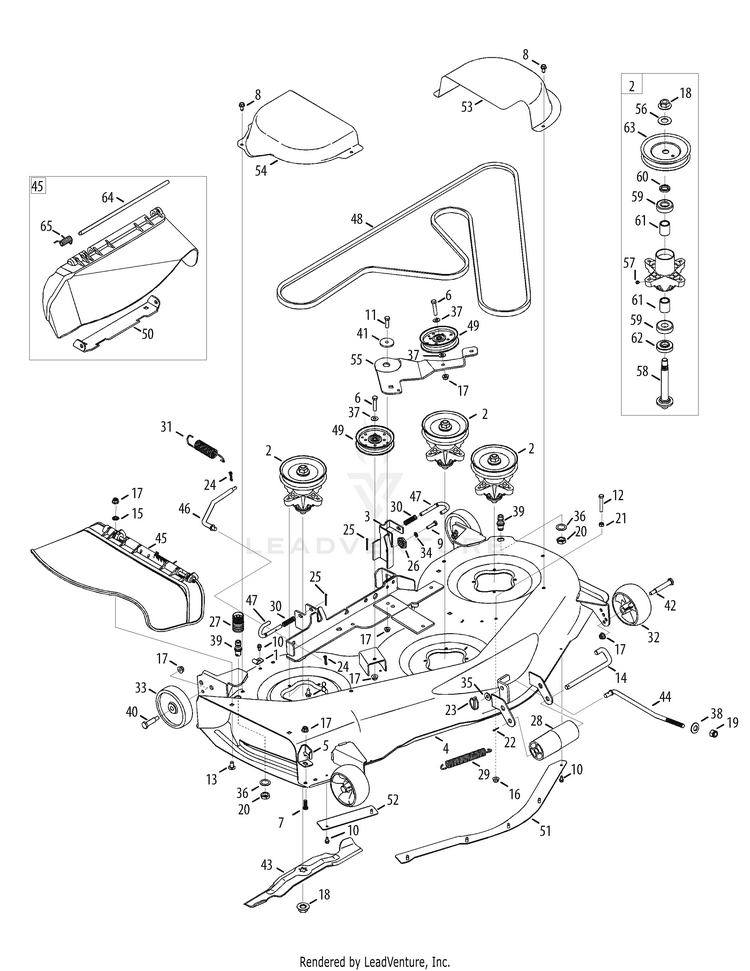

1
Retainer Hook Brkt. MTD-96606
...
2
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG MTD-918-04125C
...
3
Bracket Ass’y, Deck, Hanger LH MTD-683-0254B-0637
...
4
Deck Assembly MTD-983-04493-0606
...
5
Chute Stop Deflector MTD-703-3279
...
6
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
7
Screw, 3/8-16 x 1.0 MTD-710-04095
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
10
Hex Wash S-Tapp Screw 1/4-20 x .50 MTD-710-0599
...
11
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
12
Hex Hd Cap Screw. 5/16-18 x 2.0 Gr. 5 MTD-710-3103
...
13
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
14
Roller Pin 1/2-Inch x 7.31 Lg MTD-711-3314A
...
15
Push Nut 3/8 MTD-712-0229
...
16
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
17
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
18
HEX NUT MTD-712-0417A
...
19
Flexlock Nut 1/2-13 MTD-712-04243
...
20
Nut, Hex, M16-1.5 MTD-712-0641
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
23
Lynch Pin, .1875 MTD-753-04070
...
24
Bow Tie Cotter Pin MTD-714-04040
...
25
Cotter Pin 1/8" Dia. MTD-714-0470
...
26
Deck adjustment Gear MTD-917-04074
...
27
Water Nozzle Adap tor MTD-921-04041
...
28
ROLLER MTD-731-05679B
...
29
Extension Spring .94 x 6.74 MTD-732-0459C
...
30
Compression Spring .535 OD x 1.751 Lg. MTD-732-04652
...
31
Extension Spring 1.15 x 5.99 MTD-732-0934
...
32
Deck Wheel 5.0 MTD-734-04155
...
33
PLASTIC WHEEL 5X1.38 MTD-734-0973
...
34
L-Wash 5/16 ID MTD-936-0119
...
35
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
36
L-Washer Internal MTD-736-0225
...
37
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
38
Cupped Washer .63 x 1.25 x .18 MTD-736-0317
...
39
Port, Water MTD-737-04003D
...
40
Shoulder Bolt .498 Dia x 1.53 x 3/8-16 MTD-938-0373
...
41
Shoulder Spacer .884 x .190 MTD-738-04162C
...
42
Shoulder Screw MTD-938-3056
...
43
Blade 17.90 MTD-942-04053C
...
44
Front Deck Lift Rod MTD-747-05067A
...
45
Chute Ass’y MTD-631-04092C
...
46
Deck Sway Rod MTD-747-05279
...
47
Deck Release Pin MTD-747-1116
...
48
Belt (Deck Spindle) MTD-954-04077A
...
49
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
50
Chute Bracket MTD-783-05030
...
51
Deck Skirt, Center MTD-783-04414A
...
52
Deck Shirt RH MTD-783-04415-0637
...
53
LH Belt Cover MTD-783-05280-4028
...
54
RH Belt Cover MTD-783-05281-0606
...
55
Chute Bracket MTD-783-05030
...
56
Flat Washer .760 ID x 1.50 OD x .120 MTD-736-0315
...
57
Grease Fit ting MTD-937-3000
...
58
Spindle Shaft MTD-738-1010A
...
59
BALL BEARING MTD-941-0919B
...
60
Spacer .790 x 1.25 x 1.75 MTD-750-0160
...
61
Spacer .800 x 1.10 x 1.322 MTD-750-1000
...
62
Spacer .79 x 1.82 x .55 MTD-750-1349A
...
63
Deck Pulley MTD-756-04216
...
64
Hinge Pin .3125 x 7.96 MTD-711-04565
...
65
Torsion Spring .40 x 1.0 Order Ref #45 MTD-NA

Seat & Fender

...
...
1
Lift Shaft Ass’y MTD-683-04223-0637
...
2
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
3
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
4
Hairpin Clip MTD-714-0104
...
5
Bow-Tie Cotter Pin MTD-714-04040
...
6
E-ring .625 Shaft MTD-716-0106A
...
7
Handle Grip MTD-720-0311
...
8
Torsion Spring MTD-732-0874
...
9
Cupped Washer .375 ID x .870 OD x .063 MTD-736-0105
...
10
Shoulder Screw. .437 Dia x .47 MTD-738-0138A
...
11
Shoulder Screw MTD-738-0380
...
11
SHOULDER SCREW .625X.165X3/8-16 MTD-738-04130A
...
12
Hex Flange Bearing .630 ID MTD-941-0225
...
13
Lift Cable, 16.16 MTD-746-0968
...
14
Lift Handle MTD-747-04962A
...
15
Roller Pulley MTD-756-04331
...
16
Lift Arm RH MTD-783-04494C-0637
...
17
Lift Arm LH MTD-783-04711C-0637
...
18
SCREW 5/16-18 x .750 MTD-710-04484
...
19
HEX FLANGE NUT MTD-712-3004A
...
20
Knob MTD-720-04061
...
21
Cable Tie MTD-725-0157
...
22
Compression Spring 1.71 x 3.735 x .238 MTD-732-04561
...
23
Shld. Bolt .437" x .286" MTD-738-0296
...
24
Seat Mounting Bracket MTD-783-06049-0606
...
25
Seat Pivot Bracket MTD-783-06088A-0637
...
26
Seat Bracket, Knob adjustment MTD-783-06266-0637
...
27
Switch Retaining Clip MTD-783-06448
...
28
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
29
Hex Wash S-Tapp Screw 1/4-20 x .50 MTD-710-0599
...
30
Hex Tapp Screw 1/4 x .75" Lg. MTD-710-0895
...
31
Lift Lever Cover MTD-731-06795
...
32
Shift Lever Cover MTD-931-2104C
...
33
Grommet .4375 ID x .75 MTD-735-0690
...
34
Flat Washer .344 ID x 1.0 MTD-736-3078
...
35
Flange Spacer .3125 x .4375 x .625 MTD-750-3310
...
36
Fender (used with fender covers) MTD-783-06556
...
37
Foot Pad Clips MTD-726-3046
...
38
Foot Pad LH MTD-735-04138
...
39
Foot Pad RH MTD-735-04158
...
40
HI BACK SEAT, BLACK (3 PT) MTD-757-05232
...
41
Seat Switch MTD-925-05013
...
42
Lift Bracket 6 positions (w/Electric pto) MTD-783-06548-0637
...
43
Lift Link (46"/50") MTD-783-05546A-0637
...
44
Bow-Tie Cotter Pin (46") MTD-714-04040
...
45
Hex. Hd. Flg. Screw. 3/8-16 x .875 MTD-710-04482
...
46
Compression Spring .68 x 1.065 x .055 MTD-732-04563
...
47
Seat adjustment Lever MTD-783-06050
...
48
Cover (Hydrostatic Models only) MTD-731-1993A
...
49
Hex Wash. Hd. Screw. 5/16-18 x .75 Gr. F Nyl. MTD-710-1260A
...
50
Seat, High Back, Black (w/arm rest option) MTD-757-04090
...
51
Arm Rest (incl. R&L) MTD-757-04073
...
52
Pan TT Screw 5/16-18 x .75 MTD-710-1611B
...
53
Fender Cover LH MTD-731-2619
...
54
Fender Cover RH MTD-731-2618
...
55
SCREW 1/4-20 x 1 GR5 MTD-710-0932A
...
56
Sems Hex Nut 1/4-20 MTD-712-0271

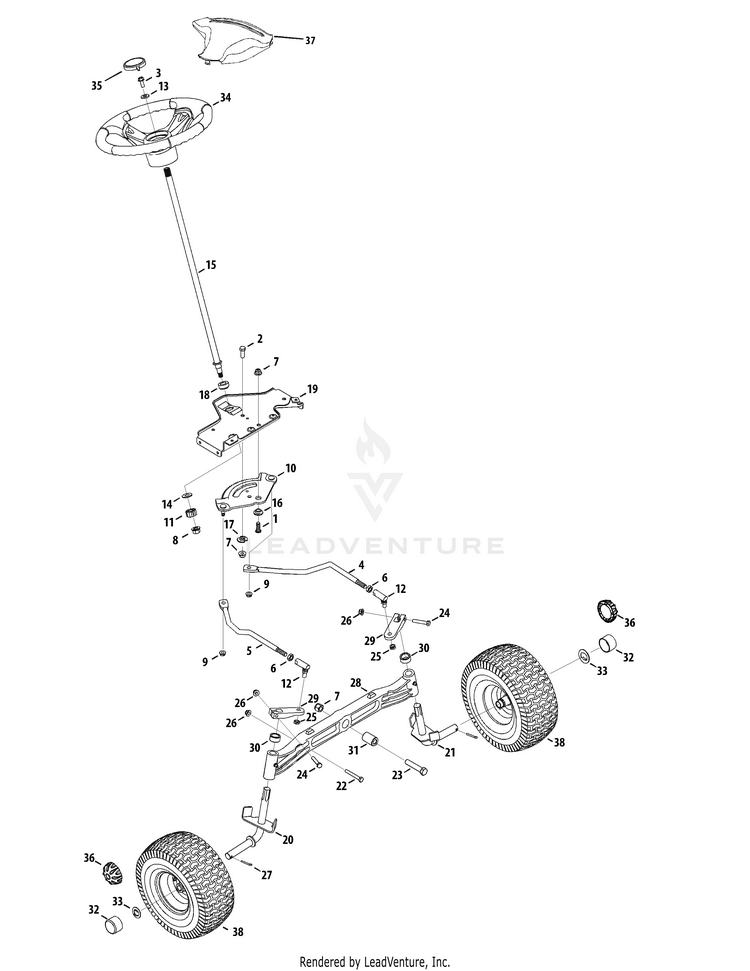

Steering Assembly

...
...
1
Screw, 3/8-16 x 1.0 MTD-710-04095
...
2
Hex Screw 3/16 x 1.00 MTD-710-0514
...
3
Hex Screw 5/16-18 x 1.00 Special MTD-710-0643
...
4
Link, Drag LH MTD-711-04998
...
5
Link, Drag RH MTD-711-04999
...
6
Hex Jam Nut 7/16-20 MTD-912-0240
...
7
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
8
Flange Lock Nut, 7/16-20 MTD-712-0459
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
Steering Gear, 11/90 Ratio MTD-717-1550F
...
11
Steering Pinion Gear MTD-717-1554
...
12
Ball Joint, 7/16 - 20 MTD-923-0448A
...
13
Fl.-Wash 3/8" 1.C) x 875" OD MTD-736-3004
...
14
Fl. Washer .510 x 1.120 x .060 MTD-736-3084
...
15
Steering Shaft .625 OD x 24.25 MTD-738-04263
...
16
Shoulder Spacer .385 x 1.25 x .3025 MTD-738-04363
...
17
Spacer .38x 1.375 Special MTD-738-04364B
...
18
Hex Flange Bearing 5/8 MTD-741-04237B
...
19
Steering Support Bracket MTD-783-06043-0637
...
20
AXLE ASSEMBLY (.750) (RH) MTD-638-04036P
...
21
Axle Ass’y LH .750 Dia. (50" Deck) MTD-938-04037
...
22
Hex Bolt 5/16-18 x 2.25 MTD-710-0395
...
23
Hex Cap Screw, 3/8-16 x 2.5 MTD-710-0859
...
24
Hex Screw 5/16-18 x 1.75" Lg. MTD-710-3180
...
25
Hex Cent L-Nut 3/8-24 MTD-912-0214
...
26
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
27
Cotter Pin 5/32" Dia. MTD-714-0162
...
28
Pivot Bar (cast) MTD-719-04413A
...
29
Steering, Block MTD-748-04278
...
30
Spacer .710 ID x .125 OD x .56 MTD-748-04068
...
31
Spacer .385 x 1.0 x 1.5075 MTD-750-05280
...
32
Hub Cap MTD-731-05674
...
33
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
...
34
STEERING WHEEL MTD-631-04008B
...
35
Steering Wheel Cap (sprig) logo MTD-731-04040
...
36
HUB CAP MTD-731-2290B
...
37
Steering Wheel Cover (w/sprigs) MTD-731-04065A
...
38
Wheel Ass'y Complete MTD-NA
...
38
Tire Only Not shown MTD-734-1727
...
38
Rim Only Not shown MTD-934-04090A-0662
...
38
Valve Not shown MTD-934-0255
...
38
BRG-BALL .754 ID x 1.750 OD Not shown MTD-941-04137A
...
38
Spacer Not shown MTD-750-04219B
...
...
...
...
Processing
