122802-3409-01 Briggs and Stratton Engine

Model: 122802-3409-01

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

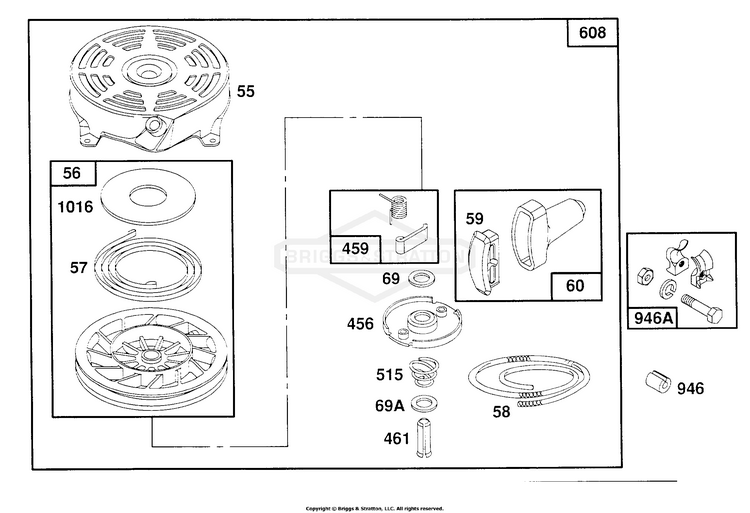

Rewind Assembly

...
...
55
HOUSING-REWIND STR BS-492831

...
56
PULLEY/SPRING ASSEMBLY (Pulley) BS-493824

...
57
SPRING, Rewind Starter BS-491889

...
58
ROPE-STARTER (Cut To Required Length) BS-280399S

...
59
INSERT-GRIP BS-396892

...
60
GRIP-STARTER ROPE BS-393152

...
69A
WASHER (Pawl Friction Plate) BS-224322

...
69
WASHER (Starter Clutch) BS-280973

...
456
PLATE, Pawl Friction BS-224321

...
459
SPRING, Ratchet BS-492833

...
461
PIN, Starter Grip BS-262626

...
515
SPRING, Friction BS-262625

...
608
STARTER-REWIND Include(s): 94128 Screw-Hex. Hd. 92987 Nut-Hex. BS-497598

...
946A
GUIDE, Rope BS-205912GS

...
946
STOP, Rope BS-691738

...
1016
SPACER (Rewind) BS-224278
...
...
...
