product name

122707-0167-01 Briggs and Stratton Engine

Model: 122707-0167-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

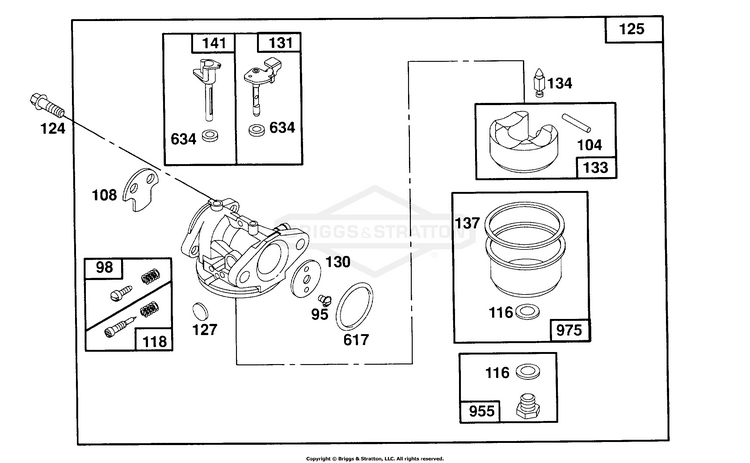

Carburetor Assembly

...
...
95
SCREW (Throttle Valve) BS-691636
...
98
KIT-IDLE SPEED (Idle Speed) (Lmt 26, 27, 28, 31) BS-398185
...
104
PIN, Float Hinge Included in Carburetor Kit-Part No. 493762 BS-797622
...
108
VALVE-CHOKE BS-691182
...
118
KIT-IDLE MIXTURE Included in Carburetor Kit-Part No. 493762 BS-493765
...
124
SCREW BS-691688
...
125
CARBURETOR (Choke) BS-494216
...
130
VALVE-THROTTLE BS-691181
...
131
SHAFT-THROTTLE BS-493267
...
133
FLOAT-CARBURETOR BS-398187
...
134
KIT-NEEDLE/SEAT Included in Carburetor Kit-Part No. 493762 BS-398188
...
141
KIT, Choke Shaft BS-494218
...
617
SEAL, O-Ring (Intake Manifold) Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937 BS-270344S
...
955
JET, Main OR 494870 Screw-Float Bowl (High Altitude) (with Carburetor I.D. No. M 26). Used After Code Date 90060300 and Before Code Date 90060400 BS-493637
...
975
BOWL, Float BS-796611
...
...
...
