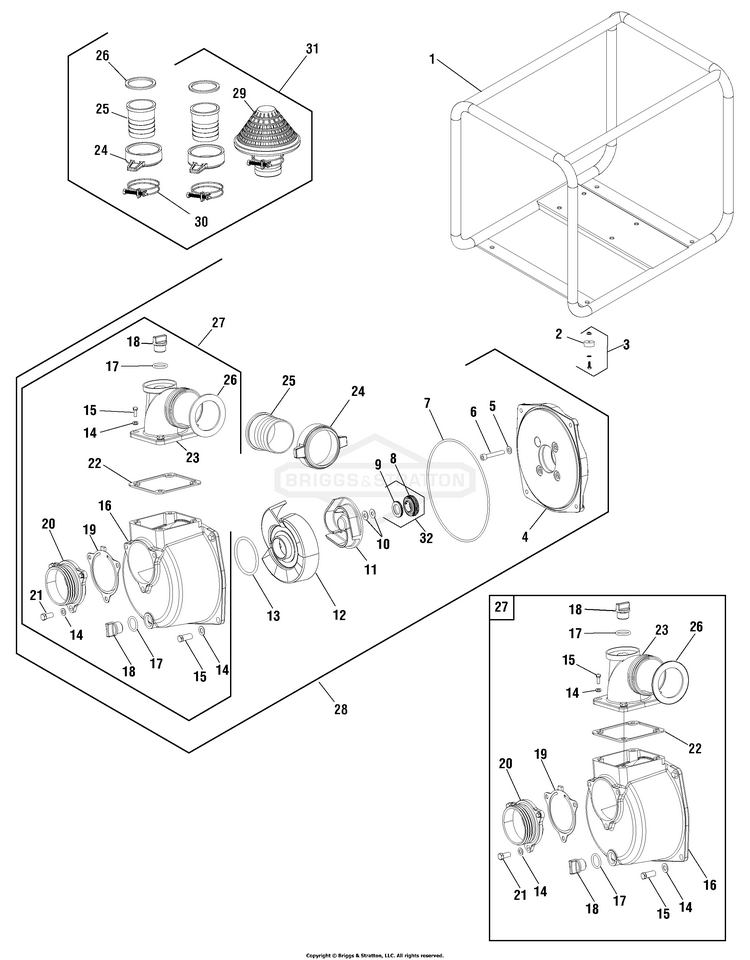

073052-00 Briggs and Stratton Generator WP-2RS, 2" Water Pump

Model: 073052-00

Save Part Not Listed?
product name

Water Pump (073052)

...
...
1
FRAME BS-708124
...
2
MOUNT, Vibration BS-708095
...
3
KIT, Vibration Mount BS-708094
...
4
SEAL PLATE BS-708142
...
5
WASHER BS-708128
...
7
O-RING, 194 x 4 BS-708129
...
8
SEAL, Ceramic BS-708114
...
9
SEAL, Mechanical BS-708115
...
10
WASHER, Shim BS-708111
...
11
IMPELLER BS-708130
...
12
VOLUTE BS-708140
...
13
O-RING, 54 x 5.50 BS-708131
...
16
HOUSING, Pump BS-708134
...
17
O-RING, 25 x 4 BS-708101
...
18
PLUG, 3/4 in. BS-708137
...
19
VALVE, Check BS-708138
...
20
FLANGE, Inlet, 2in. NPT BS-708136
...
22
GASKET, Out BS-708139
...
23
FLANGE, Outlet, 2in. NPT BS-708135
...
24
FITTING, Hose (Aluminum) BS-708149
...
25
SLEEVE, Hose (Aluminum) BS-708147
...
26
GASKET BS-708151
...
27
PUMP HEAD ASSEMBLY (Includes Ref. Nos. 14, 15, 16, 17, 18, 19, 20, 21, 22 & 23) BS-708132
...
28
PUMP ASSEMBLY (Includes Ref. Nos. 4, 5, 6, 7, 10, 11, 12, 13, 27 & 32) BS-708127
...
29
STRAINER BS-708148
...
30
CLAMP, Hose BS-708150
...
31
KIT, Coupler (Includes Ref. Nos. 24, 25, 26, 29 & 30) BS-708146
...
32
SEAL KIT (Includes Ref. Nos. 8 & 9) BS-708113
Schematic Image Zoomed
