071054-02 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch

Model: 071054-02

Save
 Don't See Your Part Listed?
product name

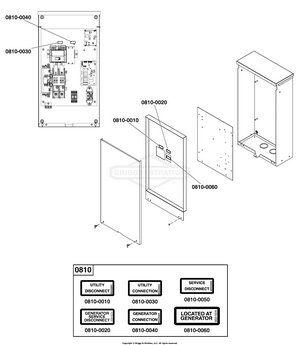

Decals Group - ATS Connections (Used After Serial No. 132027567 and Before Serial No. 133634350)

...
...
0810
DECAL SHEET - CONNECTIONS (Includes items 0810-0010 thru 0810-0060) BS-705423

Decals Group - ATS Informational (Used After Serial No. 132027567)

...
...
0110
DECAL, Wiring BS-311306GS
...
0150
DECAL, Symphony II BS-770606
...
0650
DECAL, Transfer Switch, 200 Amp BS-709510

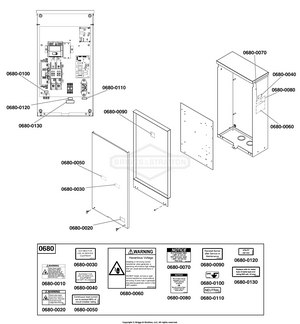

Decals Group - ATS Warning (Used After Serial No. 132027567 and Before Serial No. 133634350)

...
...
0680
DECAL SHEET - WARNINGS (Includes items 0680-0010 thru 0680-0130) BS-704420

Decals Group - ATS Warning (Used After Serial No. 133634349)

...
...
0680
DECAL SHEET - WARNINGS (Includes items 0680-0010 thru 0680-0220) BS-770133

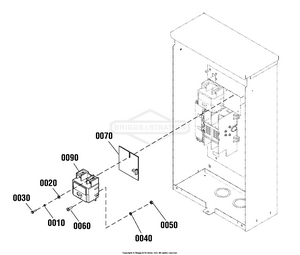

Optional Accessory - Circuit Breaker Group

...
...
0070
INSULATION BS-192879GS
...
0090
BREAKER, Circuit, 200A (Connect to Generator Power) BS-318878GS
...
0120
WIRE (Not Illustrated) BS-706843
...
0130
WIRE (Not Illustrated) BS-706844

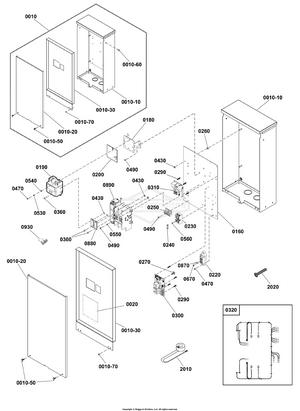

Transfer Switch - Hingeless Enclosure

...
...
0010-20
DOOR BS-705952
...
0010-50
SCREW BS-315108GS
...
0010-60
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0010-70
SCREW BS-B5763GS
...
0020
INSULATION, Dead Front BS-193664GS
...
0180
BRACKET BS-770433
...
0190
BREAKER, Circuit, 200A BS-192065GS
...
0200
INSULATION, Circuit Breaker BS-192879GS
...
0220
TERMINAL, Neutral (Incl. Ref. Nos. 0470, 2020) BS-192696GS
...
0230
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0240
FUSE, 10 Amp 600v BS-205110GS
...
0250
LUG BS-84004498
...
0260
NUT, Hex, 3/8-16 BS-22241GS
...
0270
SPACER, PCB Board, 1/2" BS-197979GS
...
0290
SUPPORT, Locking, Crct Brd BS-202841GS
...
0300
BOARD-CIRCUIT BS-771701
...
0310
BOARD, Circuit BS-310443GS
...
0320
HARNESS, Wiring, ATS BS-201285GS
...
0430
NUT, HEX KEPS, 1/4-20 BS-703061
...
0470
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0490
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
0530
WASHER, Lock, #10 BS-22152GS
...
0540
WASHER, Flat, #10 - M5 BS-23897GS
...
0550
WASHER BS-23762GS
...
0560
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS
...
0870
ADAPTER, Male Disconnect BS-74138GS
...
0880
BAR-BUS BS-319267GS
...
0890
SWITCH, TRANSFER BS-84002607
...
2010
TRANSFORMER BS-208106GS
...
2020
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447
...
--
DECAL, Power Delay Notice (Optional Accessory - Not Included) BS-317609GS
...
--
KIT, Circuit Breaker (Optional Accessory - Not Included) BS-6309

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
