030579-00 Briggs and Stratton Generator 5,000 Watt

Model: 030579-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

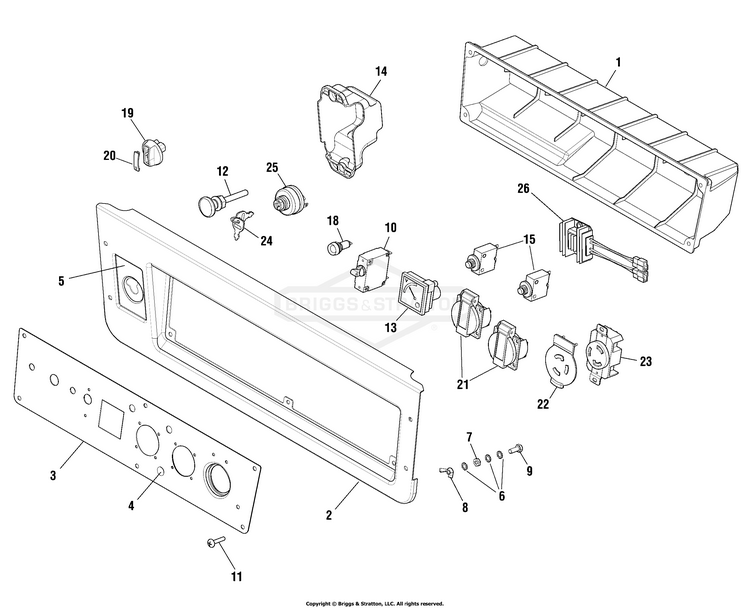

Control Panel (319208)

...
...
1
BOX-CONTROL PANEL BS-703016
...
2
FRONT PANEL BS-703015
...
3
PLATE BS-703212
...
4
DECAL BS-703262
...
5
DECAL BS-703261
...
6
WASHER, Shakeproof BS-23364GS
...
8
NUT-WING BS-87680GS
...
10
BREAKER BS-703020
...
12
CHOKE CABLE BS-703259
...
13
VOLTMETER BS-703021
...
14
COVER-VALVE BS-703025
...
15
BREAKER-CIRCUIT 16A BS-703023
...
18
SWITCH-OIL BS-703019
...
19
KNOB BS-703026
...
20
COVER-KNOB BS-703027
...
21
OUTLET BS-703022
...
22
COVER-OUTLET BS-703259
...
23
OUTLET BS-703197
...
24
KEY BS-703295
...
25
SWITCH BS-703111
...
26
CHARGER BS-703260
...
--
FUSE (Not Illustrated) BS-703110

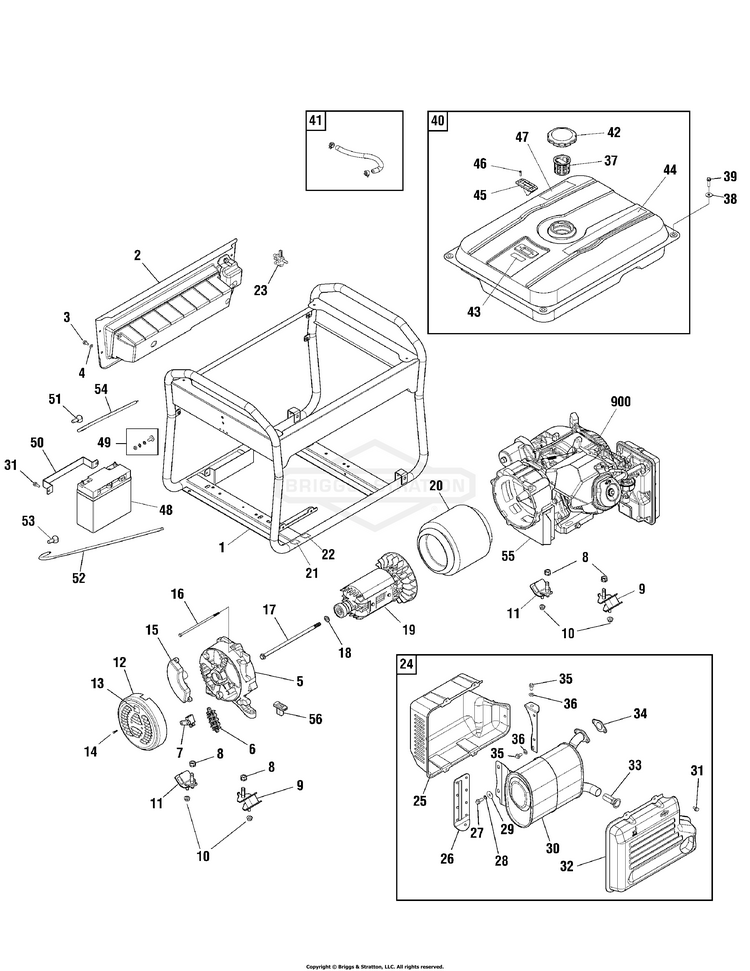

Main Unit (319207)

...
...
1
CRADLE (Includes Ref. Nos. 38 & 39) BS-703006
...
2
PANEL-CONTROL BS-703220
...
3
BOLT BS-90388GS
...
4
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
5
CARRIER-BEARING BS-312866GS
...
6
TERMINAL BLOCK BS-703075
...
7
BRUSH BS-312904GS
...
8
NUT BS-52859GS
...
9
MOUNT-VIBRATION BS-703041
...
10
NUT BS-67989GS
...
11
MOUNT-VIBRATION BS-703042
...
12
COVER-REAR BEARING BS-312870GS
...
13
DECAL BS-315636GS
...
14
SCREW BS-312909GS
...
15
VOLTAGE REGULATOR BS-703310
...
16
BOLT BS-703012
...
17
BOLT BS-703011
...
19
ROTOR BS-703008
...
20
STATOR BS-703009
...
21
DECAL BS-315634GS
...
22
DECAL BS-315635GS
...
23
FUEL VALVE BS-703024
...
24
MUFFLER ASSEMBLY BS-702992
...
25
COVER-MUFFLER, BACK BS-702994
...
26
GASKET BS-702996
...
30
MUFFLER BS-702993
...
32
COVER-MUFFLER, FRONT BS-702995
...
33
ARRESTOR-SPARK BS-703189
...
34
GASKET, Exhaust BS-797770
...
36
WASHER BS-201363GS
...
37
FILTER BS-703033
...
40
TANK-FUEL BS-703030
...
41
LINE, Fuel (Cut to Fit) BS-791745
...
42
CAP-FUEL BS-703032
...
43
DECAL BS-703264
...
44
DECAL BS-703265
...
45
GAUGE-FUEL BS-703039
...
47
DECAL BS-315637GS
...
48
BATTERY BS-316345GS
...
49
KIT-HARDWARE, BATTERY BS-315546GS
...
50
BRACKET-BATTERY BS-703102
...
51
COVER-BATTERY BS-703105
...
52
WIRE BS-703107
...
53
COVER-BATTERY BS-703104
...
54
WIRE BS-703106
...
55
BLOW HOUSING BS-703112
...
56
COVER-RUBBER ALT BS-703013
...
--
MANUAL-OPERATOR'S (Not Illustrated) BS-381299GS
...
--
PLUG-SCHUKO 16A, 250V (Not Illustrated) BS-704365
...
--
PLUG-TWIST LCK, 30A, 250V (Not Illustrated) BS-704368

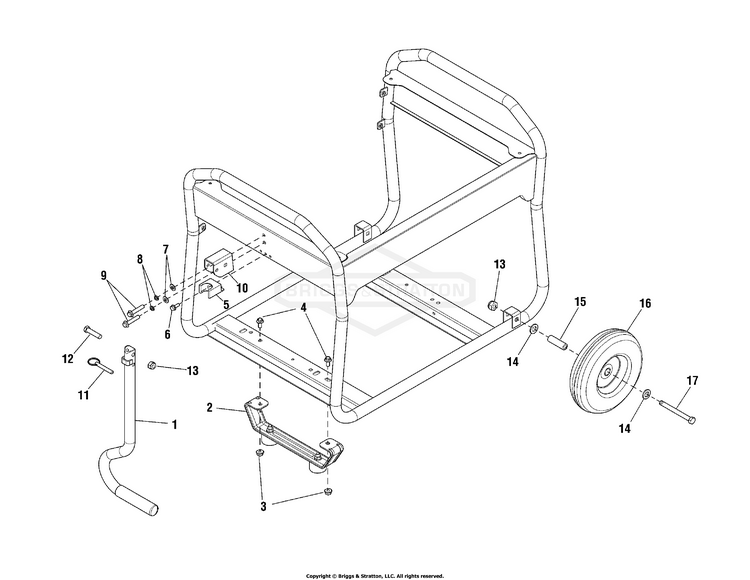

Wheel Kit (319098)

...
...
1
HANDLE BS-703243
...
2
SUPPORT-LEG BS-703002
...
5
HOLDER-HANDLE BS-702998
...
9
BOLT BS-57821GS
...
10
BRACKET-HANDLE BS-702997
...
11
PIN-HANDLE BS-703000
...
12
BOLT BS-57642GS
...
13
NUT BS-52859GS
...
15
SLEEVE-AXLE BS-703003
...
16
WHEEL BS-703005
...
17
BOLT-AXLE BS-703004
...
--
KIT-WHEEL, COMPLETE BS-6258

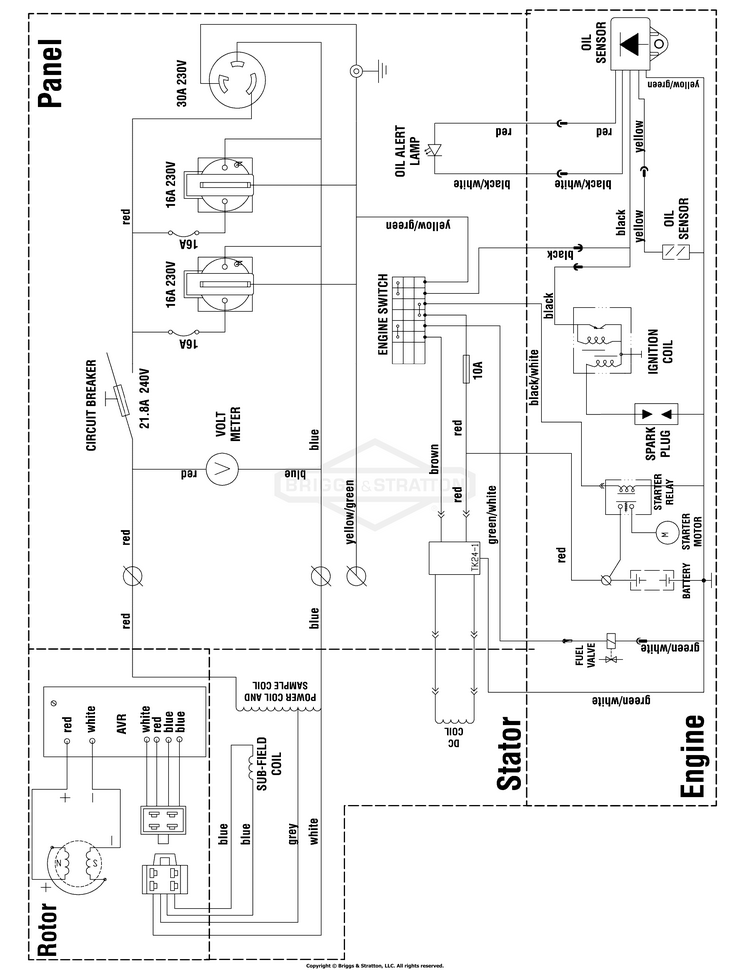

Wiring Diagram (80003151_030579)

...

No Parts Available for this Schematic
