030470-01 Briggs and Stratton Generator 7,000 Watt

Model: 030470-01

Save Part Not Listed?
product name

Control Panel (311832_7kw)

...
...
1
PANEL-CONTROL BS-312001GS
...
2
BOX-CONTROL PANEL BS-312002GS
...
3
COVER-OUTLET BS-312030GS
...
4
COVER-OUTLET BS-312031GS
...
5
METER-HOUR BS-202602GS
...
6
SWITCH, Key BS-692318
...
--
SET, Key BS-691959
...
7
Breaker, Circuit, 30A, 2P BS-202033GS
...
8
OUTLET, 120/240V Locking, 30A BS-43437GS
...
9
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
10
CABLE-CHOKE BS-312034GS
...
11
BREAKER-CIRCUIT, 20A BS-317605GS
...
12
JACK-COAXIAL BS-312004GS
...
13
DECAL BS-311565GS
...
14
SCREW BS-703804
...
15
TRIM-EDGE BS-312033GS
...
16
DECAL BS-313233GS
...
20
BOOT, Breaker Circuit BS-191481GS
...
21
CAP, Breaker, Circuit BS-84198GS
...
22
GROMMET BS-319530GS
...
23
BOOT-RUBBER JACK BS-312687GS
...
24
GROMMET BS-319529GS
...
25
ASSY-CONTROL PANEL BS-706429

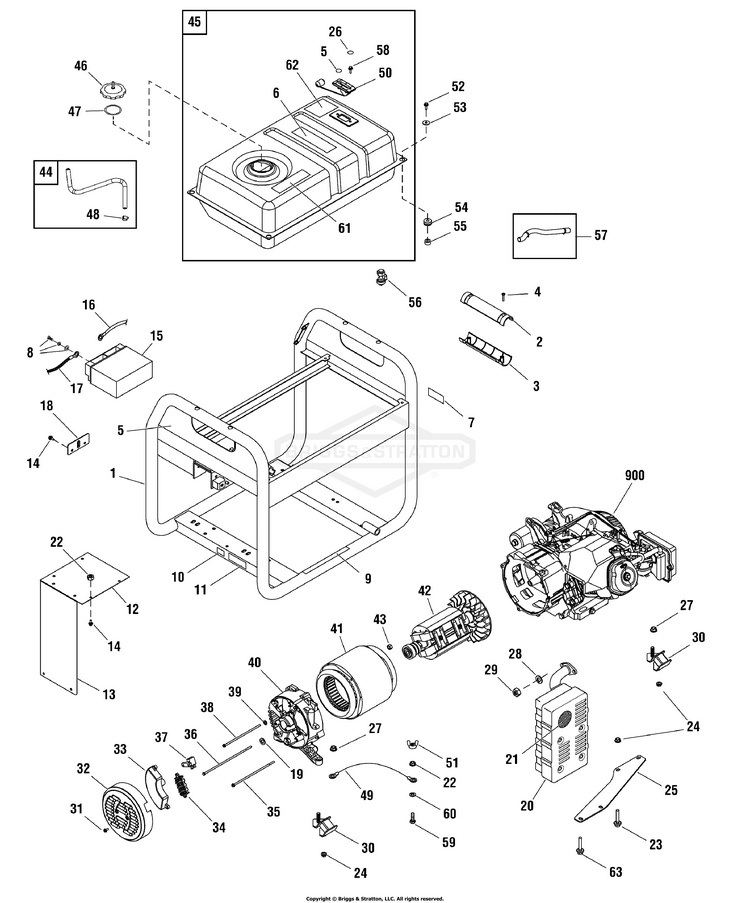

Main Unit (316435)

...
...
1
CRADLE BS-312007GS
...
2
GRIP, Handle BS-312008GS
...
3
GRIP, Handle BS-312009GS
...
4
PPHMS, M5 - 0.8 x 20 BS-75477GS
...
5
DECAL BS-313461GS
...
6
Decal, Warning, French BS-194984GS
...
7
DECAL, Fuel Shut Off BS-197798GS
...
8
KIT, Hardware, Battery Terminal BS-315546GS
...
9
DECAL, Caution Hot Muffler BS-200310GS
...
10
DECAL, Ground, Green BS-B4986GS
...
11
DECAL, Neutral Bonded,Frnch BS-200311GS
...
12
HEATSHIELD BS-312020GS
...
13
HEATSHIELD BS-312019GS
...
14
BOLT BS-209775GS
...
15
BATTERY BS-316345GS
...
16
CABLE-BATTRY, RED BS-312014GS
...
17
CABLE-BTTRY, BLACK BS-312026GS
...
18
PLATE-BATTERY BS-311983GS
...
19
WASHER BS-312045GS
...
20
MUFFLER BS-192569GS
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
Nut, M6, Flange BS-197861GS
...
23
SCREW BS-311987GS
...
24
NUT, M8 Flange Serrated BS-67989GS
...
25
SUPPORT-MUFFLER BS-311985GS
...
26
DECAL BS-313462GS
...
27
NUT BS-193747GS
...
28
WASHER, Lock BS-22129GS
...
29
NUT, M8 - 1.25 BS-45771GS
...
30
MOUNT-VIBRATION BS-319451GS
...
31
BOLT, M5 - 6 x 12 BS-207824GS
...
32
END COVER BS-209428GS
...
33
VOLTAGE REGULATOR BS-312038GS
...
34
TERMINAL BLOCK BS-312041GS
...
35
BOLT BS-312042GS
...
36
BOLT BS-312044GS
...
37
BRUSH ASSEMBLY BS-209441GS
...
38
BOLT BS-312046GS
...
39
WASHER, Lock, M5 BS-49226GS
...
40
CARRIER-BEARING BS-708704
...
41
STATOR BS-312035GS
...
42
ROTOR BS-708718
...
43
NUT, M5 BS-207878GS
...
44
HOSE, Vapor (cut to fit) BS-315017GS
...
45
TANK, Fuel BS-316602GS
...
46
CAP, Fuel BS-314950GS
...
47
GASKET, Fuel Cap BS-209939GS
...
48
CLAMP BS-314955GS
...
49
WIRE BS-312040GS
...
50
GAUGE, Fuel BS-311992GS
...
51
NUT, M6 - 1.0 Wing BS-87680GS
...
52
SCREW BS-590644
...
53
WASHER BS-312005GS
...
54
GROMMET BS-312006GS
...
55
SPACER BS-312010GS
...
56
VALVE, Fuel BS-209417GS
...
57
LINE, Fuel (Cut to Fit) BS-791745
...
58
Screw, M5 x 10 BS-197896GS
...
59
HANDLE BS-84010594
...
60
WASHER BS-22097GS
...
61
DECAL BS-312728GS
...
62
DECAL, Warning, CO BS-202997GS
...
63
SCREW, w/Lock Washer BS-66476GS
...
--
FUSE (Not Illustrated) BS-316742GS
...
--
CHARGER, Battery (Not Illustrated) BS-84002790

Wheel Kit (312167)

...
...
1
HANDLE BS-311999GS
...
2
GRIP-HANDLE BS-311998GS
...
3
GRIP-HANDLE BS-312000GS
...
4
SCREW-M5-0.8 x 20 BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER-NYLON M8 BS-187104GS
...
7
NUT-M8-1.25 NYLOK BS-49820GS
...
8
BOLT-M5-6 x 16 BS-207825GS
...
9
KNOB BS-312016GS
...
10
SPRING BS-312015GS
...
11
PIN BS-312017GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
NUT-M6 FLANGE BS-52857GS
...
14
SCREW-M8 x 16 BS-42568GS
...
15
SUPPORT-LEG BS-311994GS
...
16
WASHER-M10 LOCK BS-46526GS
...
17
NUT-M10 LOCK BS-45772GS
...
18
WASHER BS-691113
...
19
HUBCAP BS-312022GS
...
20
WHEEL BS-312021GS
...
21
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
22
AXLE BS-312023GS
