030430-04 Briggs and Stratton Generator 5,500 Watt

Model: 030430-04

Save Part Not Listed?
product name

Alternator (206497)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Ref. No. 8) BS-190032GS
...
3
STATOR BS-206562GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308CGS
...
6
ASSY-BRUSH BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN BS-81917GS

Control Panel (209224)

...
...
1
PANEL, Control BS-201571GS
...
2
COVER, Outlet BS-197472GS
...
3
BOX, Control Panel BS-201572GS
...
4
OUTLET, 120V 20A BS-197731GS
...
5
PALNUT, 3/16 BS-189164GS
...
6
LAMP, LED BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
--
BOOT, Breaker Circuit (Not Illustrated) BS-191481GS
...
9
OUTLET, 120/240V TL30A BS-43437GS
...
10
CONNECTOR, 6 Pin BS-201678GS

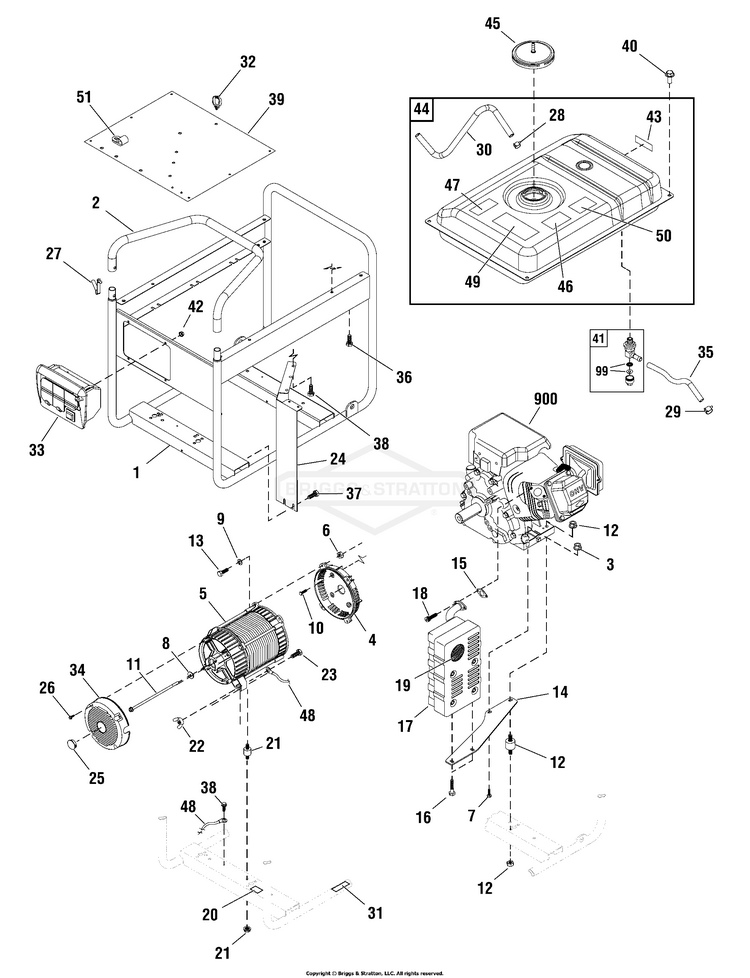

Main Unit (319401)

...
...
1
CRADLE (Includes Ref. Nos. 20 & 31) BS-313583BUGS
...
2
HANDLE BS-209287BUGS
...
3
NUT BS-67989GS
...
4
ADAPTER, Engine BS-190220GS
...
7
SCREW BS-195398GS
...
8
WASHER BS-96796GS
...
10
SCREW BS-190274BGS
...
11
SCREW BS-187365FGS
...
12
MOUNT, Vibration BS-195478GS
...
14
BRACKET BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SCREW BS-204885GS
...
19
ARRESTOR, Spark BS-83083GS
...
20
DECAL BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
NUT BS-87680GS
...
24
HEATSHIELD BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE BS-74908GS
...
27
PIN BS-207525GS
...
28
CLAMP BS-316173GS
...
29
CLAMP, Hose BS-691038
...
30
HOSE (Cut to Fit) BS-315826GS
...
31
DECAL BS-196830GS
...
32
CLIP BS-691010
...
33
PANEL, Control BS-310763GS
...
34
COVER, Rear Bearing BS-195422GS
...
35
LINE, Fuel (Cut to Fit) BS-791745
...
36
SCREW BS-192376GS
...
37
CRIMPTITE BS-56893GS
...
38
SCREW BS-B2153GS
...
39
HEAT SHEILD BS-208183GS
...
40
BOLT BS-199256GS
...
41
KIT, Fuel Valve BS-192980GS
...
42
PALNUT, 3/16 BS-189164GS
...
43
DECAL BS-197798GS
...
44
TANK, Fuel BS-317486GS
...
45
CAP, Fuel Gauge BS-314951GS
...
46
DECAL BS-202997GS
...
47
DECAL BS-312728GS
...
48
WIRE, Ground BS-195373GS
...
49
DECAL BS-194799GS
...
50
DECAL BS-312727GS
...
51
CLAMP BS-315831GS
...
99
VALVE, Fuel BS-310574GS
...
--
CORDSET (Not Illustrated) BS-206775GS
...
--
STABILIZER, Fuel (Not Illustrated) BS-189208GS

Wheel Kit (207269)

...
...
1
WHEEL BS-207175GS
...
3
AXLE BS-191267RGS
...
4
E-RING BS-703977
...
6
NUT BS-67989GS
...
7
SUPPORT, Leg BS-189522ZGS
...
--
KIT, Hardware (Not Illustrated) BS-196157GS

Wiring Diagram (204050WD)

...

No Parts Available for this Schematic

Wiring Schematic (204050WS)

...

No Parts Available for this Schematic
