product name

030383-0 Briggs and Stratton Generator 10,000 Watt

Model: 030383-0

Save Part Not Listed?
product name

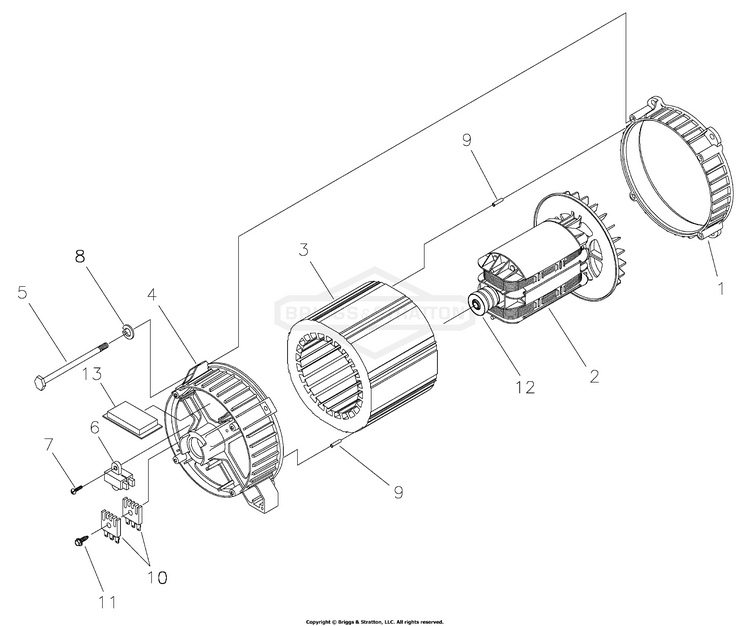

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
Assy., Rotor Includes #12 BS-191952GS
...
3
Stator BS-205062GS
...
4
RBC, (with O-Ring p/n 189197GS) p/n 189197GS BS-193336GS
...
5
BOLT BS-66449LGS
...
6
Assy., Holder, Rectifier/Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
9
Pin, Roll, 4mm x 10 BS-81917GS
...
10
Rectifier, Battery Charge BS-65795GS
...
11
Taptite, M5 - 0.8 x 30 BS-66849CGS
...
12
Bearing BS-65791GS
...
13
BOARD, Circuit, System Control BS-205858GS

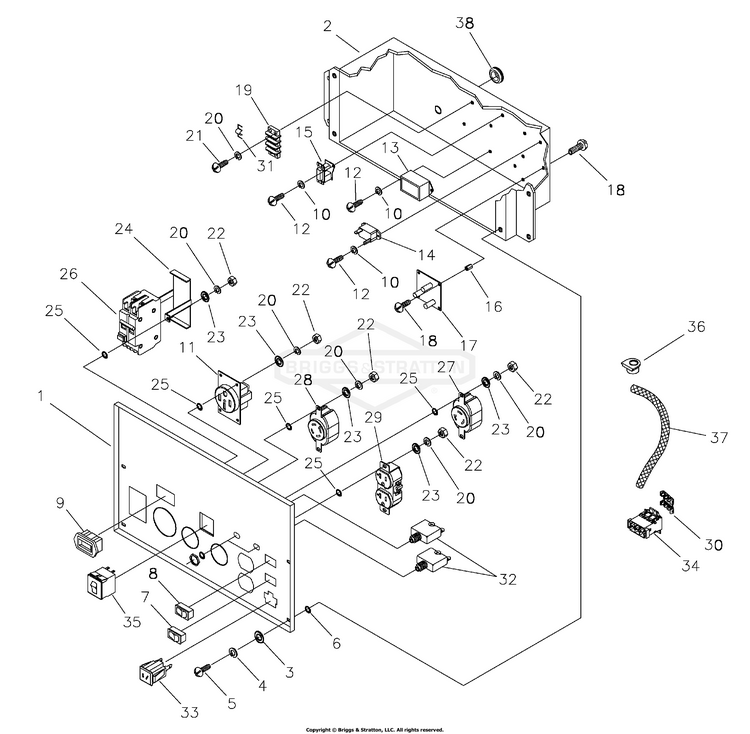

Control Panel

...
...
1
Panel, Control BS-B204581GS
...
2
Box, Control Panel BS-201864GS
...
7
Switch, Eng, Run-Stop BS-78653GS
...
8
Switch, Rocker BS-192855GS
...
9
METER-HOUR BS-202602GS
...
11
Receptacle BS-B4262GS
...
13
Thermal, Relay BS-77314GS
...
14
Breaker, Circuit, 10A, 12V BS-87962GS
...
15
Transformer, Idle Control BS-84028GS
...
16
Standoff, Hex, 3/4" BS-64525GS
...
17
PCB, Idle Control, 10KW BS-195406GS
...
19
Terminal, Block BS-92953GS
...
24
Bracket, GFCI Breaker BS-192931GS
...
26
Breaker, Circuit, GFCI, 50A BS-192828FGS
...
27
OUTLET-120V TL30A BS-705932
...
28
Outlet, 120/240V, 30A BS-43437GS
...
29
Outlet, 120V, 20A, Duplex BS-68759GS
...
30
Strip, Dual-Row BS-199532GS
...
31
Jumper, Terminal Block BS-193597GS
...
32
Breaker, Circuit, 20A With Hardware BS-202394GS
...
33
Outlet, 12VDC, Snap BS-90418GS
...
34
PLUG, Dual-Row, Housing BS-199528GS
...
35
Breaker, Circuit, 30A, 2P BS-202033GS
...
36
Boot, Rubber Wire Outlet BS-188632GS
...
37
Tubing, Fabric BS-201171GS
...
38
Grommet BS-62265GS

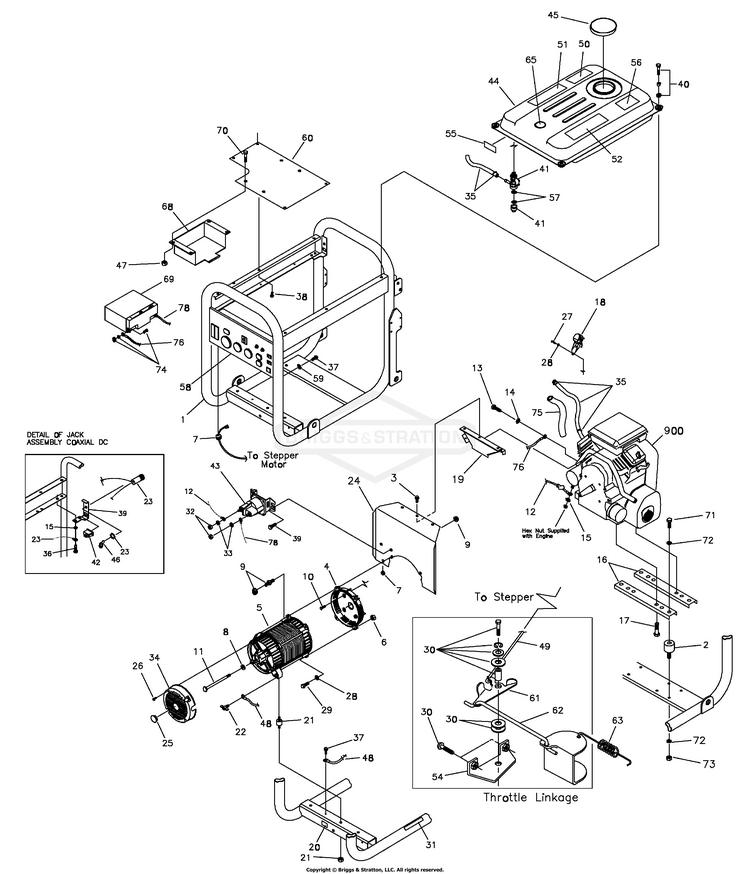

Main Unit

...
...
1
Cradle Includes Items 20 & 31 BS-B204637GS
...
2
Mount, Vibration BS-38353GS
...
3
Crimptite, 10-24 x 1/2 BS-56893GS
...
4
Adapter, Engine BS-190220GS
...
5
Assy., Alternator Alternator BS-~NSP
...
7
Grommet BS-62265GS
...
8
Washer, 8.4 x 22.2 x 3 BS-96796GS
...
9
Kit, Alt To Heat Shield Hardware BS-194208GS
...
10
SBHCS, 3/8-16 x 1" BS-190274BGS
...
11
HHCS 5/16-24 x 10.28 BS-187365DGS
...
12
Wire, #16, Red BS-189302SGS
...
16
Support, Engine BS-B77304GS
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
Assy, Stepper Motor BS-195404GS
...
19
Support, Heatshield BS-J93074GS
...
20
Decal, Ground BS-B4986GS
...
21
Kit, Vibration Mount BS-194155GS
...
22
Screw, Wing M6 - 1.0 x 16 BS-86494GS
...
23
Assy., Jack Coax, DC BS-201348GS
...
24
Assy., Heat Shield BS-194950GS
...
25
Cap BS-191190GS
...
26
Taptite, M5 - 0.8 x 10 BS-74908GS
...
30
Kit, Throttle Linkage Hardware BS-194543GS
...
31
Decal, Exhaust Warning BS-200310GS
...
34
Cover, Rbc Plastic w/Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
36
Screw, M6 - 1 x 12, Taptite BS-90388GS
...
37
Screw, Self-Driller, 12-14 x 7/8 BS-B2153GS
...
38
Screw, 12 - 24 x 1/2 Thread Forming BS-192376GS
...
39
SCREW, HEX, 1/4-20X.5 BS-704130
...
40
Kit, Fuel Tank Hardware Includes Qty 4 BS-198221GS
...
41
VALVE, Fuel BS-310574GS
...
42
Switch, Rocker BS-87799GS
...
43
SOLENOID, Starter BS-691656
...
44
Assy., Tank Fuel Includes Items 41, 50, 51, 52, 55, 56 & 65 BS-196035GS
...
45
Cap, Tank Fuel BS-189135GS
...
46
Lug BS-192351GS
...
47
Locknut, M6 BS-77395GS
...
48
Wire, Ground BS-195373GS
...
49
Linkage, Stepper Motor To Bell Crank BS-95920GS
...
50
Decal, Instruction, Fuel BS-188333GS
...
51
Decal, Warning BS-194984GS
...
52
Decal, Operating Instructions BS-94480GS
...
53
Bracket, Switch/Jack BS-200816GS
...
54
Plate, Adjust BS-95349GS
...
55
Decal, Fuel Shutoff BS-197797GS
...
56
Decal, Warning, CO BS-202997GS
...
57
VALVE, Fuel BS-310574GS
...
58
Assy. Control Panel BS-204578GS
...
60
Support, Tray Battery BS-J193512GS
...
61
Bracket, Bell Crank BS-95348GS
...
62
Linkage, Bell Crank To Throttle BS-95921GS
...
63
Spring BS-96717GS
...
65
Gauge, Gas BS-192724GS
...
68
Tray, Battery BS-192985GS
...
69
Battery BS-193043GS
...
74
Kit, Hardware Battery BS-193347GS
...
75
SHIELD, Heat BS-280866
...
76
Wire, #55 Black BS-185939TGS
...
78
Wire, #13 Red BS-189302RGS
...
xx
Manual, Operator's Parts Not Illustrated BS-204730GS
...
xx
Bottle, Oil Parts Not Illustrated BS-BB3061GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-100005
...
xx
CHARGER, Battery Parts Not Illustrated BS-84002790
...
xx
Decal, Family, CA EVP Parts Not Illustrated BS-202179GS
...
xx
Kit, Decal Service Parts Not Illustrated BS-205617GS
...
xx
Plug, 120/240V, 30A 4P Parts Not Illustrated BS-43438GS
...
xx
Plug, 125V, 30A 3P Parts Not Illustrated BS-100523GS
...
xx
Cable, Battery Charge Parts Not Illustrated BS-65787GS
...
xx
SCREW Parts Not Illustrated BS-690661
...
xx
ARRESTOR, Spark Parts Not Illustrated BS-794945
...
xx
Assy., Muffler Parts Not Illustrated BS-692099
...
xx
Bracket, Muffler Parts Not Illustrated BS-691513
...
xx
Screw Parts Not Illustrated BS-692056
...
xx
Clamp, Muffler Parts Not Illustrated BS-690898
...
xx
SCREW Parts Not Illustrated BS-841233

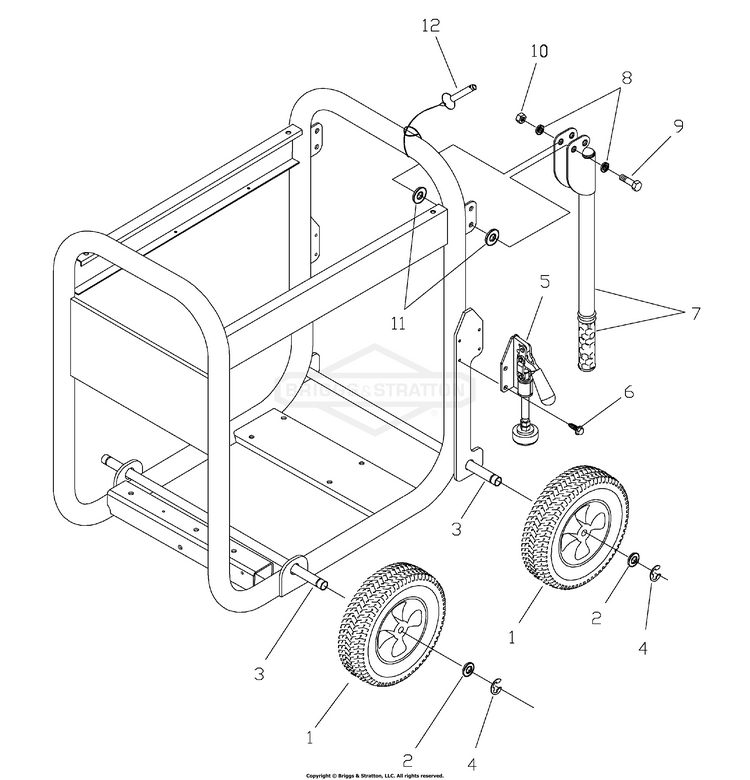

Wheel Kit

...
...
1
Wheel BS-203273GS
...
3
Axle BS-191267TGS
...
4
E-RING BS-703977
...
5
Assy, Brake BS-205135GS
...
7
Assy, Handle w/Grip BS-B193200GS
...
xx
Grip BS-198669GS
...
12
Pin, Handle BS-B4135GS
...
xx
Subkit, Hardware Items Not Illustrated BS-205183GS

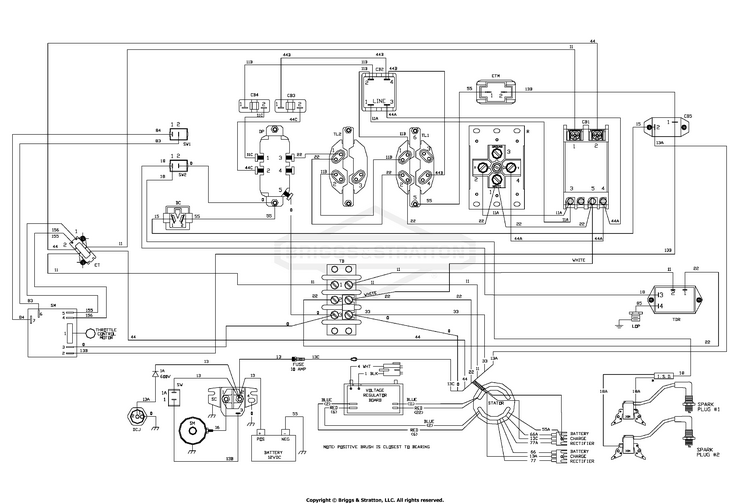

Wiring Diagram

...

No Parts Available for this Schematic

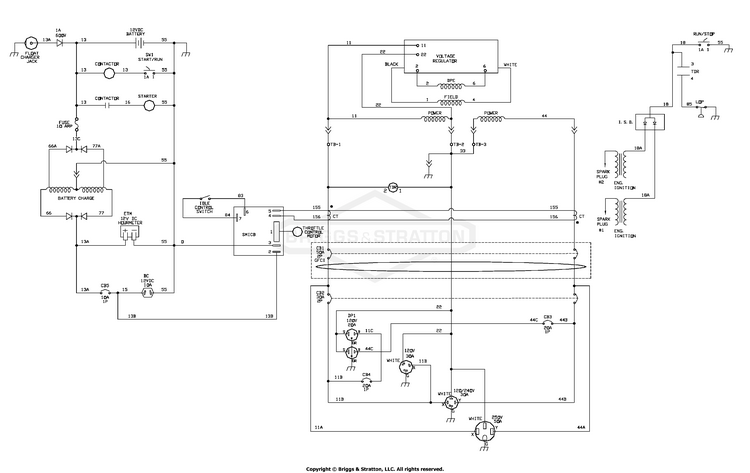

Wiring Schematic

...

No Parts Available for this Schematic
