030325-0 Briggs and Stratton Generator 5,550 Watt

Model: 030325-0

Save Part Not Listed?
product name

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ASSY, Rotor (Includes Item 12) BS-191043GS
...
3
STATOR BS-191042AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 130 SEMS BS-86308CGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY, Wire, Ground BS-193428AGS
...
11
TAPTITE, M5 x 0.8 x 10 BS-74908GS
...
12
BEARING BS-65791GS

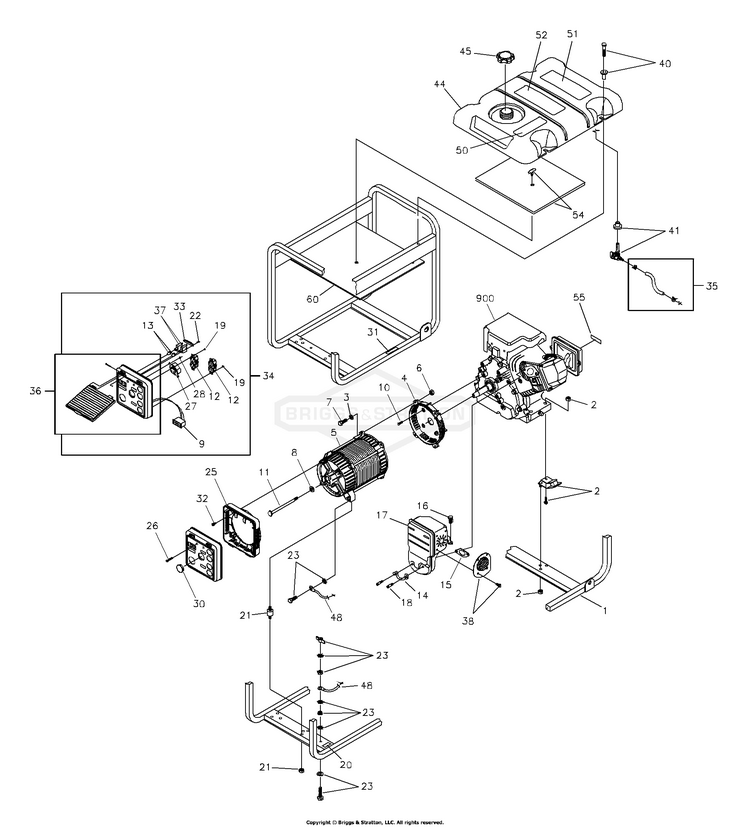

Main Unit

...
...
1
KIT, Cradle BS-J193438GS
...
2
KIT, Vibration Mount, 45° BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY, Alternator (see "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
9
HOUSING, Receptacle BS-22695GS
...
10
SBHCS, 3/8-16 x 1.0 Lg. BS-190274BGS
...
11
HHCS, 5/16-24 x 7 BS-47480GS
...
12
OUTLET, 120V, 20A BS-68759GS
...
13
CAP, Circuit Breaker BS-84198GS
...
14
TAB, Locking BS-695400
...
15
GASKET, Muffler BS-794818
...
16
SCREW BS-695312
...
17
MUFFLER BS-794949
...
18
SCREW, Shoulder BS-695399
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
23
KIT, Grounding Hardware BS-194154GS
...
25
ADAPTER PANEL BS-191427GS
...
27
OUTLET, 120/240V, 30A BS-43437GS
...
30
CAP BS-191190GS
...
31
DECAL, Hot Muffler BS-196830GS
...
32
TAPTITE, M5-0.8 x 10 BS-74908GS
...
33
BAR, Retaining BS-93857GS
...
34
ASSY, Control Panel BS-192023GS
...
35
LINE, Fuel BS-791745
...
36
ASSY, Cover Panel BS-194152GS
...
37
BREAKER-CIRCUIT 20A BS-209872GS
...
38
ARRESTOR, Spark BS-794945
...
40
KIT, Fuel Tank Hardware (Includes Qty of 4) BS-194398GS
...
41
KIT, Valve, Fuel BS-192980GS
...
44
ASSY, Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-200883GS
...
45
CAP, Fuel Tank BS-846987
...
48
WIRE, Ground BS-186790EGS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-197445GS
...
52
DECAL, Start Instructions BS-189235GS
...
54
KIT, Insulation w/ Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-197798GS
...
60
SHIELD, Heat BS-193452GS
...
MANUAL, Operator's Not Illustrated BS-200784GS
...
--
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
Set, Cord, 30A Not Illustrated BS-191895DGS
...
KIT, Decal Srv Not Illustrated BS-200882GS
...
Front Draw Bar w/Spindles-RH Side Not Illustrated BS-100126

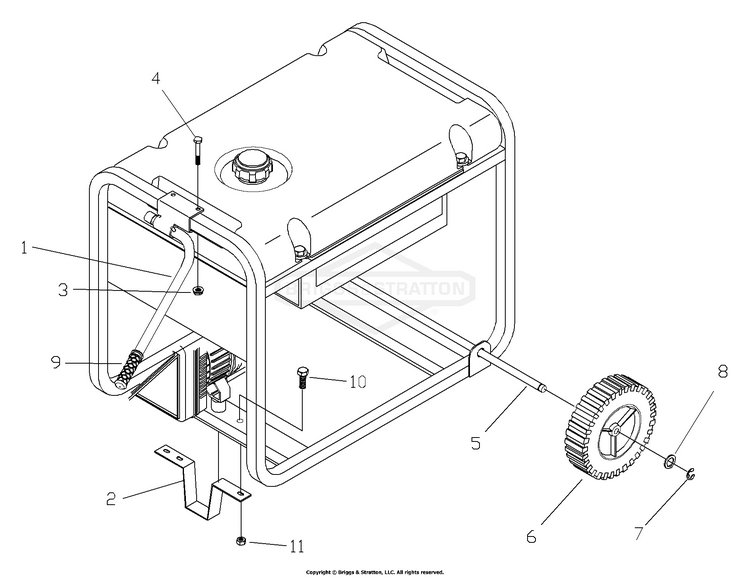

Wheel KIit

...
...
1
ASSY, Handle (Includes Item 9) BS-189715GS
...
2
SUPPORT, Leg BS-B1764GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
AXLE BS-192006AGS
...
6
WHEEL BS-197061GS
...
7
RETAINER, RING, 1/2 BS-703976
...
9
GRIP BS-198669GS
...
11
NUT, M8 Flange Serrated BS-67989GS

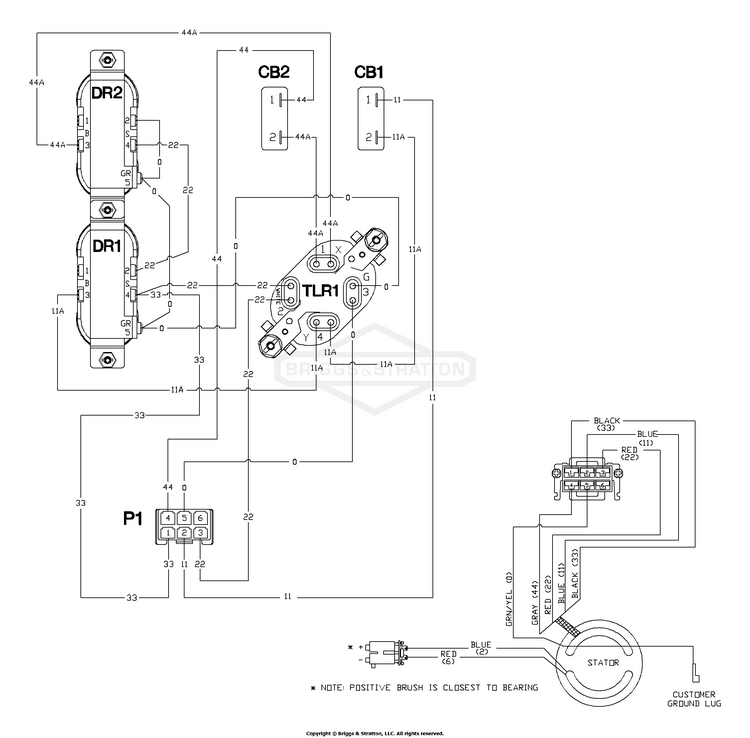

Wiring Diagram

...

No Parts Available for this Schematic

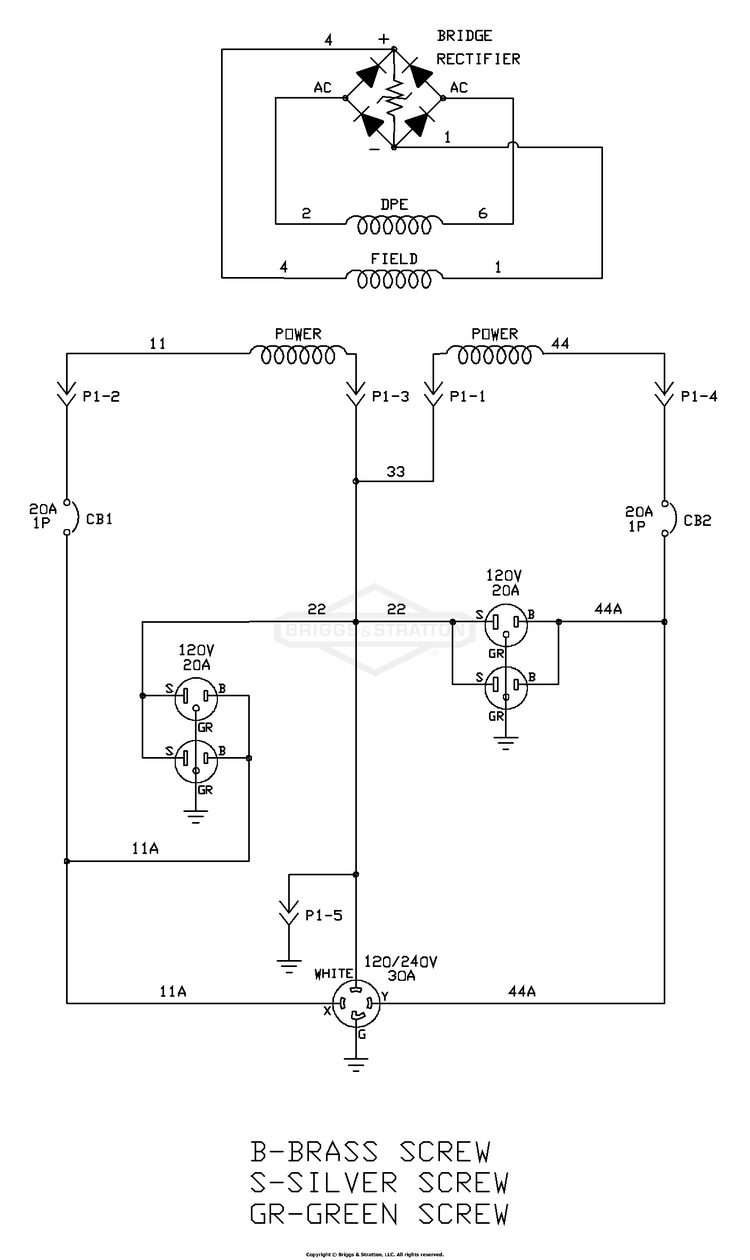

Wiring Schematic

...

No Parts Available for this Schematic
