Weed Eater YP200 Gas Trimmer

Model: YP200 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

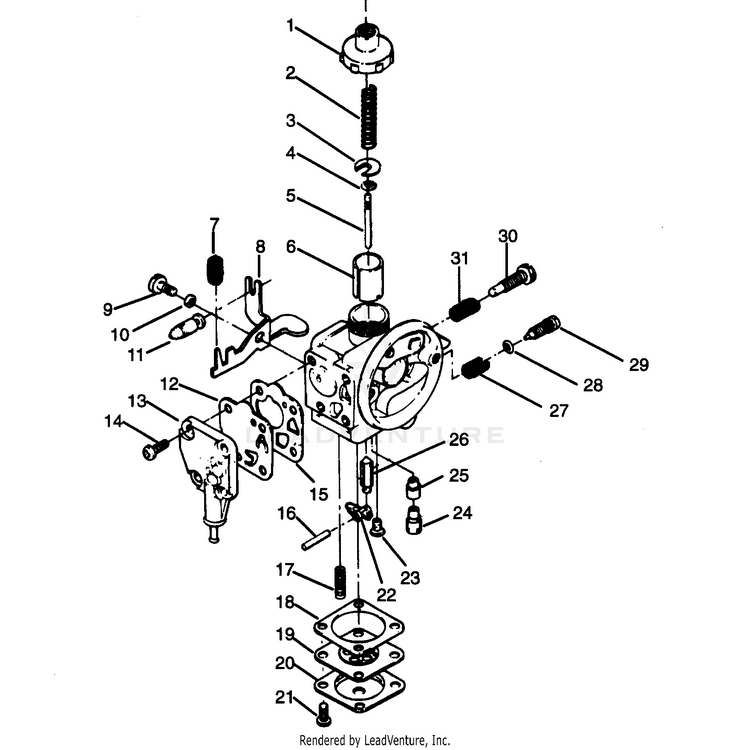

CARBURETOR

...
...
1
Body Cap PLN-530094093
...
2
Throttle Spring PLN-530094094
...
3
Retainer PLN-530094095
...
4
Clip PLN-530094097
...
5
Needle PLN-530094096
...
6
Valve PLN-530094098
...
7
Spring PLN-530094120
...
8
Lever PLN-530094121
...
9
Screw PLN-530094123
...
10
Collar PLN-530094122
...
11
Valve PLN-530094119
...
12
Diaphragm PLN-530094106
...
13
Pump Cover PLN-530094104
...
14
Screw PLN-530094107
...
15
Gasket PLN-530094105
...
16
Pin PLN-530094112
...
17
Spring PLN-530094114
...
18
Gasket PLN-530094115
...
19
Diaphragm Ass'y. PLN-530094116
...
20
Cover PLN-530094117
...
21
Screw PLN-530094118
...
22
Lever PLN-530094111
...
23
Screw PLN-530094113
...
24
Holder PLN-530094109
...
25
Jet PLN-530094108
...
26
Valve PLN-530094110
...
27
Spring PLN-530094101
...
28
O-Ring PLN-530094100
...
29
Screw PLN-530094099
...
30
Screw PLN-530094102
...
31
Spring PLN-530094103

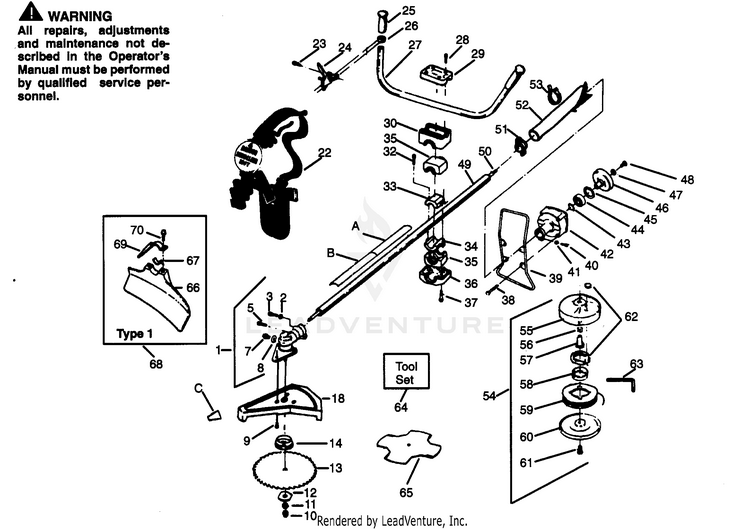

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES

...
...
1
Gear Case Ass'y. PLN-530094141
...
2
Lockwasher PLN-530094449
...
3
Screw PLN-530094199
...
5
Screw PLN-530094201
...
7
Screw PLN-530094202
...
8
Washer PLN-530094203
...
9
Screw PLN-530094487
...
10
Nut PLN-530091596
...
11
Nut PLN-530091595
...
12
Lower Adaptor PLN-530094151
...
13
Brush Blade-10" PLN-952701547
...
14
Upper Adaptor PLN-530094150
...
18
Shield Ass'y. XR-200 & YP200 Type Il;PP200 Type 1 PLN-530094496
...
22
Shoulder Strap PLN-530092117
...
23
Screw PLN-530094204
...
24
Throttle Control PLN-530093957
...
25
Handlebar Grip PLN-530094172
...
26
Throttle Collar PLN-530094173
...
27
Handlebar Ass'y. (Inc. #25 & 26) PLN-530093992
...
28
Screw PLN-530094169
...
29
Handlebar Clamp PLN-530094162
...
30
Handlebar Clamp PLN-530094163
...
32
Screw PLN-530094170
...
33
Metal Fitting PLN-530094165
...
34
Metal Fitting PLN-530094166
...
35
Isolator PLN-530094167
...
36
Handlebar Clamp PLN-530094164
...
37
Bolt PLN-530094168
...
38
Bolt PLN-530093999
...
39
Wire Stand PLN-530093995
...
40
Screw PLN-530094153
...
41
Lock Washer PLN-530094154
...
42
Clutch Case PLN-530094152
...
43
Snap Ring PLN-530094161
...
44
Bearing PLN-530094159
...
45
Snap Ring PLN-530094160
...
46
Clutch Drum PLN-530094156
...
47
Washer PLN-530094036
...
48
Bolt PLN-530094158
...
49
Drive Shaft Hsg. PLN-530094198
...
50
Drive Shaft PLN-530094144
...
51
Bracket Ass'y. PLN-530094146
...
52
Hip Pad PLN-530093993
...
53
Tie Strap PLN-530091426
...
54
Cutting Head Ass'y. (Inc. #55-63) PLN-530093954
...
55
Hub PLN-530091656
...
56
Line Saver PLN-530091425
...
57
Drive Adaptor PLN-530091423
...
58
Spring PLN-530091657
...
59
Spool w/Line PLN-952701526
...
60
Cover PLN-530091424
...
61
Screw PLN-530091662
...
62
Release Button (Inc. Lock Ring) PLN-530093602
...
63
Hex Wrench PLN-530091663
...
64
Tool Set PLN-530093994
...
65
Weed Blade-Optional PLN-952701546
...
66
Shield PLN-530094174
...
67
Spacer PLN-530094175
...
68
Shield Ass'y. PLN-530093996
...
69
Bracket PLN-530094187
...
70
Screw PLN-530094176
...
A
Shaft Warning Decal (Upper) PLN-530029162
...
B
Shaft Warning Decal (Lower) PLN-530029163
...
C
Shield Warning Decal PLN-530027348
...
xx
YP200 Not Shown. PLN-530066869
...
xx
XR-200 Not Shown. PLN-530066870
...
xx
PP200 Not Shown. PLN-530067447
...
xx
YP200 Carton (Not a serviceable part) Not Shown. PLN-530060857
...
xx
XR-200 Not Shown. PLN-530060865
...
xx
PP200 Carton (Not a serviceable part) Not Shown. PLN-530061161

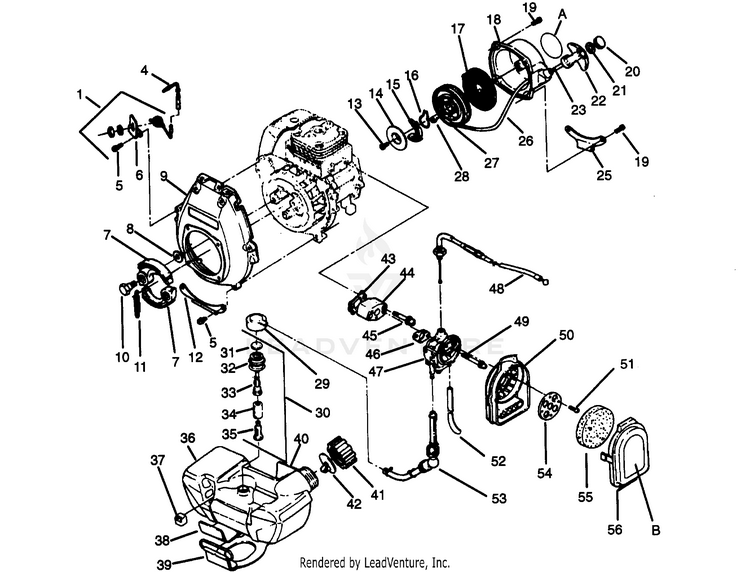

EXTERIOR POWER UNIT

...
...
1
Switch Stop PLN-530094087
...
4
Lead Wire Switch PLN-530094089
...
5
Screw PLN-530094047
...
6
Bracket PLN-530094088
...
7
Clutch Shoe PLN-530094038
...
8
Washer PLN-530094040
...
9
Crankcase./Fan Hsg. Ass'y. on Page 3) PLN-530094041
...
10
Clutch Pin PLN-530094037
...
11
Spring PLN-530094039
...
12
Bracket PLN-530094064
...
13
Screw PLN-530094128
...
14
Cover PLN-530094129
...
15
Recoil Pawl PLN-530094130
...
16
Recoil Spring PLN-530094131
...
17
Recoil Spring PLN-530094134
...
18
Recoil Starter Ass'y. (Inc.13-17,23,26-28) PLN-530094032
...
19
Screw PLN-530094034
...
20
Cap PLN-530094138
...
21
Washer PLN-530094206
...
22
Handle PLN-530094136
...
23
Guide PLN-530094139
...
25
Bracket PLN-530094063
...
26
Rope Kit PLN-530069232
...
27
Recoil Reel PLN-530094133
...
28
Spring PLN-530094132
...
29
Tank Cap Strainer PLN-530094183
...
30
Fuel Strainer Ass'y. (Inc. #31-35) PLN-530094061
...
31
Filter PLN-530094179
...
32
Tube PLN-530094182
...
33
Clip PLN-530094181
...
34
Element PLN-530094178
...
35
Weight PLN-530094180
...
36
Fuel Tank Ass'y. (Inc. #41 & 42) PLN-530094058
...
37
Fuel Tank Damper PLN-530094065
...
38
Fuel Tank Damper PLN-530094067
...
39
Fuel Tank Band PLN-530094066
...
40
Fuel Tank Damper PLN-530094068
...
41
Tank Cap PLN-530094059
...
42
Breather Cap PLN-530094060
...
43
Gasket PLN-530094055
...
44
Insulator PLN-530094054
...
45
Screw PLN-530094057
...
46
Gasket PLN-530094056
...
47
Carb. Ass'y. PLN-530094053
...
48
Throttle Cable PLN-530094052
...
49
Screw PLN-530094125
...
50
Air Cleaner Case PLN-530094006
...
51
Screw PLN-530094010
...
52
Line PLN-530094126
...
53
Pump PLN-530094196
...
54
Plate PLN-530094009
...
55
Air Cleaner PLN-530094008
...
56
Cap PLN-530094007
...
A
YP200 PLN-530027046
...
A
XR-200 (Not a serviceable part) PLN-530027152
...
A
PP200 PLN-530029147
...
B
YP200 & XR-200-Type 1 PLN-530026678
...
B
YP200 & XR-200-Type II; PP200 Type 1 PLN-530027383

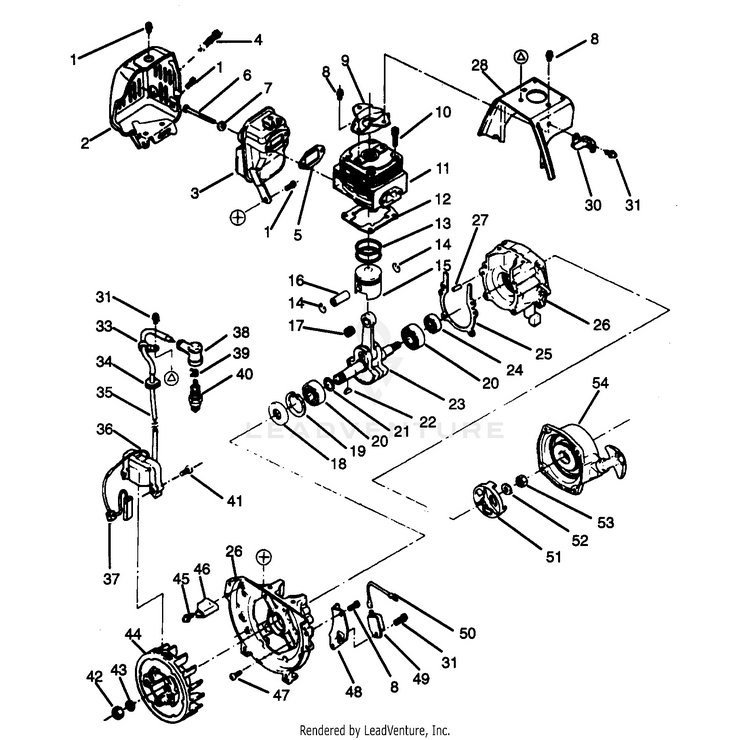

INTERIOR POWER UNIT

...
...
1
Screw PLN-530094014
...
2
Muffler Cover PLN-530094124
...
3
Muffler Ass'y. PLN-530094011
...
4
Spark Arrestor PLN-530094428
...
5
Gasket PLN-530094012
...
6
Bolt PLN-530094013
...
7
Washer PLN-530015181
...
8
Screw PLN-530094020
...
9
Bracket PLN-530094019
...
10
Bolt PLN-530094005
...
11
Cylinder PLN-530094003
...
12
Gasket PLN-530094004
...
13
Piston Ring Set PLN-530094023
...
14
Snap Ring PLN-530094025
...
15
Piston PLN-530094022
...
16
Piston Pin PLN-530094024
...
17
Bearing PLN-530094027
...
18
Seal PLN-530094045
...
19
Snap Ring PLN-530094049
...
20
Bearing PLN-530094044
...
21
Shim(0.1mm) PLN-530094028
...
21
Shim(0.2mm) PLN-530094029
...
21
Shim((0.4mm) PLN-530094030
...
21
Shim(0.6mm) PLN-530094031
...
22
Crankshaft Key PLN-530094083
...
23
Crankshaft Ass'y. (Inc. #17) PLN-530094026
...
24
Seal PLN-530094046
...
25
Gasket PLN-530094043
...
26
Crankcase/Fan Hsg. Ass'y. PLN-530094041
...
27
Pin PLN-530094042
...
28
Cylinder Cover PLN-530094018
...
30
Clamp PLN-530094075
...
31
Screw PLN-530094081
...
33
Clamp PLN-530094076
...
34
Grommet PLN-530094078
...
35
High Tension Wire PLN-530094079
...
36
Coil PLN-530094072
...
37
Grommet PLN-530094077
...
38
Cap PLN-530094085
...
39
Spring PLN-530094086
...
40
Spark Plug PLN-530094084
...
41
Bolt PLN-530094080
...
42
Nut PLN-530094082
...
43
Washer PLN-530094074
...
44
Flywheel PLN-530094071
...
45
Screw PLN-530094021
...
46
Plate PLN-530094017
...
47
Screw PLN-530094048
...
48
Igniter Cover PLN-530094016
...
49
Igniter PLN-530094073
...
50
Lead Wire Switch PLN-530094184
...
51
Pulley PLN-530094033
...
52
Washer PLN-530094036
...
53
Nut PLN-530094035
...
54
Recoil Starter Ass'y. PLN-530094032
...
...
...
