Weed Eater YP145 Gas Trimmer

Model: YP145 Gas Trimmer

Save
Part Not Listed?Part Not Listed?
product name

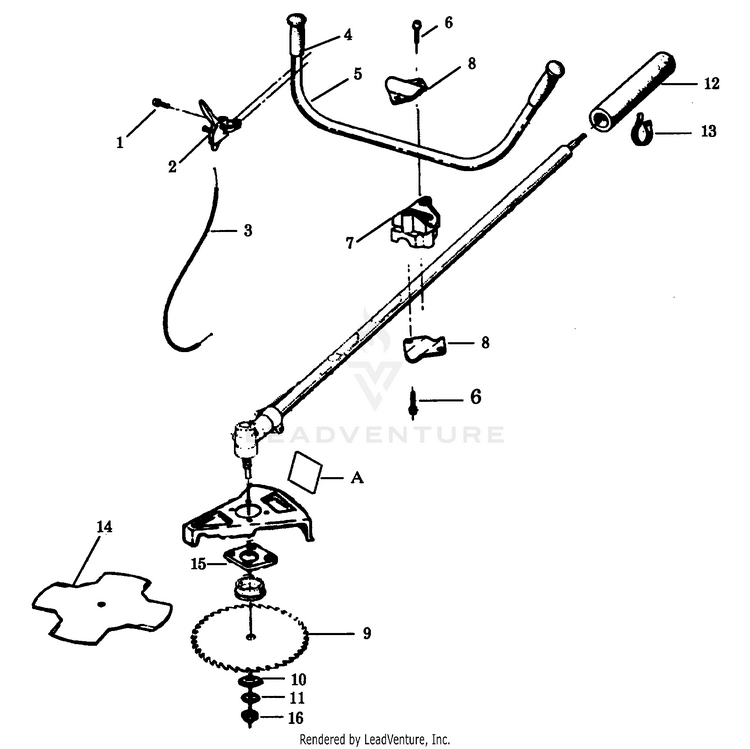

BRUSH BLADE ADAPTOR KIT

...
...
0
Brush Blade Adaptor Kit PLN-952701609


...
2
Throttle Control Ass'y. PLN-530093957

...
3
Throttle Cable PLN-530093955

...
4
Handlebar Grip PLN-530093947

...
5
Handlebar PLN-530093946


...
7
Handlebar Clamp PLN-530012207

...
8
Handlebar Bracket PLN-530094572

...
9
Brush Blade-8" PLN-952701610

...
10

...
11
Washer--Belleville PLN-530016240

...
12
Drive Shaft Pad PLN-530027706

...
13
Tie Strap PLN-530091426

...
14
Weed Blade-8" PLN-952701611

...
15
Shield Retention Plate PLN-530027615


...
A
Blade Rotation Decal (Not a serviceable part) PLN-530027749

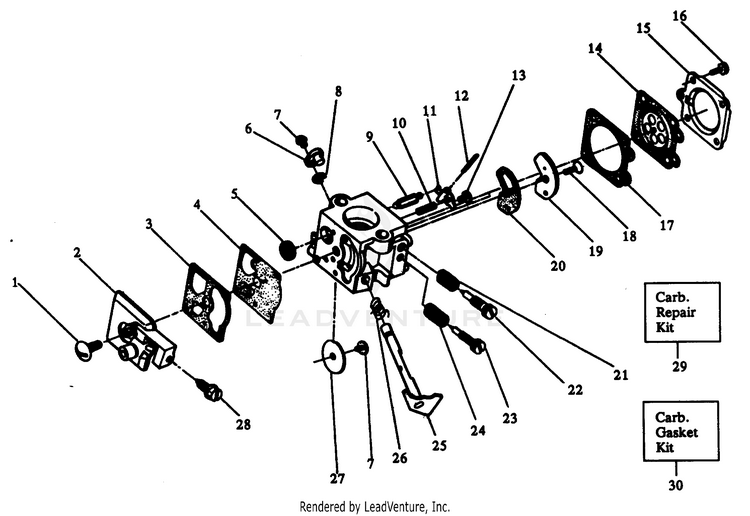

CARBURETOR BREAKDOWN

...
...
1
Pump Cover Screw PLN-530035017

...
2
Pump Cover Ass'y. (Inc.28) PLN-530035191

...

...
4
PUMP DIAPHRAGM PLN-504130807

...
5
Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178

...
6
Swivel Lever Ass'y. PLN-530035193

...
7
Throttle Valve Screw Included in Carburetor Kwik Repair Kit. PLN-530035015

...
8
Throttle Shaft Clip PLN-530035007

...
9
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001

...
10
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188

...
11
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127

...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125

...
13
Metering Lever Pin Screw PLN-530035016

...
14
DIAPHRAGM PLN-503896701

...
15
Metering Diaphragm Cover PLN-530035149

...
16
Metering Cover & Throttle Shaft Clip Screw PLN-530035153

...
17
Metering Diaphragm Gasket PLN-530035151

...
18
Circuit Plate Screw Included in Carburetor Kwik Repair Kit. PLN-530035137

...
19
Circuit Plate PLN-530035042

...
20

...
21
Hi Speed Needle Spring PLN-530035036

...
22

...
23
Idle Needle PLN-530035141

...
24
Idle Needle Spring PLN-530035023

...
25
Throttle Shaft Ass'y. PLN-530035192

...
26
Throttle Return Spring PLN-530035138

...
27
Throttle Valve PLN-530035133

...
28
Idle Adjustment Screw PLN-530035156

...
29
Kwik Repair Kit PLN-530035185

...
30
Gasket Diaphragm Kit PLN-530069844

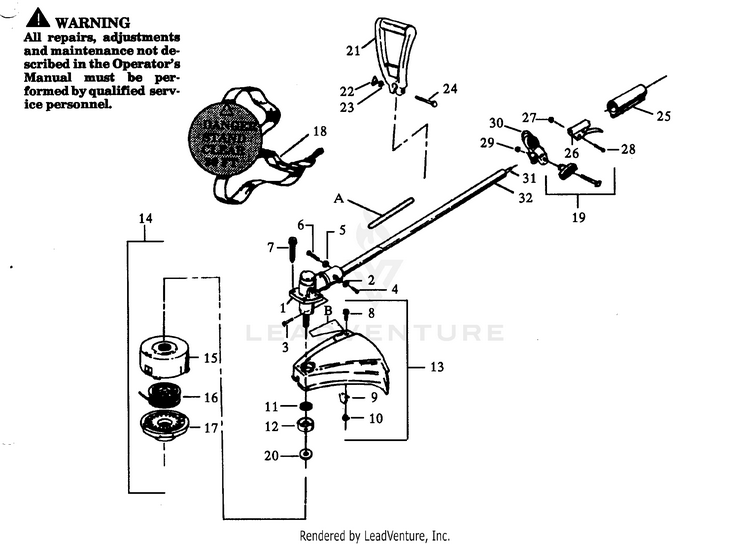

CUTTING HEAD & DRIVE SHAFT

...
...
1
GEAR BOX REPLACEMENT KIT PLN-530071781

...
2
Lockwasher PLN-530015328



...
5
Lockwasher PLN-530001642




...
9
Line Limiter PLN-530094570



...
12

...
13
Shield Kit Ass'y. PLN-530069256

...
14
Cutting Hd. Ass'y. (Inc.15, 16 & 17) PLN-952701608

...
15
Accy--Cutting Head PLN-952711550

...
16
Spool w/Line PLN-952701607

...

...
18
Shoulder Strap PLN-530094417

...
19
HANDLE KIT PLN-530069347

...
20

...
21
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496

...
22

...
23

...


...
26
Throttle Lever Ass'y. PLN-530010959

...
27

...


...
30
Clamp Harness Ass'y. PLN-530094686

...
31
Drive Shaft PLN-530094566

...
32
Drive Shaft Hsg. (Inc.31) PLN-530094611



...
B
Shield Warning Decal PLN-530027348

...
xx
Operator's Manual PLN-530067095

...
xx
Carton (Not a serviceable part) PLN-530061020

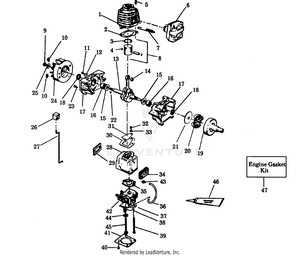

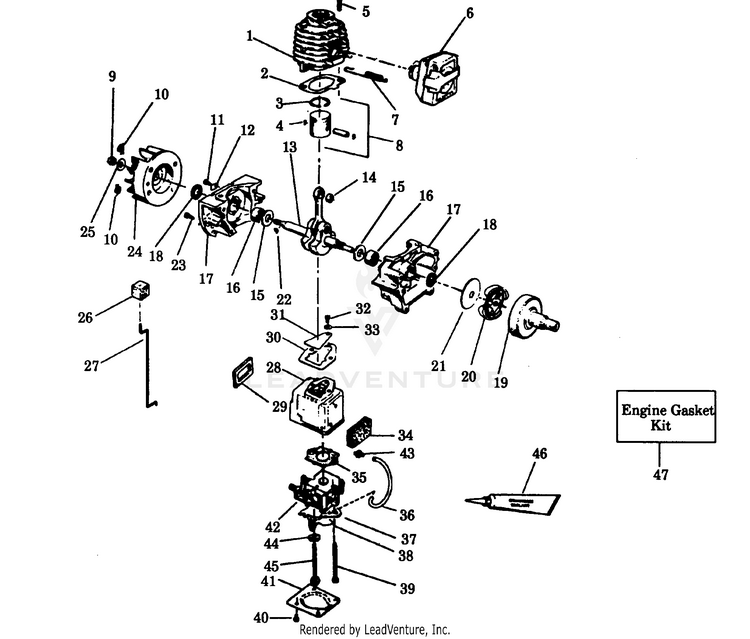

POWER UNIT

...
...
1


...
2
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219



...
4
Wrist Pin Retainer PLN-530015162


...
6
Muffler Ass'y. PLN-530069244

...
7
Muffler Attach. Spring PLN-530026621




...
10
Spring-Starter Dog PLN-530023817

...

...
12
Choke Wire Clamp PLN-530024651



...
14
Wrist Pin Bearing PLN-530032057

...
15

...
16

...
17
Crankcase Ass'y. (Inc.16,18 & 23) PLN-530010757

...
18
Crankcase Seal Included in Engine Gasket Kit. PLN-530019059

...
19
Drum & Coupling Ass'y. PLN-530010902

...
20
Clutch Ass'y. Kit (Incl. Washer) PLN-530069195

...
21
Clutch Washer Kit PLN-530069196

...
22
Flywheel Key PLN-530015126

...

...
24
Flywheel Ass'y. (Inc.10) PLN-530039114

...
25

...
26
Choke Wire Boot Included in Engine Gasket Kit. PLN-530023373

...
27
Choke Wire PLN-530026236

...
28
Carb. Hsg. PLN-530010884

...
29
Seal Included in Engine Gasket Kit. PLN-530019105

...
30
Gasket Included in Engine Gasket Kit. PLN-530019108

...
31
Reed Valve PLN-530024438

...

...
33

...
34
Seal Included in Engine Gasket Kit. PLN-530019135

...
35
Gasket Included in Engine Gasket Kit. PLN-530019157

...
36
Fuel Line PLN-530069238

...
37
Guide Plate PLN-530026237

...
38
Choke Shutter PLN-530024558

...

...

...
41
Carb. Case Cover PLN-530026029

...
42
Carburetor-WA-149 PLN-530035190

...
43
Fuel Line Fitting PLN-530026981

...
44

...

...
46
Crankcase Sealant (Not supplied with unit) PLN-530030054

...
47
Engine Gasket Kit PLN-530069219

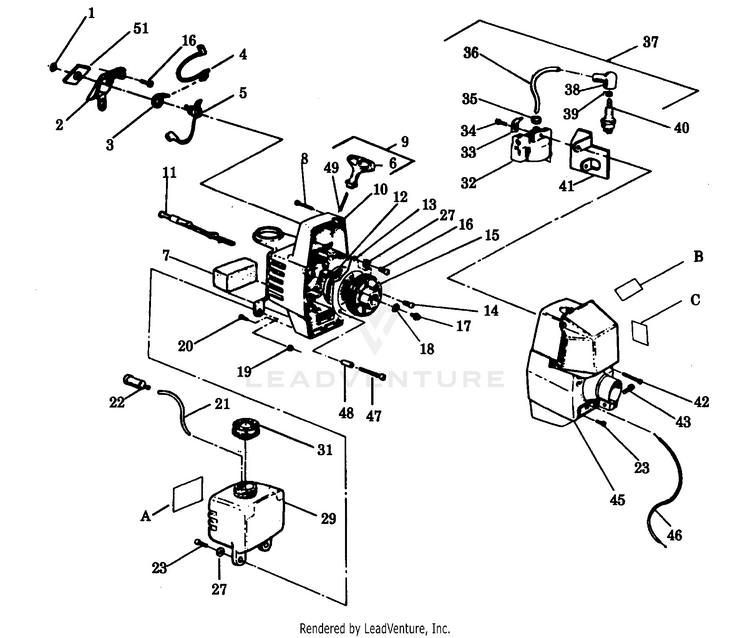

STARTER & SHROUD

...
...
1
Switch- Plate and Nut PLN-530002582

...
2
Housing Switch PLN-530026997

...

...
4
Grounding Switch Lead Wire PLN-530039122

...
5
Grounding Switch Kit (Inc.1,3,4,33) PLN-530069182

...
6
Handle-Starter PLN-530027569

...
7
Air Filter PLN-530024371


...
9
Rope and Handle Starter Ass'y. (Inc.6 & 49) PLN-530026792

...
10
Fan Housing Kit PLN-530069236

...
11
Choke Knob PLN-530024303

...
12
KIT STARTER SPRING PLN-545008009

...
13
Air Baffle PLN-530026035

...

...
15
Starter Pulley PLN-530026048

...

...

...
18


...

...
21

...
22
Assy-Fuel Pickup PLN-530095646

...

...
27

...
29
Fuel Tank Ass'y. (Inc.21,22,31) PLN-530010838

...
31
Assy-Fuel Cap (Incl. "O" Ring) PLN-530014347

...
32
Ignition Module Kit PLN-530069181

...
33
Electrical Tab PLN-530025995

...

...
35
Plug Wire Grommet PLN-530024435

...
36
High Tension Lead Wire PLN-530039082

...
37
High Tension Lead Ass'y. (Inc.36,38,39) PLN-530039103

...
38
Spark Plug Boot PLN-530003934

...
39
Spark Plug Boot PLN-507475326

...
40
Spark Plug (CJ-14) PLN-530030077

...
41
Air Deflector PLN-530026658

...


...
45
Shroud/Heat Shield Ass'y. PLN-530010931

...
46
Throttle Cable PLN-530093959

...

...
48

...
49

...
51
Indicating Switch Plate PLN-530026741

...
A
Fuel Tank Decal PLN-530027150

...
B
Starting Inst. Decal (Not a serviceable part) PLN-530026999

...
C
Shroud Decal (Left) (Not a serviceable part) PLN-530027676
...
...
...
