product name

Weed Eater XT35 Gas Trimmer, XT35

Model: XT35 Gas Trimmer, XT35

Save
 Part Not Listed?Part Not Listed?
product name

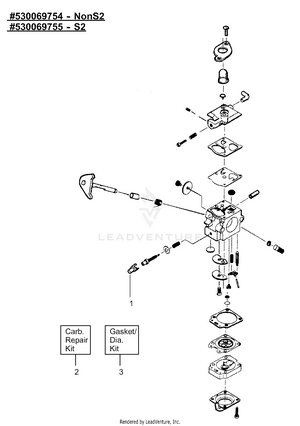

Carburetor Assembly - P/N 530069754 (NonS2) P/N 530069755 (S2)

...
...
1
Limiter Cap PLN-530038404
...
2
Carburetor Repair Kit Non S2 PLN-530069842
...
2
Carburetor Repair Kit S2 PLN-530069840
...
3
Gasket Diaphragm Kit Non S2 PLN-530069844
...
3
Gasket Diaphragm Kit S2 PLN-530069845
...
530069754
Carburetor Assembly Non S2 PLN-530069754
...
530069755
Carburetor Assembly S2 PLN-530069755

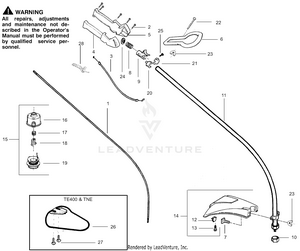

Driveshaft & Cutting Head

...
...
1
Drive Shaft TNE, XT35, XT55, PLN-530094551
...
1
Drive Shaft TE400, Ultratrim PLN-530053613
...
2
Screw PLN-530016179
...
3
Assy-Throttle Cable (type 1) PLN-530071550
...
4
Throttle Hsg. (Right) PLN-530047923
...
5
Throttle Hsg. (Left) PLN-530047924
...
6
Assist Handle PLN-530047919
...
7
Bolt-Shield PLN-530015820
...
8
Spring-Compression PLN-530042084
...
9
Actuator PLN-530054060
...
10
Dust Cup PLN-530094543
...
11
Drive Shaft Hsg. Ass'y XT35, XT55, Ultratrim PLN-530095703
...
11
Drive Shaft Hsg. Ass'y TE400 PLN-530053611
...
11
Drive Shaft Hsg. Ass'y TNE PLN-530095941
...
12
Line Limiter PLN-530052286
...
13
Screw-Line Limiter PLN-530015814
...
14
Shield Kit Ass'y. (Incl. 12 & 13) PLN-530069666
...
15
Cutting Head Ass'y. (Incl. 16-19) PLN-952701676
...
16
Hub Ass'y PLN-530095380
...
17
Spring-Return PLN-530401958
...
18
Retainer-Spool PLN-530401957
...
19
Spool w/Line PLN-952701678
...
20
Locator-right PLN-530047912
...
21
Locator-left PLN-530047911
...
22
Bolt-Handle PLN-530016173
...
23
Nut PLN-530091373
...
24
Washer PLN-530016193
...
25
SCREW PLN-530016386
...
26
Assy. wire form PLN-530054459
...
27
Screw PLN-530016179
...
28
Trigger PLN-530038682
...
xx
Operator's Manual Twist 'N Edge, XT35 & TE400 Not Shown PLN-530088832
...
xx
Operator's Manual Ultra Trim & XT55 Not Shown PLN-530084278
...
xx
Shaft Warning Decal Not Shown PLN-530055350
...
xx
Decal-Starting Instruction One Pull - Models Ultratrim & XT55 Not Shown PLN-530049430

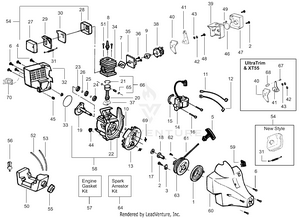

Power Unit

...
...
1
KIT STARTER SPRING PLN-545008011
...
2
Screw PLN-530015957
...
3
Retainer-Can PLN-530016226
...
4
Screw PLN-530015880
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket-Cylind./Carb. PLN-530019243
...
8
Spark Plug PLN-503235112
...
9
Gasket-Carb. PLN-530019194
...
10
Retainer Ring-C'shaft PLN-530015941
...
11
Lead Wire Ass'y. PLN-530049390
...
12
Ground Wire Ass'y. PLN-530049389
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530055160
...
15
Spacer-Module PLN-530036145
...
16
Screw PLN-530015954
...
17
Washer-Flat PLN-530015828
...
18
Drive Coupling PLN-530027953
...
19
Assy-Crankshaft PLN-530054083
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
RING PISTON PLN-545154001
...
22
Assy-Crankcase (Incl 23-26) PLN-530071627
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retain. Ring-C'case PLN-530015945
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle-Exit PLN-530053500
...
30
Muffler Baffle-First PLN-530053499
...
31
Muffler Spring Old Style PLN-530016197
...
31
Muffler Spring New Style PLN-530042088
...
32
Rear Shroud PLN-530049233
...
34
Cylinder PLN-530012416
...
35
Carb. Adaptor Kit PLN-530069758
...
36
Screw PLN-530016014
...
37
Gasket-Cylinder PLN-530019223
...
38
Carburetor Ass'y Kit-Twist'N Edge, XT35 & TE400 (Incl. Limiter Cap) PLN-530069754
...
38
Carburetor Ass'y Kit-Ultra Trim & XT55 (Incl. Limiter Cap) PLN-530069755
...
39
Air Box PLN-530047908
...
40
Choke Plate Mounting PLN-530047914
...
41
Choke Lever Twist'N Edge, XT35 & TE400 PLN-530047916
...
41
Choke Lever Ultra Trim & XT55 PLN-530047915
...
42
Spacer-Choke PLN-530015852
...
43
Washer PLN-530015254
...
44
Isolator-C'Case PLN-530036792
...
45
Isolator-Shroud PLN-530036793
...
46
Air Filter Foam PLN-530047932
...
47
Air Filter Cover Twist-N-Edge, XT35 & TE400 PLN-530049095
...
47
Air Filter Cover Ultratrim & XT55 PLN-530047927
...
48
Screw PLN-530015849
...
49
Screw PLN-530015557
...
50
Fuel Tank Ass'y (Incl. 52, 53, 55 & 56) PLN-530049299
...
51
Screw-Cylinder PLN-530015953
...
52
Fuel Line (Large) PLN-530069216
...
53
Fuel Line (Small) PLN-530069247
...
54
Muffler Kit Old Style PLN-530069989
...
54
Muffler Kit New Style PLN-530071390
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Fuel Pickup Ass'y. PLN-530095646
...
57
Gasket-Cylind./Carb. (Incl. 7,9,33,37) PLN-530069616
...
58
C'case & C'shaft Assy. (Incl. 10,19,22-26) PLN-530014729
...
59
Switch-Momentary PLN-530071356
...
60
Assy-Fan Housing PLN-530049468
...
61
Rope Kit PLN-530069232
...
62
Screw PLN-530016080
...
63
STARTER PULLEY KIT (Incl. 62) PLN-530071786
...
64
Spark Arrestor Kit Old Style PLN-530069380
...
64
Spark Arrestor Kit New Style PLN-530071391
...
65
Piston Pin Retainer PLN-530015162
...
66
PISTON KIT (Incl. 21, 65 & Pin) PLN-530071785
...
67
Screw-Choke Knob PLN-530015780
...
68
Choke Knob PLN-530047917
...
69
Starter Dog Spring PLN-530023817
...
70
Guard-Muffler PLN-530054536

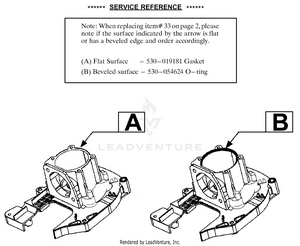

Service Reference

...

No Parts Available for this Schematic

...
...
...
