Weed Eater XT300 Gas Trimmer Type 3

Model: XT300 Gas Trimmer Type 3

Save
 Part Not Listed?Part Not Listed?

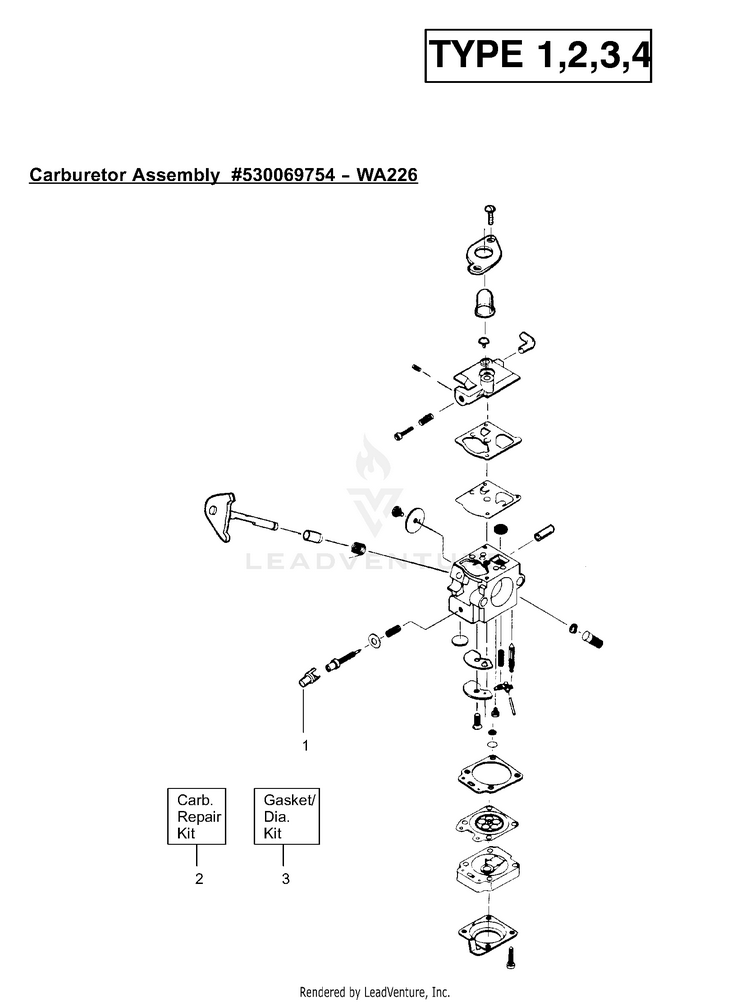

product name

Carburetor Assembly (WA226) 530069754

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor Repair Kit PLN-530069842
...
3
Gasket Diaphragm Kit PLN-530069844
...
530069754
Carburetor Assembly - WA226 PLN-530069754

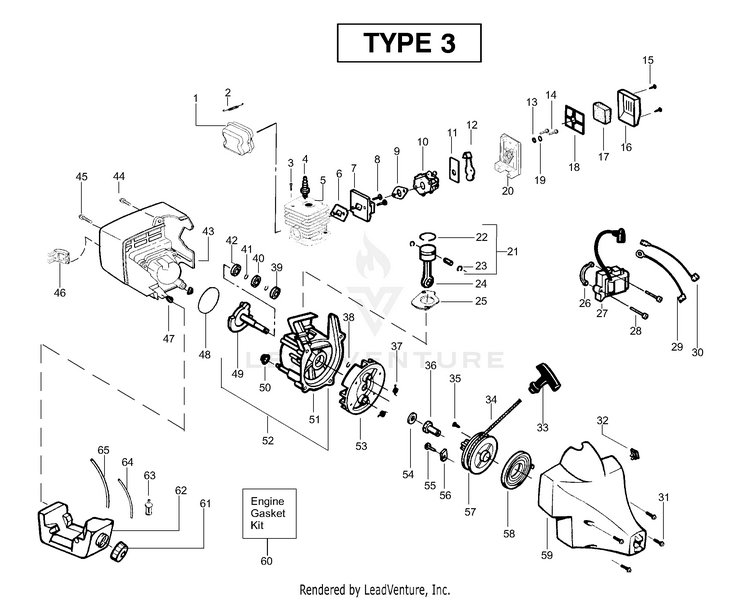

Engine Assembly Type 3

...
...
1
Kit - Muffler (Incl. 2 & spark arrestor screen) PLN-530071396
...
2
Muffler Spring PLN-530042088
...
3
Screw-Cylinder PLN-530015953
...
4
Spark Plug (RCJ 6Y) PLN-952030249
...
5
Cylinder PLN-530012416
...
6
Gasket-Cyl/Carb.(kit) PLN-530071363
...
7
Adaptor-carb. PLN-530055535
...
8
Screw PLN-530016014
...
9
Gasket-Carb.(kit) PLN-530071363
...
10
Kit - Carburetor Ass'y (Incl. Limiter Cap) PLN-530069754
...
11
Plate-Choke Mounting PLN-530038747
...
12
Lever-Choke PLN-530035499
...
13
Washer PLN-530015254
...
14
Screw PLN-530016353
...
15
Screw PLN-530015957
...
16
Cover-Air Box PLN-530054414
...
17
Foam-Air Filter PLN-530036575
...
18
Plate-Air Filter Support PLN-530036569
...
19
Spacer-Choke PLN-530015852
...
20
Box-Air PLN-530052431
...
21
Kit-Piston (Incl. 22, 23) PLN-530071833
...
22
RING PISTON PLN-545154001
...
23
Retainer-Piston Pin PLN-530015162
...
24
CONNECTING ROD ASSY PLN-530049817
...
25
Gasket-Cylinder(kit) PLN-530071363
...
26
Spacer-Module PLN-530036145
...
27
Kit - Ignition Module PLN-545081826
...
28
Screw PLN-530015954
...
29
Assy-Ground Wire PLN-530054448
...
30
Assy-Leadwire PLN-530054449
...
31
SCREW PLN-530016386
...
32
Kit-Momentary Switch PLN-530071356
...
33
Handle-Starter PLN-530054834
...
34
Kit - Rope PLN-530071325
...
35
Screw PLN-530016326
...
36
Coupling-Drive PLN-530027953
...
37
Spring-Starter Dog PLN-530023817
...
38
Retain. Ring-C'shaft PLN-530015941
...
39
Bearing-Outer PLN-530032124
...
40
Seal-C'case PLN-530019179
...
41
Retainer Ring-C'case PLN-530015945
...
42
Bearing-Inner PLN-530032125
...
43
Shroud PLN-530049233
...
44
Screw PLN-530015880
...
45
SCREW PLN-530016386
...
46
Guard-Muffler PLN-530054536
...
47
Isolator-Shroud PLN-530036793
...
48
O-Ring-C'case(kit) PLN-530071363
...
49
Assy-Crankshaft PLN-530012413
...
50
Isolator-Crankcase PLN-530036792
...
51
Assy-Crankcase (Incl. 39-42) PLN-530012462
...
52
Assy-C'case & C'shaft (Incl. 38,49,51) PLN-530071337
...
53
FLYWHEEL ASSY PLN-545221701
...
54
Washer-Flat PLN-530015828
...
55
Screw PLN-530015775
...
56
Retainer-Can PLN-530053985
...
57
Kit-Starter Pulley (Incl. 35) PLN-530071324
...
58
KIT STARTER SPRING PLN-545008011
...
59
Assy-Fan Housing PLN-530071415
...
60
Kit-Engine Gasket (Incl. 6,9,25,48) PLN-530071363
...
61
Assy-Fuel Cap PLN-530014347
...
62
Assy-Fuel Tank (Incl. cap,filter,lines) PLN-530049299
...
63
Assy-Fuel Pickup PLN-530095646
...
64
Kit-Fuel Line PLN-530069247
...
65
Kit-Fuel Line PLN-530069216

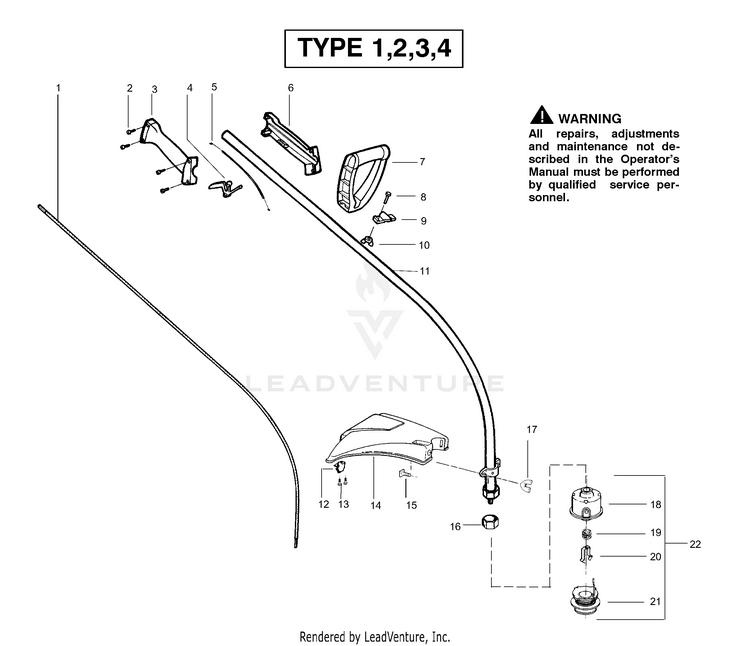

Handle & Shaft Assembly

...
...
1
Shaft-Flex (type 1,2) PLN-530053613
...
1
Shaft-Flex (type 3,4) PLN-530095853
...
2
Screw-Throttle Hsg. PLN-530016179
...
3
Throttle Hsg. (Right) PLN-530053020
...
4
Trigger PLN-530038682
...
5
Assy-Throttle Cable (type 1) PLN-530071550
...
5
Assy-Throttle Cable (type 2,3,4) PLN-530055546
...
6
Throttle Hsg. (Left) (type 1,2) PLN-530053019
...
6
Throttle Hsg. (Left) (type 3,4) PLN-530053028
...
7
Assy-Assist Handle PLN-530055699
...
8
Bolt-Handle/Shield PLN-530015820
...
9
Clamp-Assist Handle PLN-530094742
...
10
Nut PLN-530091373
...
11
Assy-Drive Shaft Hsg. (type 1,2) PLN-530071418
...
11
Assy-Drive Shaft Hsg. (type 3,4) PLN-530071323
...
12
Line Limiter PLN-530052286
...
13
Screw-Line Limiter PLN-530015814
...
14
Kit-Shield Ass'y. (Incl. 12 & 13) PLN-530069666
...
15
Bolt-Handle/Shield PLN-530015820
...
16
Dust Cup PLN-530095574
...
17
Nut PLN-530091373
...
18
Hub Ass'y. PLN-530095380
...
19
Spring PLN-530401958
...
20
Clip-Retainer-Head PLN-530401957
...
21
Spool w/Line PLN-952701678
...
22
Accy-Cutting Head Assy (Incl. 18-21) PLN-952701676
...
xx
Operator's Manual (Type 1) Not Shown PLN-530088830
...
xx
Operator's Manual (Type 2,3) Not Shown PLN-530086929
...
xx
Operator's Manual (Type 4) Not Shown PLN-530163505
...
xx
Shaft Warning Decal Not Shown PLN-530055350

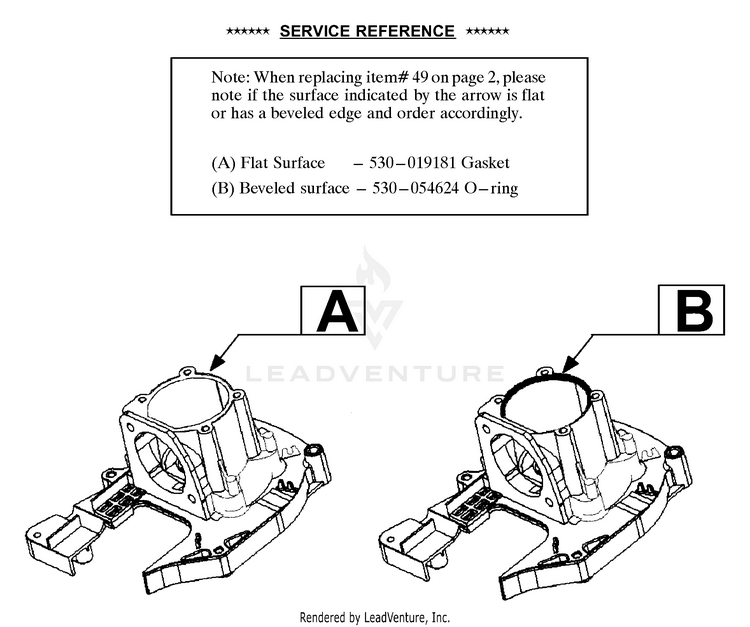

Service Reference

...

No Parts Available for this Schematic

...
...
...
