product name

Weed Eater XT250LE Gas Trimmer Type 1

Model: XT250LE Gas Trimmer Type 1

Save
 Part Not Listed?Part Not Listed?
product name

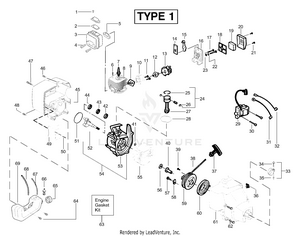

Engine Assembly Type 1

...
...
1
Screw-Screen PLN-530015241
...
2
Kit-Spark Arrestor PLN-530071544
...
3
Kit-Muffler (Incl.1,2,4,5) PLN-530071672
...
4
Bolt-Muffler PLN-530016338
...
5
Gasket-Muffler (kit) PLN-530071363
...
6
Screw-Cylinder PLN-530015953
...
7
Spark Plug (RCJ 6Y) PLN-952030249
...
8
Kit - Cylinder PLN-530071668
...
9
Gasket-Cyl./Carb.(kit) PLN-530071363
...
10
CARBURETOR ADAPTOR PLN-545030402
...
11
Screw PLN-530016309
...
12
Gasket-Carb. (kit) PLN-530071363
...
13
Kit-Carb.(C1Q-W10B) PLN-530071628
...
14
Choke Plate Mounting PLN-530038747
...
15
Shutter-Choke PLN-530038686
...
16
Air Box PLN-530052431
...
17
Screw PLN-530016353
...
18
Plate - Filter Support PLN-530036569
...
19
Foam-Air Filter PLN-530036575
...
20
Cover-Air Filter PLN-530054414
...
21
Screw PLN-530015892
...
22
Spacer-Choke PLN-530015852
...
23
Washer PLN-530015254
...
24
Kit-Piston (Incl. 25, 26 & Pin) PLN-530071833
...
25
RING PISTON PLN-545154001
...
26
Retainer-Piston Pin PLN-530015162
...
27
CONNECTING ROD ASSY PLN-530049817
...
28
Seal-Cylinder (kit) PLN-530071363
...
29
Ignition Module PLN-530055160
...
30
Screw PLN-530016357
...
31
SWITCH, GROUND WIRE PLN-581425901
...
32
Assy-Leadwire PLN-530014663
...
33
Assy-Nose Cone Clamp (Incls. 34 & 35) PLN-530056365
...
34
Screw-Nose Cone PLN-530016381
...
35
Nut-Nose Cone PLN-530016382
...
36
Kit-On/Off Switch PLN-530071356
...
37
Handle-Starter PLN-530027569
...
38
Kit - Rope PLN-530069232
...
39
Screw PLN-530016080
...
40
Coupling-Drive PLN-530038604
...
41
Retain. Ring-C'shaft PLN-530015941
...
42
Outer Bearing PLN-530055728
...
43
Kit-C'case Seal PLN-530071615
...
44
Inner Bearing PLN-530032125
...
45
Shroud-Rear PLN-530056710
...
46
Screw PLN-530015934
...
47
SCREW PLN-530016386
...
48
Screw PLN-530015880
...
49
Shield-Heat PLN-530055351
...
50
Screw PLN-530015805
...
51
O-Ring-C'case (kit) PLN-530071363
...
52
Assy-Crankshaft PLN-530054753
...
53
Assy-Crankcase (Incl. 42-44) PLN-530012510
...
54
Assy-C'case & C'shaft (Incl. 41,52,53) PLN-530071669
...
55
FLYWHEEL ASSY PLN-545221701
...
56
Washer-Flat PLN-530015828
...
57
Screw PLN-530015775
...
58
Retainer-Can PLN-530027523
...
59
STARTER PULLEY KIT (Incl. 39) PLN-530071786
...
60
STARTER SPRING PLN-545008010
...
61
Assy.-Fan Hsg PLN-530056706
...
62
SCREW PLN-530016386
...
63
Kit-Engine Gasket (Incl. 5,9,12,28,51) PLN-530071363
...
64
Screw PLN-530016379
...
65
Assy-Fuel Cap PLN-530014347
...
66
Assy-Fuel Pickup PLN-530095646
...
67
Kit-Fuel Line (Small) PLN-530069247
...
68
Kit-Fuel Line (Large) PLN-530069216
...
69
FUEL TANK ASSY (Incl. filter, lines & fuel cap) PLN-545103802

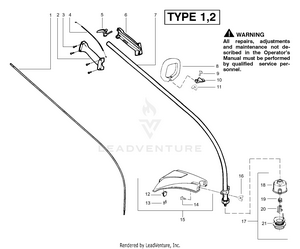

Handle & Shaft Assembly

...
...
1
Shaft Flex PLN-530095803
...
2
Throttle Hsg. (Right) PLN-530038581
...
3
Screw Throttle Hsg. PLN-530016349
...
4
Assy Throttle Cable PLN-530071548
...
5
Trigger PLN-530038682
...
6
Throttle Hsg. (Left) PLN-530038580
...
7
Assy Drive Shaft Hsg. PLN-530071315
...
8
Handle Assist PLN-530038584
...
9
Bolt Handle/Shield PLN-530015820
...
10
Clamp Handle PLN-530038599
...
11
Nut PLN-530091373
...
12
Line Limiter PLN-530052286
...
13
Screw Line Limiter PLN-530015886
...
14
Bolt Handle/Shield PLN-530015820
...
15
Kit Shield Assy (Incl. 12,13,14,16) PLN-530069759
...
16
Nut PLN-530091373
...
17
Accy W/E TNG 5 Cutting Head (Incl. 18-21) PLN-952711593
...
18
Assy Hub PLN-530095770
...
19
Spring Compression PLN-530401958
...
20
Clip Retainer Head PLN-530401957
...
21
Accy W/E Spool w/Line PLN-952701678
...
xx
Operator Manual Not Shown PLN-530163531
...
xx
Decal Start Inst. Not Shown PLN-530054864
...
xx
Decal Shaft Warning Not Shown PLN-530055350
...
...
...
