product name

Weed Eater XT250 Gas Trimmer Type 2

Model: XT250 Gas Trimmer Type 2

Save
 Part Not Listed?Part Not Listed?
product name

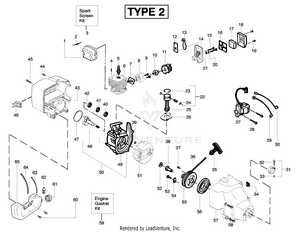

Engine Assembly Type 2

...
...
1
Kit - Muffler (incl. 2) PLN-530071396
...
2
Spring-Muffler PLN-530042088
...
3
Kit-Spark Arrestor PLN-530071391
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012416
...
7
Gasket-Cylind./Carb. PLN-530071363
...
8
Adapter-Carb. PLN-530057634
...
9
Screw PLN-530016014
...
10
Gasket-Carb. PLN-530071363
...
11
Kit-Carb. Walbro (WT-631) PLN-530071635
...
11
Kit-Carb. Zama (C1U-W7) PLN-530071630
...
12
Choke Plate Mounting PLN-530038747
...
13
Shutter-Choke PLN-530038686
...
14
Air Box PLN-530052431
...
15
Screw PLN-530016393
...
16
Plate - Filter Support PLN-530036569
...
17
Foam-Air Filter PLN-530036575
...
18
Cover-Air Filter PLN-530036568
...
19
Screw PLN-530016349
...
20
Spacer-Choke PLN-530015852
...
21
Washer PLN-530015254
...
22
Kit-Piston (Incl. 23, 24 ) PLN-530071833
...
23
RING PISTON PLN-545154001
...
24
Retainer-Piston Pin PLN-530015162
...
25
CONNECTING ROD ASSY PLN-530049817
...
26
Gasket-Cylinder PLN-530071363
...
27
Ignition Module PLN-530055160
...
28
Screw PLN-530016357
...
29
SWITCH, GROUND WIRE PLN-581425901
...
30
Assy-Leadwire PLN-530014663
...
31
Assy-Nose Cone Clamp (Incls. 32 & 33) PLN-530056365
...
32
Screw-Nose Cone PLN-530016381
...
33
Nut-Nose Cone PLN-530016382
...
34
Kit-Switch PLN-530071356
...
35
Handle-Starter PLN-530027569
...
36
Kit - Rope PLN-530069232
...
37
Screw PLN-530016080
...
38
Coupling-Drive PLN-530038604
...
39
Retain. Ring-C'shaft PLN-530015941
...
40
Outer Bearing PLN-530055728
...
41
Kit-C'case Seal PLN-530071615
...
42
Inner Bearing PLN-530032125
...
43
Shroud-Rear PLN-530056547
...
44
Screw PLN-530015934
...
45
SCREW PLN-530016386
...
46
Guard-Muffler PLN-530054536
...
47
O-Ring-C'case/Shrd PLN-530071363
...
48
Assy-Crankshaft PLN-530054753
...
49
Assy-Crankcase (Incl. 40-42) PLN-530071627
...
50
Assy-C'case & C'shaft (Incl. 39,48,49) PLN-530071624
...
51
FLYWHEEL ASSY PLN-545221701
...
52
Washer-Flat PLN-530015828
...
53
Screw PLN-530015775
...
54
Retainer-Can PLN-530027523
...
55
STARTER PULLEY KIT (Incl. 37) PLN-530071786
...
56
STARTER SPRING PLN-545008010
...
57
Assy.-Fan Hsg PLN-530071667
...
58
SCREW PLN-530016386
...
59
Kit-Engine Gasket (Incl. 7,10,26,47) PLN-530071363
...
60
Screw PLN-530016379
...
61
Assy-Fuel Cap PLN-530014347
...
62
Assy-Fuel Pickup PLN-530095646
...
63
Kit-Fuel Line (Small) PLN-530069247
...
64
Kit-Fuel Line (Large) PLN-530069216
...
65
FUEL TANK ASSY (incl. filter, lines & fuel cap) PLN-545103802

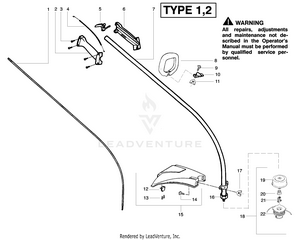

Handle & Shaft Assembly

...
...
1
Shaft-Flex PLN-530095803
...
2
Throttle Hsg. (Right) PLN-530038581
...
3
Screw-Throttle Hsg. PLN-530016349
...
4
Assy-Throttle Cable PLN-530071548
...
5
Trigger PLN-530038682
...
6
Throttle Hsg. (Left) PLN-530038580
...
7
Assy-Drive Shaft Hsg. PLN-530071315
...
8
Handle-Assist PLN-530038584
...
9
Bolt-Handle/Shield PLN-530015820
...
10
Clamp-Handle PLN-530038599
...
11
Nut PLN-530091373
...
12
Line Limiter PLN-530052287
...
13
Screw PLN-530015957
...
14
Bolt-Handle/Shield PLN-530015820
...
15
Kit-Shield Assy (Incl. 12,13,14,17) PLN-530069686
...
16
Dust Cup PLN-530095563
...
17
Wingnut-Handle/Shield PLN-530091373
...
18
Accy-TNG VI Cutting Head (Incl. 19-22) PLN-952711621
...
19
Kit-Hub Ass'y PLN-530071306
...
20
Spring-Compression PLN-530053241
...
21
Clip-Retainer-Head PLN-530401957
...
22
TNG 6 RH .080X25' PLN PLN-952701719
...
xx
Operator Manual Not Shown PLN-530163479
...
xx
Decal-Start Inst. Not Shown PLN-530054864
...
xx
Decal-Shaft Warning Not Shown PLN-530055350
...
...
...
