Weed Eater XT125TR Gas Trimmer

Model: XT125TR Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

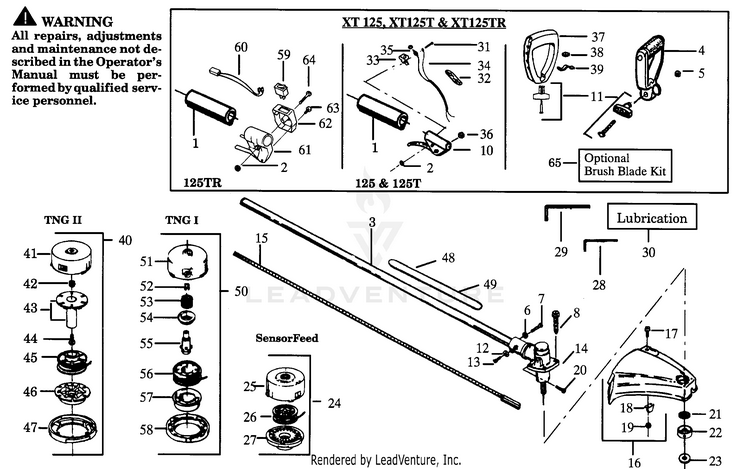

CUTTING HEAD & DRIVE SHAFT ASSEMBLY

...
...
1
Drive Shaft Pad Model XT125TR,XT125,XT125T PLN-530029445
...
2
Nut Model XT125TR,XT125,XT125T PLN-530015768
...
3
Drive Shaft Housing PLN-530094650
...
4
Handle Model XT125TR,XT125,XT125T PLN-530010957
...
5
Nut Model XT125TR,XT125,XT125T PLN-530015197
...
6
Lockwasher PLN-530001642
...
7
Screw PLN-530001711
...
8
Screw-Use w/Plastic Shield only PLN-530016107
...
10
Throttle Lever Ass'y. (Inc.2,31) Model XT125TR,XT125,XT125T PLN-530010959
...
11
HANDLE KIT PLN-530069347
...
12
Lockwasher PLN-530015328
...
13
Screw PLN-530094612
...
14
GEAR BOX REPLACEMENT KIT PLN-530071781
...
15
Drive Shaft PLN-530094566
...
16
Shield Kit Ass'y. (Inc.17,18,19) PLN-530069256
...
17
Screw PLN-530015037
...
18
Line Limiter PLN-530094570
...
19
Nut PLN-530403094
...
20
Screw PLN-530094616
...
21
Seal PLN-530094640
...
22
Dust Cup PLN-530094639
...
23
Grass Washer PLN-530094571
...
24
Cutting Head Ass'y. (Inc.25-27) PLN-952701608
...
25
Accy--Cutting Head PLN-952711550
...
26
Spool w/Line PLN-952701607
...
27
Cover PLN-530094494
...
28
Hex Wrench (5/32) PLN-530031159
...
29
Hex Wrench (3/16) PLN-530031098
...
30
Shaft Lubrication PLN-952030139
...
31
Screw Model XT125,XT125T PLN-530015767
...
32
Terminal Lock Model XT125,XT125T PLN-530027893
...
33
Switch Bracket Model XT125,XT125T PLN-530029090
...
34
Wire Harness Ass'y. Model XT125,XT125T PLN-530029076
...
35
Spacer Model XT125,XT125T PLN-530027689
...
36
Switch- Plate and Nut PLN-530002582
...
37
Handle Model XT125TR,XT125,XT125T PLN-530014222
...
38
Nut Model XT125TR,XT125,XT125T PLN-530015610
...
39
Clamp Model XT125TR,XT125,XT125T PLN-530094742
...
40
Single Exit Cutting Head (Inc.41-47) PLN-530094954
...
41
Hub Ass'y. PLN-530014274
...
42
Spring PLN-530094956
...
43
Locking Plate Kit PLN-530069312
...
44
Screw PLN-530015542
...
45
Spool w/Line PLN-952701606
...
46
Release Button PLN-530094522
...
47
Cover PLN-530094521
...
48
Decal-Shaft Warning (Upper) PLN-530029162
...
49
Decal-Shaft Warning (Lower) PLN-530029163
...
50
Accy--Cutting Head PLN-952711550
...
51
Hub PLN-530071295
...
52
Line Saver PLN-530093898
...
53
Spring PLN-530340007
...
54
Cap Spring PLN-530328929
...
55
Hub PLN-530071295
...
56
Spool w/Line PLN-952701589
...
57
Release Button PLN-530401183
...
58
Cover PLN-530092133
...
59
Rocker Switch Model XT125TR PLN-530036493
...
60
Leadwire Model XT125TR PLN-530047160
...
61
Ass'y Throttle Housing Model XT125TR PLN-530014646
...
62
Switch Cover Model XT125TR PLN-530036855
...
63
Screw (Short) Model XT125TR PLN-530015932
...
64
Screw (Long) Model XT125TR PLN-530015933
...
65
Optional Brush Blade Kit Model XT125TR, XT125,XT125T PLN-952701661

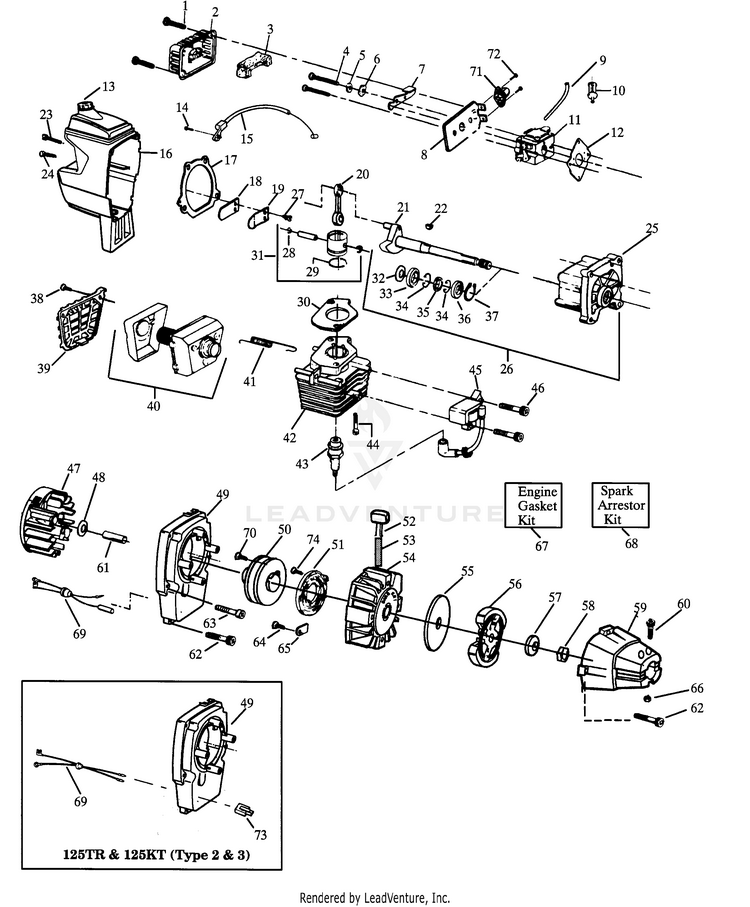

ENGINE & SHROUD

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Type 1 Model XT125, XT125T,XT125KT PLN-530027527
...
8
Type 1-2 Model XT125TR & Type 2-3 XT125KT PLN-530037930
...
9
Fuel Line PLN-530069247
...
9
Return Line Types 2 & 3 Model XT125TR,XT125KT PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
Type 1-2 Model XT125TR PLN-530069651
...
11
Type 2-3 (WT-298A) Model XT125KT PLN-530069651
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
Type 1 & 2 XT125,XT125T PLN-530037497
...
15
THROTTLE CABLE PLN-530095152
...
15
Type 1-2 Model XT125TR PLN-530047040
...
15
Type 2-3 Model XT125KT PLN-530047040
...
16
Type 1 Model XT125,XT125T,XT125KT PLN-530027982
...
16
Type 1-2 Model XT125TR PLN-530047086
...
16
Type 2-3 Model XT125KT PLN-530047086
...
17
Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Inc.Bearings) PLN-530010960
...
21
Crankshaft Ass'y. See Service Ref. 1 PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015771
...
25
Crankcase Ass'y. (Inc.33-36) PLN-530014016
...
26
Assy-C'case/C'shaft PLN-530071705
...
27
SCREW 6-19X.437 PLN-545227101
...
28
Piston Pin Retainer PLN-530015162
...
29
Piston Ring PLN-530025875
...
30
GASKET CYL W/ ADHESIVE PLN-530019267
...
31
Piston Kit PLN-530069899
...
33
Inner Bearing PLN-530032103
...
34
Retaining Ring PLN-530015787
...
35
Crankshaft Seal PLN-530019158
...
36
Outer Bearing PLN-530032102
...
37
Crankshaft Retaining Ring PLN-530015789
...
38
Screw PLN-530015717
...
39
Muffler Guard PLN-530027781
...
40
Muffler Kit PLN-530069310
...
41
Muffler Spring PLN-530036409
...
42
Cylinder PLN-530069626
...
43
Type 1 & 2 Model XT125,XT125T,XT125K,XT125KT PLN-530030077
...
43
Type 1 Model XT125TR PLN-530030077
...
43
Type 2 Model XT125TR PLN-530030075
...
43
Type 2-3 Model XT125KT PLN-530030075
...
44
Screw PLN-530015239
...
45
Ignition Module Kit PLN-530039134
...
46
Screw PLN-530015816
...
47
Flywheel Ass'y. PLN-530039189
...
48
Washer PLN-530016030
...
49
Fan Housing PLN-530027947
...
50
Kit-Starter Pulley PLN-530071387
...
51
STARTER SPRING PLN-545008010
...
52
Starter Handle PLN-530027569
...
53
Rope Kit PLN-530069232
...
54
Pulley Housing Ass'y. PLN-530014009
...
55
Clutch Washer PLN-530094189
...
56
Clutch Ass'y. Kit PLN-530069254
...
57
Washer PLN-530015796
...
58
Nut PLN-530001733
...
59
Clutch Housing PLN-530014017
...
60
Screw PLN-530015767
...
61
Spacer PLN-530027511
...
62
Screw PLN-530015770
...
63
Screw PLN-530015769
...
64
Screw PLN-530015496
...
65
Pulley Retainer PLN-530027523
...
66
Locknut PLN-530015768
...
67
Engine Gasket Kit (Inc.12,17,30) PLN-530069276
...
68
Spark Arrestor Kit PLN-952701612
...
69
Type 1 Model XT125,XT125T,XT125K,XT125KT PLN-530027690
...
69
Type 1-2 Model XT125TR PLN-530047145
...
69
Type 2-3 Model XT125KT PLN-530047145
...
70
Screw-Pulley PLN-530016080
...
71
Primer Bulb Ass'y. Type 1-2 Model XT125TR PLN-530038874
...
71
Type 2-3 Model XT125KT PLN-530038874
...
72
Screw-Primer Type 1-2 Model XT125TR PLN-530016091
...
72
Type 2-3 Model XT125KT PLN-530016091
...
73
Connector Type 1-2 Model XT125TR PLN-530038205
...
73
Type 2-3 Model XT125KT PLN-530038205
...
74
Screw-Starter Spring Type 2 Model XT125TR PLN-530015882
...
74
Type 3 Model XT125KT PLN-53015882
...
xx
Type 1 Model XT125,XT125T Not Shown. PLN-530029104
...
xx
Type 2 Model XT125T Not Shown. PLN-530037985
...
xx
Type 1 Model XT125K,XT125KT Not Shown. PLN-530029172
...
xx
Types 2 & 3 Model XT125KT Not Shown. PLN-530038042
...
xx
Model XT125TR Decal (Not a serviceable part) Not Shown. PLN-530037986
...
xx
Model XT125,XT125T,XT125TR Not Shown. PLN-530014013
...
xx
Type 1 Model XT125K,XT125KT Not Shown. PLN-530014175
...
xx
Types 2 & 3 Model XT125KT Not Shown. PLN-530047135
...
xx
Model XT125,XT125 Not Shown. PLN-530067341
...
xx
Type 1 Model XT125T,XT125KT Not Shown. PLN-530081843
...
xx
Type 2 Model XT125KT Not Shown. PLN-530083225
...
xx
Type 3 Model XT125KT Not Shown. PLN-530083673
...
xx
Model XT125TR Not Shown. PLN-530082382
...
...
...
