Weed Eater XT-20 Gas Trimmer

Model: XT-20 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

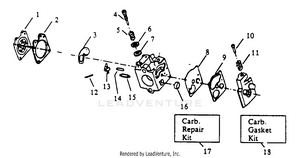

CARBURETOR BREAKDOWN

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
11
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
12
Metering Lever Spring Included in Carburetor Kwik Repair Kit. PLN-530035188
...
13
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
14
Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
15
PUMP DIAPHRAGM PLN-504130807
...
16
GASKET PLN-504130906
...
17
Carb. Kwik Repair Kit PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit PLN-530035185

CARBURETOR WA-11 BREAKDOWN

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
Circuit Plate Gasket PLN-530035211
...
4
Mixture Needle PLN-530035212
...
5
Needle Spring-Low Speed PLN-530035293
...
6
Mixture Needle Washer PLN-530035217
...
7
"O" Ring Mixture PLN-530035218
...
8
PUMP DIAPHRAGM PLN-504130807
...
9
GASKET PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
13
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
14
Metering Lever Spring Included in Carburetor Kwik Repair Kit. PLN-530035188
...
15
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
16
Fuel Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
17
Carb. Kwik Repair Kit PLN-530035264
...
18
Gasket Diaphragm Kit PLN-530069844

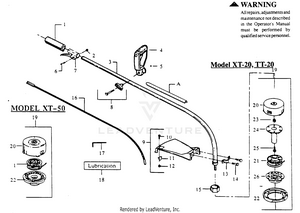

CUTTING HEAD & DRIVE SHAFT

...
...
1
Grip PLN-530029445
...
2
Nut PLN-530015768
...
3
Model XT-20,TT-20 PLN-530094754
...
3
ASM-DR.SHAFT W/SHIELD PLN-530071371
...
4
Handle Assy. PLN-530010957
...
5
Nut PLN-530015197
...
6
Screw PLN-530015774
...
7
Throttle Housing Assy. PLN-530010959
...
8
HANDLE KIT PLN-530069347
...
9
Shield Kit Ass'y. (Inc.10,11,12,14) PLN-530069249
...
10
Screw PLN-530015337
...
11
Line Limiter PLN-530094570
...
12
Nut PLN-530403094
...
13
Shield Bracket PLN-530093653
...
14
Screw PLN-530016107
...
15
Dust Cap PLN-530094543
...
16
Model XT-20,TT-20 PLN-530094671
...
16
Model XT-50 PLN-530094551
...
17
Hex Wrench (5/32) PLN-530031159
...
18
LUBE, FLEX SHAFT NLA PLN-952708514
...
19
Model XT-20,TT-20 PLN-530702555
...
19
Model XT-50 PLN-952702553
...
20
Model XT-20,TT-20 PLN-530094562
...
20
Model TT-50 PLN-530094620
...
21
Model XT-20, TT-20, TT-50 PLN-952702556
...
22
Model XT-20,TT-20 PLN-530094521
...
22
Model TT-50 PLN-530094494
...
23
Spring PLN-530094956
...
24
Kit-Locking Plate PLN-530069312
...
25
Screw Model XT-20,TT-20 PLN-530015542
...
26
Release Button Model XT-20,TT-20 PLN-530094522
...
A
Warning Decal PLN-530027871

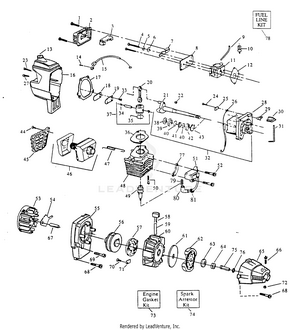

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer-Choke PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530027526
...
8
Air Filter Plate PLN-530027527
...
9
Fuel Line Kit PLN-530021076
...
10
Assy-Fuel Pickup PLN-530095646
...
11
Model XT-20,TT-20 (WA-207) PLN-530035262
...
11
KIT CARBURETOR ASSY PLN-545081825
...
12
Carburetor Gasket PLN-530019156
...
13
Assy-Fuel Cap PLN-530014347
...
14
Screw PLN-530015775
...
15
Model XT-20,TT-20 PLN-530027955
...
15
Throttle Cable Ass'y., Model 114 PLN-530037497
...
16
Model XT-20 PLN-530027982
...
16
Model XT-50 PLN-530027982
...
17
Crankcase/Shroud Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Model XT-20,TT-20 PLN-530014005
...
20
Model XT-50 PLN-530010960
...
21
Model XT-20,TT-20 PLN-530010945
...
21
Model XT-50 PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015780
...
25
Kill Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
Screw PLN-530015771
...
28
Crankcase Assy. (Inc.39 - 42) PLN-530014016
...
29
Kill Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Kill Switch Spring PLN-530027959
...
32
Model XT-20,TT-20 PLN-530014004
...
32
Assy-C'case/C'shaft PLN-530071705
...
33
Screw PLN-530015241
...
34
Piston Pin Retainer PLN-530015162
...
35
Model XT-20,TT-20 PLN-530026413
...
35
Model XT-50 PLN-530025875
...
36
GASKET CYL W/ ADHESIVE PLN-530019267
...
37
Model XT-20,TT-20 PLN-530069274
...
37
Piston Kit PLN-530069899
...
38
Spacer PLN-530015788
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027881
...
46
Muffler Kit PLN-530069310
...
47
Muffler Spring PLN-530036409
...
48
CYLINDER PLN-530012349
...
48
Model XT-50 PLN-530012235
...
49
Spark Plug PLN-530030077
...
50
Screw PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Model XT-20,TT-20 PLN-530015776
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y PLN-530039189
...
54
Washer PLN-530016030
...
55
Model XT-20,TT-20 PLN-530014045
...
55
Model XT-50 PLN-530027948
...
56
Starter Pulley PLN-530027522
...
57
SPRING STARTER PLN-545008015
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Pulley Housing Assy. Model XT-50 PLN-530014009
...
61
Clutch Washer Model XT-50 PLN-530094189
...
62
Clutch Assy. Kit Model XT-50 PLN-530069254
...
63
Washer Model XT-50 PLN-530015796
...
64
Nut Model XT-50 PLN-530001733
...
65
Clutch Housing Model XT-50 PLN-530014017
...
66
Screw PLN-530015767
...
67
Spacer Model XT-50 PLN-530027511
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
Drive Coupling Model XT-20,TT-20 PLN-530027953
...
76
Washer Model XT-20,TT-20 PLN-530015127
...
77
Spacer Model XT-20,TT-20 PLN-530027525
...
78
Fuel Line Kit PLN-530069247
...
79
Spark Plug Boot PLN-507475326
...
80
Boot, Spark Plug PLN-530003934
...
81
Grommet - Plug Wire PLN-530024435
...
...
...
