Weed Eater XR-95 Gas Trimmer

Model: XR-95 Gas Trimmer

Save
Part Not Listed?Part Not Listed?
product name

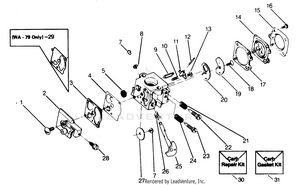

CARBURETOR WA-149 & WA-79 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017

...
2
WA-149 (#35183) PLN-530035191


...


...
4
PUMP DIAPHRAGM PLN-504130807


...
5
Screen-Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178

...
7
Screw - Throttle Shaft Included in Carburetor Kwik Repair Kit. PLN-530035015

...
8
Clip - Throttle Shaft PLN-530035007

...
9
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001

...
10
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188

...
11
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127

...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125

...
13
Screw - Metering Lever Pin PLN-530035016

...
14
DIAPHRAGM PLN-503896701

...
15
Cover - Metering Diaphragm PLN-530035149

...
16
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153

...
17
Gasket - Metering Diaphragm PLN-530035151

...
18
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137

...
19
Plate - Circuit PLN-530035042

...
20

...
21
Spring - Hi Speed Needle PLN-530035036

...
22

...
23
Needle - Idle PLN-530035141

...
24
Spring - Idle Needle PLN-530035023

...
25
Shaft Assembly - Throttle PLN-530035132

...
26
Spring - Throttle Return PLN-530035138

...
27
Valve - Throttle PLN-530035133

...
28
Screw - Idle Adjustment PLN-530035156

...
29
Diaphragm - Pump (WA-79 only) PLN-530035135

...

...
30
WA-149 (#35183) PLN-530035185

...
30
WA-79 Included in Carburetor Kwik Repair Kit. PLN-530035145

...
30
Gasket Diaphragm Kit Included in Carburetor Kwik Repair Kit. PLN-530069844

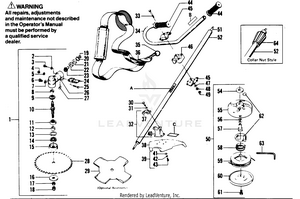

CUTTING HEAD(S) & DRIVE SHAFT

...
...
1
Gear Box Ass'y w/fasteners (Inc. 2-27) PLN-530093744

...
2
Lockwasher - Housing Bolt PLN-530091578

...
3
Bolt - 6 x 12mm PLN-530091579

...
4
Nut - 6mm - Housing (Gear Box) PLN-530093703

...
5
Lockwasher - 6mm - Housing (Gear Box) PLN-530091578

...
6

...

...
8
Bearing - Gear Box PLN-530091586

...
9
Gear - Bevel PLN-530091587

...
10
Shaft - Splined Drive PLN-530091588

...
11
Ball Bearing PLN-530091598

...
12
Collar - Shaft PLN-530091591

...
13
Snap Ring PLN-530091592

...
14

...
15
Blade Adaptor - Upper PLN-530092143

...
16
Blade Adaptor - Lower PLN-530091594

...
17


...
19
Snap Ring - Gear Housing PLN-530091573

...
20
Snap Ring - Gear Housing Bearing PLN-530091574

...
21
Bearing - Sealed Pinion Gear PLN-530091575

...
22
Bearing - Pinion Gear PLN-530092329

...
23
Pinion Gear PLN-530091576

...
24
Bracket-Shield to Gear Box,See Service Ref. 1 PLN-530093706

...
25
Bolt 6 x 42mm - Housing (Gear Box) PLN-530093704

...
26
Housing - Gear Box PLN-530091585

...
27
Fiber - Filler Washer PLN-530091584

...
28
10" Brush Blade PLN-530092155

...
29
8" Weed Blade (Optional) PLN-530092154

...
30
Bolt - 5 x 25mm PLN-530091616

...
31
Washer - 5mm PLN-530091615

...
32
Shield Mounting Bracket Ass'y (Inc. 37 & 40) PLN-530091569

...
33
Bolt - #1/4 - 20 x 1 - 7/8" - Handlebar PLN-530015405

...
34
Handlebar PLN-530010723

...
35
Key Ring - Shoulder Strap PLN-530092231

...
36
Shoulder Strap PLN-530094417

...
37
Shield Mounting Bracket - Top PLN-530091613

...
38
Shield w/fasteners PLN-530093743

...
39
Shield Mounting Kit (Inc.41,42,43 - 4 each) PLN-530091572

...
40
Shield Mounting Bracket - Bottom PLN-530091614

...
41
Washer - 4mm - Flat PLN-530091622

...
42
Lockwasher - 4mm PLN-530091623

...
43
Screw - 4mm x 16mm PLN-530093705

...
44
Grip - Handlebar PLN-530092086

...
45
Handlebar Clamp PLN-530092079

...
46
Handlebar Block PLN-530092084

...
47
Washer - Handlebar PLN-530001503

...
48
Lockwasher - Handlebar PLN-530001642

...
49
Nut - #1/4 - 20 PLN-530015197

...
50
Cutting Head Assembly (Inc. 54-63) PLN-530093954

...
51
Drive Shaft PLN-530093087

...
52
Collar Nut Style (Inc.64) PLN-530092113

...
52
Pinch Clamp Style PLN-530010622

...
54


...
56
Line Saver PLN-530091425

...
57
Drive Adaptor PLN-530091423

...
58

...
59
Spool w/line PLN-952701526

...
60
Cover - Cutting Head PLN-530091424

...
61
Screw - #3/8 - 16 x 7/8" - Cover PLN-530091662

...
62
Release Button Ass'y (Incl. Lock Ring) PLN-530093602

...
63
Allen Wrench - Cutting Head PLN-530091663

...
64
Collar Nut PLN-530011726

...
A
Model XR-90 PLN-530024693

...
A
Model XR-95,XR-100 PLN-530026226

...
B
Model XR-90 PLN-530024694

...
B
Model XR-95 PLN-530026229

...
B
Model XR-100 PLN-530026225

...
C
Decal Blade Rotation Warning PLN-530024886

...
xx
Model XR-90 Not Shown. PLN-530064696

...
xx
Model XR-95 Not Shown. PLN-530066089

...
xx
Model XR-100 Not Shown. PLN-530066530

...
xx
Model XR-100 Carton (Not a serviceable part) Not Shown. PLN-530060812

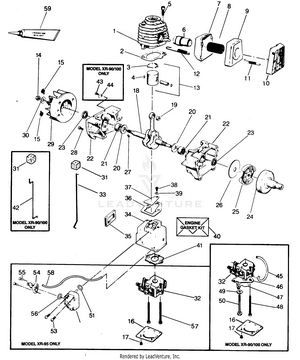

POWER UNIT

...
...
1
Model XR-90,XR-95 PLN-530012071

...
1
Model XR-100 PLN-530012070

...
2
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219

...
3
Model XR-90,XR-95 PLN-530024929

...
3
Model XR-100 PLN-530024302

...
4
Retainer - Wrist Pin PLN-530015162

...
5
Screw #1/4 - 20 x 3/4" - Hex Soc. Hd. - Cylinder PLN-530015239

...
6
Diffuser - Muffler PLN-530024363

...
7
Body - Muffler PLN-530024362

...
8
Screen - Spark Arresting PLN-530024364

...
9
Cover - Muffler PLN-530024361

...
10
Guard - Muffler PLN-530024885

...
11
Spring - Muffler Guard PLN-530024932

...
12
Spring - Muffler Attachment PLN-530026621

...
13
Model XR-90,XR-95 PLN-530022238

...
13
Model XR-100 PLN-530022198

...
14
Nut - Flywheel PLN-530626605

...
15
Spring - Starter Dog PLN-530042049

...
16
Model XR-95,XR-100 PLN-530026029

...
17
Screw - #8 - 18 x 9/16" - Pan Hd.- Carburetor Case Cover PLN-530015235

...
18
Ass'y. - Crankshaft & Rod PLN-530022202

...
19
Bearing - Wrist Pin PLN-530032057

...
20
Washer - Thrust - Crankcase PLN-530015351

...
21
Crankshaft Bearing PLN-530032029

...
22
Crankcase Ass'y. (Inc.21, 23 & Qty. 4 of #28) PLN-530010316

...
23
Seal-Crankcase Included in Engine Gasket Kit. PLN-530019059

...
24
Drum & Coupling Assembly PLN-530010796

...
25
Kit - Clutch Assembly (Incl. Clutch Washer) - See Service Ref. 7 PLN-530069195

...
25
Kit - Clutch Assembly (Incl. Clutch Washer) - Model XR-90, See Service Ref. 2 PLN-530069195

...
26
Kit - Clutch Washer PLN-530069196

...
27
Key - Flywheel PLN-530015126

...
28
Screw - #10 - 24 x 5/8" Fil. Hd. - Crankcase PLN-530015168

...
29
Flywheel Assembly (Inc.15) PLN-530039114

...
30
Washer - Flywheel PLN-530015127

...
31
Boot - Throttle/Choke Wire Included in Engine Gasket Kit. PLN-530023373

...
32
Carburetor. See Service Ref. 3 - Model XR-90 PLN-530035183

...
33
Model XR-95 PLN-530026177

...
33
Model XR-90,XR-100 PLN-530024902

...
34
Model XR-95 PLN-530026046

...
34
Model XR-90,XR-100 PLN-530024409

...
35
Seal - Carburetor Case Included in Engine Gasket Kit. PLN-530019105

...
36
Gasket - Carburetor Case to Crankcase PLN-530019108

...
37
Reed Valve PLN-530024438

...
38
Screw - #6 - 19 x 5/16" - Pan. Hd. - Reed Valve PLN-530015241

...
39
Washer - Reed Valve Screw PLN-530023367

...
40
Kit - Engine Gasket PLN-530069219

...
41
Gasket - Carburetor Included in Engine Gasket Kit. PLN-530019115

...
42
Model XR-100 PLN-530026236

...
43
Screw - #8 - 32 x 5/16" - Choke Wire Clamp PLN-530015004

...
44
Clamp - Choke Wire PLN-530024651

...
45
Fuel Line - Carburetor PLN-530021043

...
46
Model XR-100 PLN-530026237

...
47
Shutter - Choke PLN-530024558

...
48
Screw - #10 - 24 x 1-7/8" - Carburetor PLN-530015379

...
49
Washer - Wave PLN-530015254

...
50
Screw - #10 - 24 x 2-1/8" - Carburetor Shoulder PLN-530015404

...
51
O-Ring (Orifice) - See Service Ref.6 PLN-530019131

...
52
Accumulator Assembly (Inc.51 & 54) PLN-530010651

...
53
Screw - #8 - 18 x 1" - Accumulator PLN-530015565

...
54
Cap Assembly - Accumlator (Inc.56) PLN-530010677

...
55
Screw - #8 - 16 x 9/16" PLN-530015235

...
56
O-Ring (Accumulator Chamber) PLN-530019128

...
57
Screw #10 - 24 x 2-1/4" - Fil. Hd. - Carburetor PLN-530015566

...
58
Fuel Line - Carburetor PLN-530021055

...
59
Sealant - Crankcase (Not supplied with unit) PLN-530030054

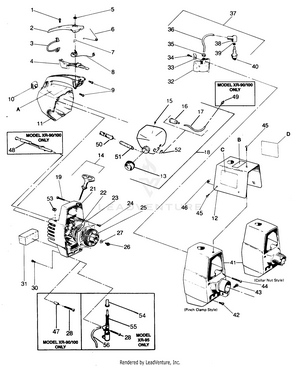

STARTER & SHROUD

...
...
1
Screw - #8 - 16 x 3/4" Pan Hd. - Handle Cover PLN-530015247

...
2
Handle Cover PLN-530024665

...
3
Wire - Lead - Grounding Switch PLN-530039122

...
4
Throttle Trigger PLN-530024365

...
5
Switch- Plate and Nut PLN-530002582

...
6
Spring - Trigger PLN-530024461

...
7
Washer - Grounding Switch PLN-530024569

...
8
Kit - Grounding Switch (Inc.3,5,7,33) PLN-530069182

...
9
Screw-Line Limiter PLN-530015814

...
10
Bumper - Fuel Tank Hsg. PLN-530024436

...
11
Handle & Fuel Tank Hsg. PLN-530024656

...
12
Heat Shield PLN-530092094

...
13
Assy-Fuel Cap PLN-530014347

...
15
Duckbill Valve - Fuel Tank PLN-530026119

...
16
Model XR-90/100 PLN-530091878

...
16
Model XR-95 PLN-530026931

...
17
Model XR-95 PLN-530021054

...
17
Model XR-90/100 PLN-530021042

...
18
Model XR-90,XR-100 (Inc.13,15,16,17) PLN-530010776

...
18
Model XR-95 (Inc.13,15,16,17,41,42) PLN-530010773

...
21
Kit - Fan Housing PLN-530069178

...
22
KIT STARTER SPRING PLN-545008009

...
23
Air Baffle PLN-530026035

...
25
Models XR-95,XR-100 PLN-530026048

...
27
Washer - #10 - Starter Pulley Screw PLN-530015123

...
30
Air Filter PLN-530024371

...
32
Kit-Ignition Module PLN-530069181

...
33
Electrical Tab PLN-530025995

...

...
35
Grommet - Plug Wire PLN-530024435

...
36
High Tension Lead Wire PLN-530039082

...
37
High Tension - Lead Ass'y. - (Inc.36,38,39) PLN-502039103

...
38
Boot - Spark Plug PLN-530003934

...
39
Spark Plug Boot PLN-507475326

...
40
Spark Plug (CJ-14) PLN-530030077

...
41
Pinch Clamp Style PLN-530011799

...
41
Collar Nut Style PLN-530011742

...
42
Screw - #10 - 24 x 5/8" Shroud Bottom PLN-530015168


...
xx
HAND GUARD PLN-506093802

...
44
Screw - #10 - 24 x 1-1/2" - Shroud Top PLN-530015376

...
45
Screw - #10 - 24 x 3/8" Heat Shield PLN-530015192


...
47
Spacer - Air Baffle PLN-530026122

...
48
Choke Knob PLN-530024303

...
49
Fuel Line Fitting PLN-530025472

...
50
Filter - Fuel (Inlet Line) PLN-530026109

...
51
Line - Fuel Inlet PLN-530021052

...
52
Clip - Retainer - Inlet Line - Fuel Tank PLN-530026178

...
53
Bearing - Nyliner PLN-530026118

...
54
Injector Button PLN-530026032

...
55
Pump Assembly (Inc.56) PLN-530010738

...
56
Line - Pump to Accumulator PLN-530021053

...
A
Model XR-90 PLN-530025175

...
A
Model XR-100 PLN-530026424

...
B
Model XR-95 PLN-530026511

...
A
Decal - Fuel Mix Warning - Model XR-95 PLN-530026444

...
C
Model XR-90 PLN-530024587

...
C
Model XR-95 PLN-530026143

...
C
Model XR-100 PLN-530026801

...
D
Model XR-90 PLN-530024588

...
D
Model XR-95 PLN-530026144

...
D
Model XR-100 (Not a serviceable part) PLN-530026802
...
...
...
