Weed Eater XR-20 Gas Trimmer

Model: XR-20 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

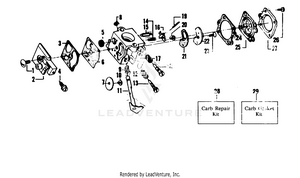

CARBURETOR BREAKDOWN

...
...
1
Pump Cover Screw PLN-530035017
...
2
Pump Cover Ass'y. (Inc.4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Idle Adjustment Screw PLN-530035156
...
5
Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Throttle Valve PLN-530035133
...
8
Throttle Shaft Clip PLN-530035007
...
9
Throttle Return Spring PLN-530035138
...
10
Throttle Valve Screw PLN-530035015
...
11
Shaft Ass'y. - Throttle PLN-530035132
...
12
Idle Needle Spring PLN-530035023
...
13
Idle Needle PLN-530035141
...
14
WT-141 - T1 PLN-530035188
...
15
Needle PLN-503117001
...
16
Metering Lever PLN-505520127
...
17
Hi Speed Needle Spring PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Metering Lever Pin Screw PLN-530035016
...
21
GASKET PLN-501781301
...
22
Circuit Plate PLN-530035042
...
23
Circuit Plate Screw Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Metering Diaphragm Gasket PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Metering Cover & Throttle Shaft Clip Ass'y. Screw PLN-530035153
...
27
Metering Diaphragm Cover PLN-530035149
...
28
Carb Kwik Repair Kit PLN-530035185
...
29
Gasket Diaphragm Kit PLN-530069844

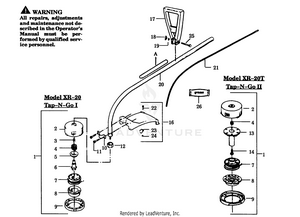

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Ass'y. See Service Ref. 5 PLN-952701604
...
2
Hub PLN-530071295
...
2
Model XR-20T PLN-530094562
...
3
Line Saver-Model XR-20 Only PLN-530093898
...
4
Spring PLN-530340007
...
4
Spring PLN-530094956
...
5
Cap Spring PLN-530328929
...
6
Drive Gear-Model XR-20 Only PLN-530093897
...
7
Model XR-20 PLN-952701523
...
7
Model XR-20T PLN-952701606
...
8
Tap Button PLN-530401183
...
8
Model XR-20T PLN-530094522
...
9
Model XR-20 PLN-530092133
...
9
Model XR-20T PLN-530094521
...
10
Shield Bracket PLN-530093653
...
11
Screw PLN-530016107
...
12
Dust Cup PLN-530093716
...
13
Kit-Locking Plate PLN-530069312
...
14
Screw-Model XR-20T Only PLN-530015542
...
16
Model XR-20T PLN-530069249
...
17
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496
...
18
Wing Nut PLN-530091373
...
19
Washer PLN-530092062
...
20
Model XR-20-T 1 & 3 PLN-530093943
...
20
Model XR-20-T 2; Model XR-20T-T 1 PLN-530094436
...
21
Flex Shaft Ass'y. PLN-530093935
...
22
Screw PLN-530015337
...
23
Model XR-20 PLN-530093853
...
23
Model XR-20T PLN-530094570
...
24
Nut PLN-530403094
...
25
Screw PLN-530015737
...
26
LUBE, FLEX SHAFT NLA PLN-952708514
...
A
Safety Label Decal PLN-530029159
...
A
Model XR-20 Not Shown. PLN-530066928
...
A
Model XR-20T Not Shown. PLN-530067064
...
xx
Model XR-20 PLN-530060766
...
xx
Model XR-20T Carton (Not a serviceable part) PLN-530061004

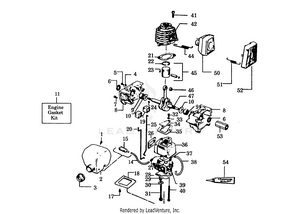

POWER UNIT

...
...
1
Check Valve Duck Bill PLN-530026119
...
2
Fuel Tank Ass'y. PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Choke Wire Clamp PLN-530024651
...
5
Screw PLN-530015004
...
6
Crankcase Seal Included in Engine Gasket Kit. PLN-530019059
...
7
Screw PLN-530015369
...
8
Crankcase Ass'y. (Inc.6,7, & 9) PLN-530010757
...
9
Crankcase Bearing PLN-530032029
...
10
Washer PLN-530015351
...
11
Engine Gasket Kit PLN-530069219
...
14
Fuel Line-Model XR-20-Type 1 & 2 PLN-530069216
...
xx
Line Kit-Model XR-20-Type 3;Model XR-20T-T1 PLN-530069247
...
15
Model XR-20-T 1 & 2 PLN-530091878
...
15
Assy-Fuel Pickup PLN-530095646
...
17
Screw PLN-530015235
...
18
Carburetor Case Cover PLN-530026029
...
19
Choke Wire Throttle Boot PLN-530023373
...
20
Choke Wire Included in Engine Gasket Kit. PLN-530026236
...
21
Engine Gasket Kit PLN-530069219
...
22
Piston Ring Included in Engine Gasket Kit. PLN-530026413
...
23
Wrist Pin Retainer PLN-530015162
...
24
Flywheel Key PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Carburetor Case Seal PLN-530019105
...
27
Model XR-20-T1 & 2 PLN-530025472
...
27
Model XR-20-T3; Model XR-20T-T1 PLN-530026981
...
28
Choke Wire Guide Plate PLN-530026237
...
29
Choke Shutter PLN-530024558
...
30
Wave Washer PLN-530015254
...
31
Screw PLN-530015404
...
32
Screw PLN-530015241
...
33
Washer PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Gasket Included in Engine Gasket Kit. PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Carburetor Gasket Included in Engine Gasket Kit. PLN-530019157
...
38
Line Kit PLN-530069238
...
39
Carburetor PLN-530035183
...
40
Screw PLN-530015379
...
41
Screw PLN-530015239
...
42
CYLINDER PLN-530012349
...
44
Muffler Spring PLN-530036409
...
45
Piston Kit (Inc.22,23,Pin) PLN-530010753
...
46
Wrist Pin Bearing PLN-530032057
...
47
Crankshaft & Rod Ass'y. PLN-530026418
...
50
Model XR-20T PLN-530069243
...
51
Muffler Guard Spring PLN-530024932
...
52
Muffler Guard PLN-530024855
...
53
Drive Adaptor PLN-530093925
...
54
Crankcase Sealant PLN-530030054

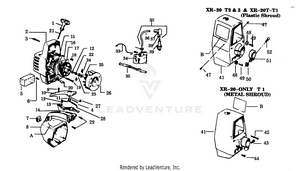

STARTER & SHROUD

...
...
1
Handle-Starter PLN-530027569
...
2
Fan Housing Kit (Inc.16,18,19,20,45) PLN-530069178
...
4
Switch Spring Insulation PLN-530021036
...
5
Air Filter PLN-530024371
...
7
Fuel Tank Housing Bumper PLN-530024436
...
8
Handle & Fuel Tank Housing PLN-530024656
...
9
Screw PLN-530015247
...
10
Handle Cover PLN-530024661
...
11
Kill Switch Button PLN-530026679
...
12
Kill Switch Washer PLN-530015123
...
13
Screw PLN-530015407
...
14
Throttle Trigger PLN-530024365
...
15
KIT STARTER SPRING PLN-545008009
...
16
Air Baffle PLN-530026035
...
17
Starter Pulley PLN-530026048
...
20
Spacer PLN-530026122
...
21
Rope Kit PLN-530069232
...
23
Flywheel Nut PLN-530626605
...
24
Spring-Starter Dog PLN-530023817
...
25
Washer PLN-530015127
...
26
Flywheel Ass'y. (Inc.24) PLN-530039114
...
27
Trigger Spring PLN-530024461
...
28
Kill Switch Spring PLN-530024407
...
29
Screw-Line Limiter PLN-530015814
...
30
High Tension Lead Ass'y. (Inc.36,37,38) PLN-530039103
...
33
Lead Wire Switch PLN-530024158
...
34
Module Kit PLN-530069181
...
35
Choke Knob PLN-530024303
...
36
High Tension Lead Wire PLN-530039082
...
37
Spark Plug Boot PLN-530003934
...
38
Spark Plug Boot PLN-507475326
...
39
Spark Plug PLN-530030077
...
41
Model XR-20-T 1 PLN-530012096
...
41
Model XR-20-T 2 & 3; Model XR-20T-T 1 PLN-530026547
...
42
Screw PLN-530015376
...
43
Pinch Clamp Bolt PLN-530093802
...
44
Screw PLN-530015168
...
47
Screw PLN-530015590
...
48
Washer PLN-530015274
...
49
Screw PLN-530015163
...
50
Nut PLN-530015610
...
51
Clamp PLN-530026560
...
52
Screw PLN-530015609
...
A
Model XR-20-T1 PLN-530026442
...
A
Model XR-20-T 2 PLN-530026636
...
A
Model XR-20-T3; Model XR-20T-T1 PLN-530027345
...
B
Model XR-20-T1 & 2 PLN-530026598
...
B
Model XR-20-T3; PLN-530027226
...
B
Model XR-20T-T1 PLN-530027631
...
B
Model XR-20-T1 & 2 (Not a serviceable part) PLN-530027559
...
B
Model XR-20-T3; PLN-530027227
...
B
Model XR-20T-T1 PLN-530027632
...
...
...
