product name

Weed Eater Solar Mower

Model: Solar Mower

Save
 Part Not Listed?Part Not Listed?
product name

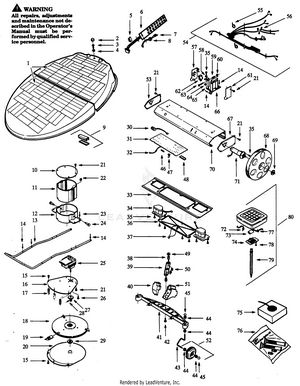

ASSEMBLY

...
...
1
Solar Cell Kit PLN-535043401
...
2
Cover-Shock Screw PLN-535037601
...
3
Screw-Shock Top PLN-724133101
...
4
Washer-Top Shock PLN-535037501
...
6
Keyboard PLN-535033501
...
7
On/Off Switch PLN-535034401
...
8
Switch Nut PLN-535036801
...
9
Wire Connection Protector PLN-535031301
...
10
Top Motor Housing PLN-535035201
...
11
Blade Motor Housing PLN-535034701
...
12
Blade Motor Mount PLN-535035101
...
13
Frame PLN-535030901
...
14
Pop Rivet PLN-722783309
...
15
Screw PLN-535033901
...
16
Bottom Motor Plate PLN-535034801
...
17
Spacer Motor Plate PLN-535037201
...
18
Cutting Disc Assembly PLN-535035801
...
19
Blade Kit (3 blades) PLN-535043201
...
20
Skid Plate PLN-535037301
...
21
Screw PLN-535036101
...
22
Square Nut PLN-535042001
...
23
Pop Rivet PLN-722783009
...
24
Adjusting Screw PLN-535035601
...
25
Cutting Motor PLN-535034901
...
26
Motor Mount Screw PLN-535035001
...
27
Hub PLN-535035701
...
28
Set Screw PLN-728828301
...
29
Hub Nut PLN-535034301
...
30
Alarm PLN-535034501
...
31
Circuit Board PLN-535034601
...
32
Ground Wire PLN-535039701
...
33
Cover-Electric Housing PLN-535032201
...
34
Battery Pack PLN-535043501
...
35
Screw PLN-535033301
...
36
Cover-PC Board PLN-535043301
...
37
Moisture Sensor Wire PLN-535038801
...
38
Vibration Mount PLN-501530501
...
39
Bracket PLN-535031701
...
40
Sensor Cover PLN-535042201
...
41
Front Axle PLN-535031001
...
42
Shock Screw PLN-724132701
...
43
Wheel Spindle PLN-535031501
...
44
Bearing PLN-738229455
...
45
Cover-Bearing PLN-535031601
...
46
Fuse PLN-535043601
...
47
Spring Clip PLN-535031101
...
48
Microcopressor PLN-535031201
...
49
Washer PLN-535045001
...
50
Locknut PLN-732211401
...
51
Sensor PLN-535032001
...
52
Front Wheel Assembly PLN-535031401
...
53
Left Gable PLN-535033801
...
54
Wire Harness PLN-535038301
...
55
Tie Strap PLN-534134704
...
56
Wire Connector PLN-535038601
...
57
Right Cover PLN-535032801
...
58
Washer PLN-734484801
...
59
Spring-Microswitch PLN-535033001
...
60
Adjusting Nut PLN-535033101
...
61
Cover Left PLN-535032701
...
62
Microswitch PLN-535032501
...
63
Screw PLN-535033701
...
64
Locknut PLN-732251201
...
65
Bracket Microswitch PLN-535032901
...
66
Bracket Microswitch PLN-535032401
...
67
Right Gable PLN-535033802
...
68
Drive Wheel PLN-535034101
...
69
Hub Nut PLN-535034301
...
70
Electric Housing PLN-535032101
...
71
Drive Motor PLN-535034001
...
72
Generator Switch PLN-535041801
...
73
Generator Battery PLN-535040601
...
74
Generator Battery Cover PLN-535040701
...
75
Boundary Wire PLN-535041601
...
76
Splice Kit PLN-535044301
...
77
Grommet PLN-501430001
...
78
Screw PLN-729522471
...
79
Generator Stake PLN-535040501
...
80
Generator Assembly PLN-535037401
...
0
Operator Manual PLN-101877627
...
...
...
