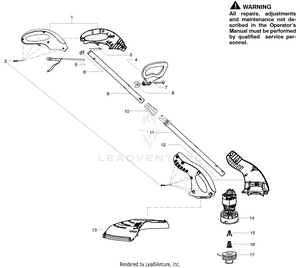

product name

Weed Eater RT112C Electric Trimmer

Model: RT112C Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

Product Complete

...
...
1
Assy-Handle Set PLN-545077901
...
2
Screw (10pcs.) PLN-530016120
...
3
Trigger PLN-530403818
...
4
Assy-Handle Assist (Incl. 7,8) PLN-530403996
...
5
Wire Harness (Incl. #6) PLN-545090401
...
6
Switch PLN-530402879
...
7
Bolt-Carriage PLN-530403886
...
8
Nut PLN-530091373
...
9
Assy-Upper Tube PLN-545088401
...
10
Nut-Collett PLN-545045101
...
11
Assy-Lower Tube PLN-545088501
...
12
Housing Set PLN-545076101
...
13
Assy-Shield (Incl. line limiter) PLN-530404076
...
14
Motor/Hub Ass'y PLN-530404110
...
15
Retainer-Spool PLN-530401957
...
16
Spring-Return PLN-530401958
...
17
Accy-Spool w/Line PLN-952701663
...
17
Operator Manual Not Shown PLN-545117537
...
17
Decal-Warning Not Shown PLN-545052901
...
...
...
