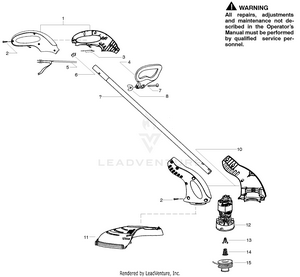

Weed Eater RT112 Electric Trimmer

Model: RT112 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

Product Complete

...
...
1
Assy-Handle Set PLN-530403945
...
2
Screw PLN-530016120
...
3
Trigger PLN-530403818
...
4
Handle-Assist PLN-530403805
...
5
Assy-Wiring Harness (Incl. #6) PLN-530403908
...
6
Switch PLN-530402879
...
7
Bolt-Carriage PLN-530403886
...
8
Nut PLN-530091373
...
9
Assy-Tube w/Decal PLN-530404073
...
10
Housing Set PLN-530403946
...
11
Assy-Shield (Incl. line limiter) PLN-530404076
...
12
Assy-Motor/Hub PLN-530404110
...
13
Retainer-Spool PLN-530401957
...
14
Spring-Return PLN-530401958
...
15
Accy-Spool w/Line PLN-952701663
...
15
Operator Manual Not Shown PLN-545117526
...
15
Decal-Warning Not Shown PLN-530404065
...
15
Decal-Housing (right) Not Shown PLN-530404001
...
15
Decal-Housing (left) Not Shown PLN-530404002
...
...
...
