Weed Eater MX557 Gas Trimmer

Model: MX557 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

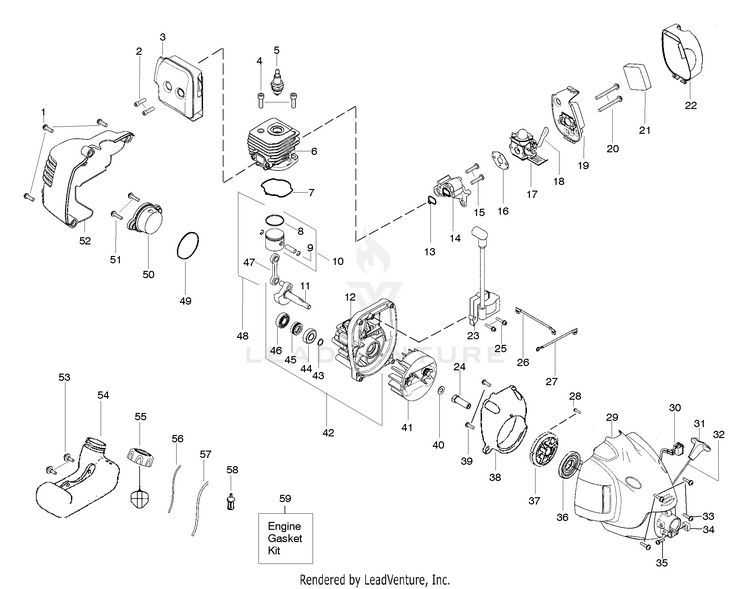

Engine Assembly

...
...
1
Screw PLN-530015880
...
2
Bolt-Muffler PLN-530058982
...
3
Assy-Muffler/Shield (Incl. 2) PLN-530057538
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012541
...
7
Seal-Cylinder (kit) PLN-530071750
...
8
RING PISTON PLN-545154001
...
9
Retainer-Piston Pin PLN-530015162
...
10
Kit-Piston (Incl. 8, 9) PLN-530071833
...
11
Assy-Crankshaft PLN-530012555
...
12
Assy-Crankcase (Incl. 44,45,46) PLN-530012582
...
13
Seal-Cyl/Carb. (kit) PLN-530071750
...
14
Adapter-Carb. PLN-530057547
...
15
Screw PLN-530016309
...
16
Gasket-Carb. (kit) PLN-530071750
...
17
KIT CARB ASSY # C1U-W24 Repair kits are not available for this carburetor PLN-530071822
...
17
KIT CARB ASSY # C1U-W24 Repair kits are not available for this carburetor PLN-530071822
...
18
Lever-Choke PLN-530057827
...
19
Air Box PLN-530057544
...
20
Screw PLN-530016429
...
21
Foam-Air Filter PLN-530036575
...
22
Cover-Air Box PLN-530058740
...
23
Kit - Ignition Module PLN-545081826
...
24
Coupling-Drive PLN-530027953
...
25
Screw PLN-530016357
...
26
Assy-Leadwire PLN-530014663
...
27
SWITCH, GROUND WIRE PLN-581425901
...
28
Screw PLN-530016391
...
29
Assy.-Fan Hsg PLN-530071732
...
30
Kit-Switch PLN-530071356
...
31
Handle-Starter PLN-530058742
...
32
Kit - Rope PLN-530071798
...
33
SCREW PLN-530016386
...
34
Nut 12-24 PLN-530016382
...
35
Screw 12-24 PLN-530016381
...
36
KIT STARTER SPRING PLN-545008011
...
37
Kit - Starter Pulley PLN-545081852
...
38
Baffle PLN-530057548
...
39
Screw PLN-530015880
...
40
Washer-Flat PLN-530015828
...
41
FLYWHEEL ASSY PLN-545221701
...
42
Assy-C'case & C'shaft (Incl. 11,12,43) PLN-530071751
...
43
Retain. Ring-C'shaft PLN-530015941
...
44
Outer Bearing PLN-530055728
...
45
Seal-C'shaft PLN-530019264
...
46
Inner Bearing PLN-530032125
...
47
CONNECTING ROD ASSY PLN-530049817
...
48
Kit-Piston / Rod (Incl. 10,47) PLN-530071785
...
49
O-Ring-C'case (kit) PLN-530071750
...
50
ASSY REAR PLUG (incl.49) PLN-530057954
...
51
Screw PLN-530016386
...
52
Shroud-Rear PLN-530058737
...
53
Retainer-Tank PLN-530016445
...
54
Assy-Fuel Tank (incl. filter, lines & fuel cap) PLN-545103702
...
55
Assy-Fuel Cap PLN-530058743
...
56
Kit-Fuel Line (Small) PLN-530069247
...
57
Kit-Fuel Line (Large) PLN-530069216
...
58
Assy-Fuel Pickup PLN-530095646
...
59
Kit-Engine Gasket (Incl. 7,13,16,49) PLN-530071750
...
xx
Bulb-Purge Not Shown PLN-530058709
...
xx
Choke Lever - Zama Not Shown PLN-530057827
...
xx
Choke Lever - Walbro Not Shown PLN-530058662

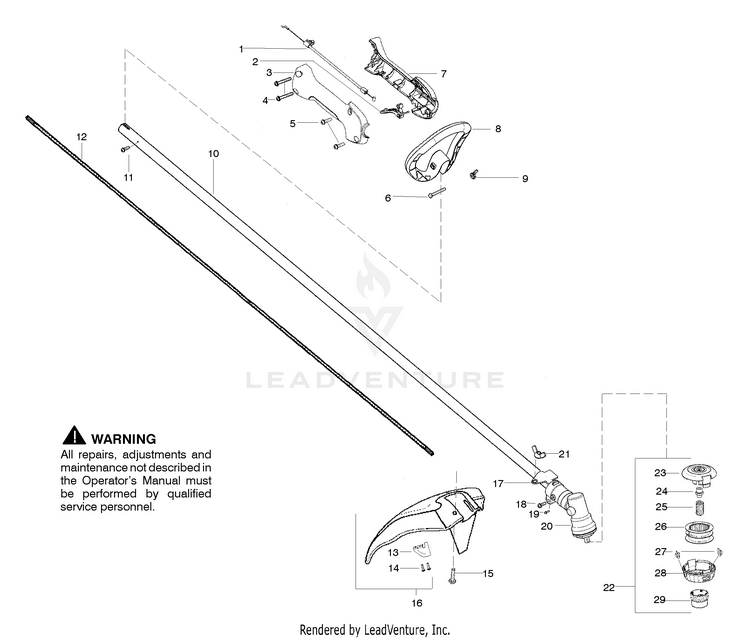

Handle & Shaft Assembly

...
...
1
Assy-Throttle Cable PLN-530057566
...
2
Trigger PLN-530058000
...
3
Throttle Hsg. (Right) PLN-530058751
...
4
Screw PLN-530016406
...
5
Screw PLN-530015814
...
6
Bolt-Handle PLN-530015786
...
7
Throttle Hsg. (Left) PLN-530058750
...
8
Assy-Handle (Incl. 6,9) PLN-530058753
...
9
Nut PLN-530091373
...
10
Assy-Drive Shaft Hsg. PLN-530071780
...
11
Screw PLN-530015805
...
12
Shaft-Flex PLN-530096169
...
13
Line Limiter PLN-530052285
...
14
Screw PLN-530015814
...
15
Bolt-Shield PLN-530015820
...
16
Kit-Shield Assy (Incl.13,14) PLN-530071823
...
17
Bracket-Shield PLN-530057554
...
18
Screw PLN-530016014
...
19
Screw PLN-530015775
...
20
Assy-Gearbox PLN-530096099
...
21
Nut PLN-530091373
...
22
TRIMMER HEAD (Incl. 23,24,25,26,27,28,29) PLN-537419211
...
23
Housing PLN-537419302
...
24
Adapter PLN-537419801
...
25
Spring PLN-537338801
...
26
Accy-Wound Spool PLN-952711631
...
27
Kit-Cover and Eyelet PLN-545003365
...
28
Kit-Cover and Eyelet PLN-545003365
...
29
Knob PLN-537419601
...
xx
Operator Manual Not Shown PLN-545137271
...
xx
Decal-Shaft Warning Not Shown PLN-530055350
...
...
...
