Weed Eater HP30 Gas Trimmer

Model: HP30 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

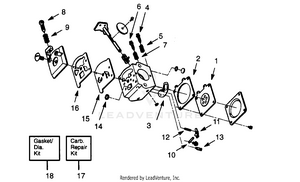

CARBURETOR WA-199

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring Included in Gasket/Diaphragm Kit. PLN-530035188
...
13
Needle Included in Gasket/Diaphragm Kit. PLN-503117001
...
14
Inlet Screen Included in Gasket/Diaphragm Kit. PLN-530035178
...
15
PUMP DIAPHRAGM Included in Gasket/Diaphragm Kit. PLN-504130807
...
16
GASKET Included in Gasket/Diaphragm Kit. PLN-504130906
...
17
Carb. Kwik Repair Kit PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit Included in Carburetor Kwik Repair Kit. PLN-530035185

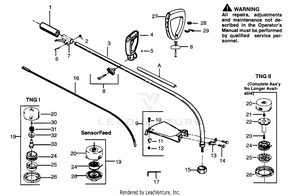

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES

...
...
1
Grip PLN-530029445
...
2
Nut PLN-530015768
...
3
ASM-DR.SHAFT W/SHIELD PLN-530071371
...
4
Handle Ass'y. PLN-530010957
...
5
Nut PLN-530015197
...
6
Screw PLN-530015774
...
7
Throttle Housing Ass'y. PLN-530010959
...
8
HANDLE KIT PLN-530069347
...
9
Shield Kit Ass'y. (Inc. 10,11,12,14) PLN-530069249
...
10
Screw PLN-530015337
...
11
Line Limiter PLN-530094883
...
12
Nut PLN-530403094
...
13
Shield Bracket PLN-530093653
...
14
Screw PLN-530016107
...
15
Dust Cup PLN-530094543
...
16
Drive Shaft PLN-530094551
...
17
Hex Wrench (5/32) PLN-530031159
...
19
SensorFeed PLN-952701605
...
19
Cutting Head Ass'y. PLN-952711547
...
20
SensorFeed PLN-530094592
...
20
TNG II PLN-530094841
...
20
Hub PLN-530071295
...
21
Spring PLN-530094956
...
22
Plate PLN-530069312
...
23
Screw PLN-530015542
...
24
SensorFeed PLN-952701607
...
24
TNG II PLN-952701606
...
24
TNG I PLN-952701523
...
25
TNG II PLN-530094522
...
25
TNG I PLN-530401183
...
26
SensorFeed PLN-530094494
...
26
TNG II PLN-530094521
...
26
TNG I PLN-530092133
...
27
Handle PLN-530014222
...
28
Nut PLN-530015610
...
29
Clamp PLN-530094742
...
30
Line Saver PLN-530093898
...
31
Spring PLN-530340007
...
32
Cap Spring PLN-530328929
...
33
Drive Gear PLN-530093897
...
A
Shaft Warning Decal PLN-530029159
...
xx
Operator's Manual PLN-530067639

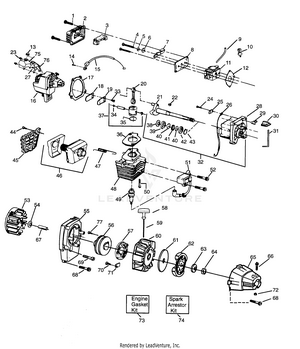

ENGINE BLOCK & SHROUD

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530027526
...
8
Air Filter Plate PLN-530027527
...
9
Fuel Line PLN-530069247
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
12
Carburetor Gasket Included in Engine Gasket Kit. Engine Gasket Contents PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y., Model 114 PLN-530037497
...
16
Shroud. PLN-530027923
...
17
Crankcase/Shroud Gasket Included in Engine Gasket Kit. Engine Gasket Contents PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Inc. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. -See Service Reference 1 PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015843
...
24
Screw PLN-530015780
...
25
Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
SCREW PLN-530016386
...
28
Crankcase Ass'y. (Inc. 39-42) PLN-530014016
...
29
Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Switch Spring PLN-530027959
...
32
Assy-C'case/C'shaft PLN-530071705
...
33
Screw PLN-530015241
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530025875
...
36
GASKET CYL W/ ADHESIVE Included in Engine Gasket Kit. Engine Gasket Contents PLN-530019267
...
37
Piston Kit PLN-530069899
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Attachment Spring PLN-530036409
...
48
Cylinder PLN-530069626
...
49
Spark Plug PLN-530030077
...
50
Screw PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y. PLN-530039189
...
54
Washer PLN-530016030
...
55
Fan Housing PLN-530027948
...
56
Kit-Starter Pulley PLN-530071387
...
57
STARTER SPRING PLN-545008010
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Pulley Housing Ass'y. PLN-530014009
...
61
Clutch Washer PLN-530094189
...
62
Clutch Ass'y. Kit PLN-530069254
...
63
Washer PLN-530015796
...
64
Nut PLN-530001733
...
65
Clutch Housing PLN-530014017
...
66
Screw PLN-530015767
...
67
Spacer PLN-530027511
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
Fuel Tank Ass'y. PLN-530014176
...
76
Fuel Tank Mtg. Bracket PLN-530029370
...
77
Screw (Inc. in Starter Pulley Kit) PLN-530016080
...
xx
Instruction Decal Not Shown. PLN-530027970
...
xx
Ass'y. Parts Bag Not Shown. PLN-530014054
...
...
...
