Weed Eater HANDYSTIK Cordless Trimmer

Model: HANDYSTIK Cordless Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

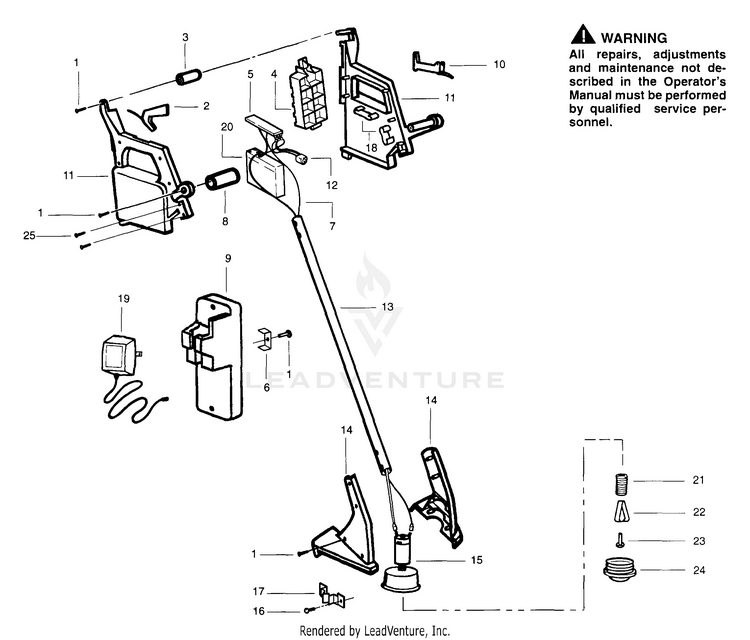

TRIMMER ASSEMBLY

...
...
1
Screw PLN-530340179
...
2
Trigger Lock Type 1 & Type 2 PLN-530402931
...
2
Trigger Lock Type 3 New part number for IPL PLN-530402931
...
3
Wrist Support Cushion PLN-530401457
...
4
Battery Door PLN-530401436
...
5
Circuit Board Ass'y. PLN-530401581
...
6
Probe-Clamp PLN-530401485
...
7
Wire Ass'y. (Red) PLN-530401807
...
8
Assist Handle Cushion PLN-534101430
...
9
Hanging Bracket PLN-530401481
...
10
Trigger Switch Type 1 & Type 2 PLN-530402856
...
10
Trigger Switch Type 3 PLN-530402856
...
11
Battery Hsg. Set Type 1 & Type 2 PLN-530402267
...
11
Battery Hsg. Set Type 3 PLN-530402837
...
12
Receptacle Ass'y. PLN-530401479
...
13
Tube w/ Warning Decal PLN-530401456
...
14
Motor Hsg Set w/ Line Limiter PLN-530401443
...
15
Motor/Hub Ass'y. PLN-530403337
...
16
Screw PLN-530015775
...
17
Clamp-Motor PLN-530401460
...
18
Battery Spring PLN-530401452
...
19
Charger PLN-530053405
...
20
Battery Kit PLN-530402815
...
21
Spring PLN-530401464
...
22
Clip Retainer PLN-530401466
...
23
Screw w/Washer PLN-530401467
...
24
Spool w/Line PLN-952711527
...
25
Screw PLN-530015994
...
xx
Operator Manual Not shown PLN-530084351
...
xx
Wall Anchor Not shown PLN-530401716
...
xx
Screw Not shown PLN-530401487
...
xx
Warning Decal Type 1 & Type 2. Not shown PLN-530402292
...
xx
Warning Decal Type 3. Not shown PLN-530402932
...
...
...
