product name

Weed Eater GTI17XP Gas Trimmer

Model: GTI17XP Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

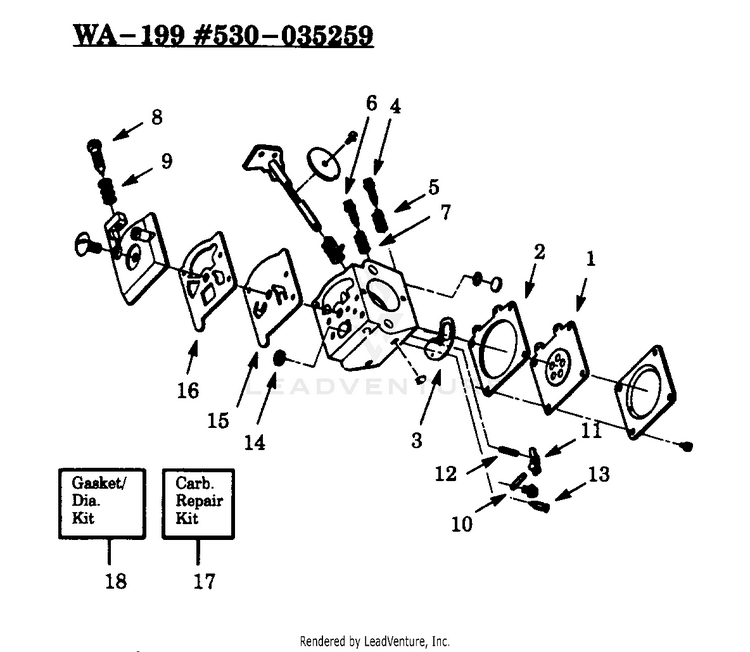

CARBURETOR WA-199

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring PLN-530035188
...
13
Needle PLN-503117001
...
14
Inlet Screen PLN-530035178
...
15
PUMP DIAPHRAGM PLN-504130807
...
16
GASKET PLN-504130906
...
17
Carb. Kwik Repair Kit (Inc. 1,2,3,12,13,14, 15,16,18) PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit (Inc. 1,2,3) PLN-530035185

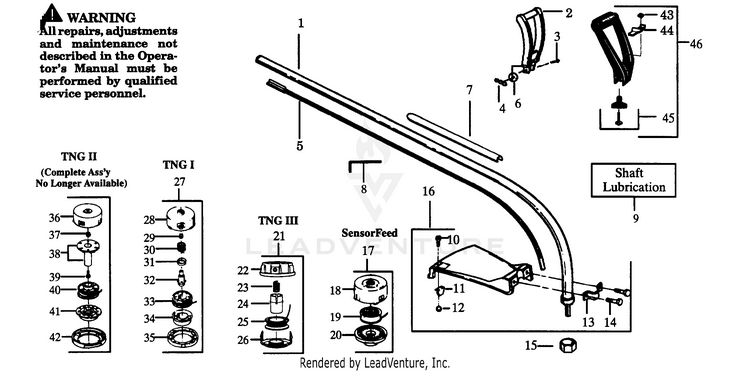

DRIVE SHAFT & CUTTING HEAD

...
...
1
MODEL GTI 17 PLN-530094680
...
1
MODELS GTI 17XP &GTI 17T Type 2 PLN-530094912
...
1
MODEL GTI 17C PLN-530094876
...
1
MODEL GTI 17T Type 3 PLN-530095341
...
2
Handle- MODELS GTI 17, GTI 17XP & GTI 17C PLN-530010957
...
3
Screw PLN-530340228
...
4
Wing Nut PLN-530091373
...
5
MODELS GTI 17 & GTI 17C PLN-530094683
...
5
MODELS GTI 17XP, GTI 17T PLN-530094679
...
6
Washer PLN-530092062
...
7
MODELS GTI 17,GTI 17T(Type 2),GTI 17C,GTI 17XP PLN-530029159
...
7
MODEL GTI 17T Type 3 PLN-530038907
...
8
Hex Wrench (5/32) PLN-530031159
...
9
Shaft Lubrication PLN-952030139
...
10
Screw PLN-530015337
...
11
MODELS GTI 17 & GTI 17C PLN-530094570
...
11
MODELS GTI 17XP,GTI 17T PLN-530094883
...
12
Nut PLN-530403094
...
13
MODELS GTI 17, GTI 17T & GTI 17XP PLN-530093653
...
13
MODEL GTI 17C PLN-530029373
...
14
Screw PLN-530016107
...
15
Dust Cup PLN-530094543
...
16
MODELS GTI 17,GTI 17T & GTI 17XP PLN-530069249
...
16
MODEL GTI 17C PLN-530069299
...
17
Cutting Head Ass'y - (Incl. 18-20) MODEL GTI 17XP PLN-952701605
...
18
Hub Ass'y MODEL GTI PLN-530094592
...
19
Spool w/Line MODEL GTI PLN-952701607
...
20
Cover MODEL GTI PLN-530094494
...
21
Cutting Head Ass'y - (Incl. 22-26) MODEL GTI 17C PLN-952701628
...
22
Hub Ass'y MODEL GTI 17C PLN-530094878
...
23
Spring MODEL GTI 17C PLN-530094830
...
24
Release Button MODEL GTI 17C PLN-530094827
...
25
Spool w/Line MODEL GTI 17C PLN-952701619
...
26
Cover MODEL GTI 17C PLN-530094828
...
27
Cutting Head Ass'y. (Incl. 28-35) MODELS GTI 17 & GTI 17T PLN-952711547
...
28
Hub PLN-530071295
...
29
Line Saver MODELS GTI 17 & GTI 17T PLN-530093898
...
30
Spring MODELS GTI 17 & GTI 17T PLN-530340007
...
31
Cap Spring PLN-530328929
...
32
Drive Gear MODELS GTI 17 & GTI 17T PLN-530093897
...
33
Spool w/Line MODELS GTI 17 & GTI 17T PLN-952701523
...
34
Release Button MODELS GTI 17 & GTI 17T PLN-530401183
...
35
Cover MODELS GTI 17 & GTI 17T PLN-530092133
...
36
Hub Ass'y PLN-530094562
...
37
Spring PLN-530094956
...
38
Locking Plate Kit PLN-530069312
...
39
Screw PLN-530015542
...
40
Spool w/Line PLN-952701607
...
41
Release Button PLN-530094522
...
42
Cover PLN-530094521
...
43
Nut, Square-Handle MODEL GTI 17T PLN-530015610
...
44
Clamp- Handle MODEL GTI 17T PLN-530094742
...
45
HANDLE KIT PLN-530069347
...
46
Cushioned Handle Kit - (Inc.43,44,45) MODEL GTI 17T PLN-530069496
...
0
Operator Manual, MODEL GTI 17 PLN-530067317
...
0
Operator Manual, MODEL GTI 17XP PLN-530067714
...
0
Operator Manual, MODEL GTI 17C PLN-530081795
...
0
Operator Manual, MODEL GTI 17T Type 2 PLN-530081792
...
0
Operator Manual, MODEL GTI 17T Type 3 PLN-530083670

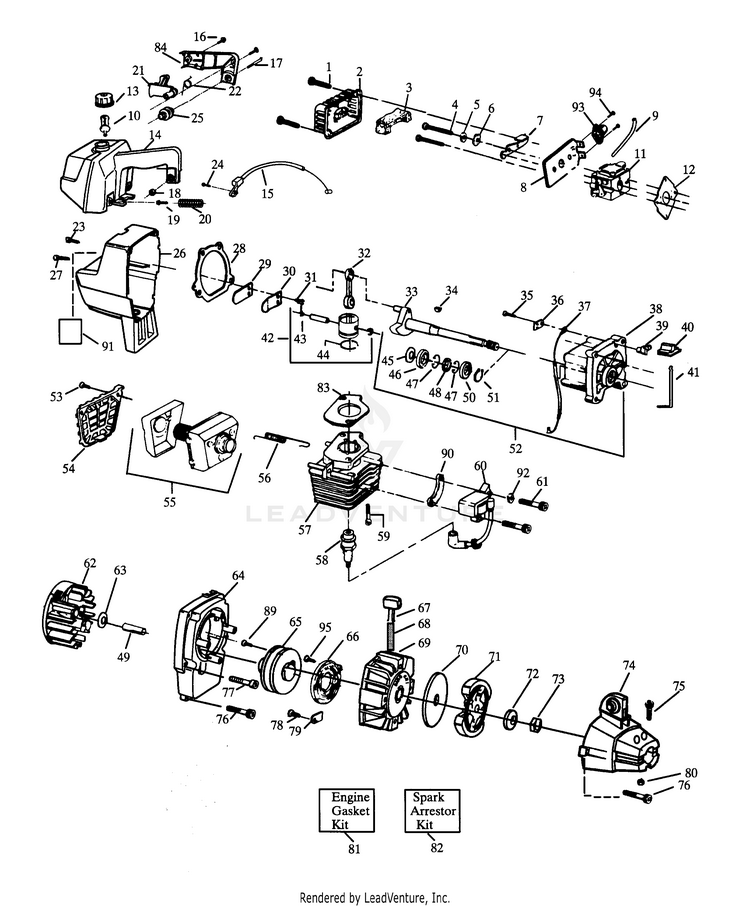

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
MODELS GTI 17, GTI 17XP, GTI 17C Type 1 PLN-530027527
...
8
MODEL GTI 17T Type 2 & 3 PLN-530037930
...
9
Fuel Line Return Line PLN-530069247
...
9
MODEL GTI 17T Type 2 & 3 PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
WT-298B MODEL GTI 17T Type 2 & 3 PLN-530069651
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
MODELS GTI 17, GTI 17XP, & GTI 17C Type 1 PLN-530029552
...
14
MODEL GTI 17T Type 2 & 3 PLN-530047102
...
15
Throttle Cable Ass'y. PLN-530037499
...
16
Screw PLN-530015805
...
17
Shoulder Bolt PLN-530015809
...
18
Nut PLN-530015807
...
19
Screw PLN-530015713
...
20
Rear Isolator Spring PLN-530027926
...
21
Throttle Trigger PLN-530027924
...
22
Throttle Spring PLN-530027925
...
23
SCREW PLN-530016386
...
24
Screw PLN-530015775
...
25
Isolator PLN-530024256
...
26
Shroud PLN-530027923
...
27
Screw PLN-530015771
...
28
Gasket PLN-530019154
...
29
Reed PLN-530027593
...
30
Reed Stop PLN-530027594
...
31
SCREW 6-19X.437 PLN-545227101
...
32
MODEL GTI 17C PLN-530014005
...
32
MODELS GTI 17, GTI 17T & GTI 17XP PLN-530010960
...
33
Crankshaft Ass'y. See Service Reference 2 PLN-530010934
...
34
Flywheel Key PLN-530015126
...
35
Screw PLN-530015780
...
36
Switch Insulator PLN-530027546
...
37
Lead Wire PLN-530027547
...
38
Crankcase Ass'y. (Incl. 46,47,48 & 50) PLN-530014016
...
39
Switch Ramp PLN-530027545
...
40
Switch Button PLN-530038309
...
41
Switch Spring PLN-530027959
...
42
MODEL GTI 17 PLN-530069240
...
42
MODEL GTI 17C PLN-530069274
...
42
Piston Kit PLN-530069899
...
43
Piston Pin Retainer PLN-530015162
...
44
MODEL GTI 17 PLN-530027369
...
44
MODEL GTI 17C PLN-530026413
...
44
MODELS GTI 17T & GTI 17XP PLN-530025875
...
46
Inner Bearing PLN-530032103
...
47
Retaining Ring PLN-530015787
...
48
Crankshaft Seal PLN-530019158
...
49
Spacer PLN-530027511
...
50
Outer Bearing PLN-530032102
...
51
Retaining Ring PLN-530015789
...
52
Assy-C'case/C'shaft (Incl. 33, 38, 46-48, 50 & 51) PLN-530071705
...
53
Screw PLN-530015717
...
54
Muffler Guard PLN-530027781
...
55
Muffler Kit PLN-530069310
...
56
Muffler Spring PLN-530036409
...
57
MODEL GTI 17 PLN-530012247
...
57
CYLINDER PLN-530012349
...
57
MODELS GTI 17T & GTI 17XP PLN-530069626
...
58
MODELS GTI 17, GTI 17XP, GTI 17C (CJ-14) PLN-530030077
...
58
MODEL GTI 17T Type 3 (RCJ-8Y) PLN-530030075
...
59
Screw PLN-530015239
...
60
Ignition Module Kit PLN-530039134
...
61
MODELS GTI 17 & GTI 17C PLN-530015776
...
61
Screw PLN-530015816
...
62
Flywheel Ass'y. PLN-530039189
...
63
Washer PLN-530016030
...
64
Fan Housing PLN-530027948
...
65
Kit-Starter Pulley (Incl. 89) PLN-530071387
...
66
STARTER SPRING PLN-545008010
...
67
Starter Handle PLN-530027569
...
68
Rope Kit PLN-530069232
...
69
Pulley Housing Ass'y. PLN-530014009
...
70
Clutch Washer PLN-530094189
...
71
Clutch Ass'y. PLN-530069254
...
72
Washer PLN-530015796
...
73
Nut PLN-530001733
...
74
Clutch Housing PLN-530014010
...
75
Screw PLN-530015767
...
76
Screw PLN-530015770
...
77
Screw PLN-530015769
...
78
Screw PLN-530015496
...
79
Pulley Retainer PLN-530027523
...
80
Locknut PLN-530015768
...
81
Engine Gasket Kit (Inc. 12,28,83) PLN-530069276
...
82
Spark Arrestor Kit PLN-952701612
...
83
GASKET CYL W/ ADHESIVE PLN-530019267
...
84
Handle Cover PLN-530027917
...
89
Screw-Pulley PLN-530016080
...
90
Spacer MODELS GTI 17 & GTI 17C PLN-530027525
...
91
MODELS GTI 17, GTI 17XP, GTI 17C PLN-530027970
...
91
MODELS GTI 17T Type 2 Decal (Not a serviceable part) PLN-530038843
...
91
MODELS GTI 17T Type 3 PLN-530047446
...
93
MODEL GTI 17T Type 2 & 3 PLN-530038874
...
94
MODEL GTI 17T Type 2 & 3 PLN-530016091
...
95
Screw-Starter Spring MODEL GTI 17T Type 3 PLN-530015882
...
xx
Carton Contents Bag, MODELS GTI 17, GTI 17T (Type 2) & GTI 17XP PLN-530014053
...
xx
Carton Contents Bag, MODEL GTI 17C PLN-530014216
...
xx
Carton Contents Bag, MODEL GTI 17T Type 3 PLN-530014846
...
...
...
