Weed Eater GTI16 Gas Trimmer

Model: GTI16 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

CARBURETORS WA-207, WA-207A

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
Circuit Plate Gasket PLN-530035211
...
4
Mixture Needle PLN-530035268
...
5
Mixture Needle Spring PLN-530035293
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
GASKET PLN-504130906
...
8
Idle Speed Screw PLN-530035203
...
9
Idle Speed Spring PLN-530035121
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring PLN-530035188
...
13
Needle PLN-503117001
...
14
Fuel Inlet Screen PLN-530035178
...
15
Metering Lever Pin Screw PLN-530035016
...
16
Carb. Kwik Repair Kit (Inc. 1,2,3,6,7,10,11, 12,13,14,15) PLN-530035264
...
17
Gasket Diaphragm Kit PLN-530069844

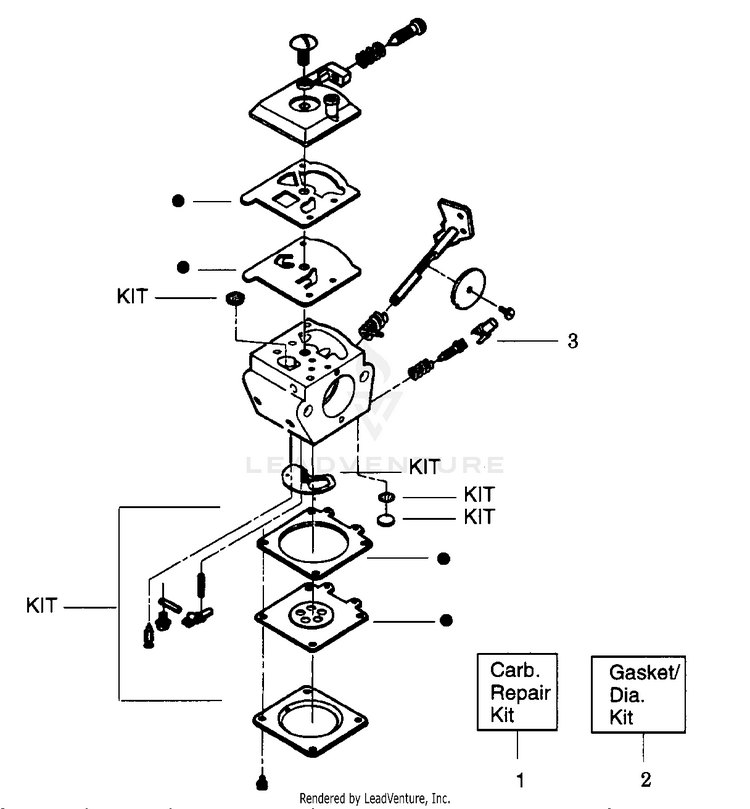

CARBURETORS WA-219B, WA-217

...
...
1
Carburetor Repair Kit PLN-530069842
...
1
Carburetor Repair Kit, WA-219B (KIT=Indicates Contens) PLN-530069837
...
2
GASKET SET PLN-531004519
...
2
Gasket/Diaphragm Kit, WA-219B ("."=Indicates Contens) PLN-530069844
...
3
Limiter Cap PLN-530038404

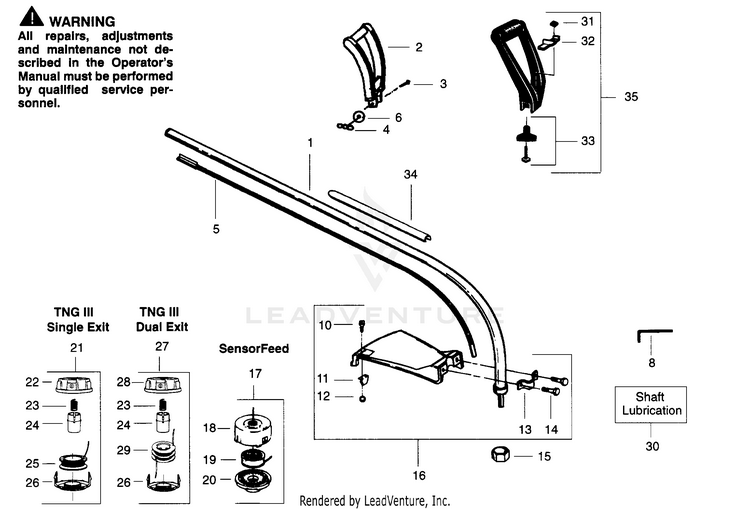

DRIVE SHAFT & CUTTING HEAD

...
...
1
Drive Shaft Housing, Models GTI 16 & GTI 16 SUPER PLN-530094680
...
1
Drive Shaft Housing, Model GTI 17LE PLN-530095133
...
1
Drive Shaft Housing Model GTI 16D PLN-530095342
...
2
Handle Ass'y.Model GTI 16 Type 1 & 2 PLN-530010957
...
3
Bolt PLN-530340228
...
4
Wing Nut PLN-530091373
...
5
Drive Shaft, Models GTI 16, GTI 16 SUPER & GTI 16D PLN-530094676
...
5
Drive Shaft, Model GTI 17LE PLN-530094679
...
6
Washer PLN-530092062
...
8
Hex Wrench (5/32) PLN-530031159
...
10
Screw PLN-530015337
...
11
Line Limiter PLN-530094570
...
12
Nut PLN-530403094
...
13
Bracket PLN-530093653
...
14
Screw PLN-530016107
...
15
Dust Cup PLN-530094543
...
16
Shield Kit Ass'y. (Incl. 10-12 & 14) Models GTI 16, GTI 16 SUPER & GTI 16D PLN-530069249
...
16
Shield Kit Ass'y. (Incl. 10-12 & 14) Model GTI 17LE PLN-530069299
...
17
Cutting Head Ass'y, (incl. 18-20) Model GTI 16 SUPER PLN-952701605
...
18
Hub Ass'y, Model GTI 16 SUPER PLN-530094592
...
19
Spool w/Line, Model GTI 16 SUPER PLN-952701607
...
20
Cover, Model GTI 16 SUPER PLN-530094494
...
21
Cutting Head Ass'y, (Incl. 22-26) Models GTI 16 & GTI 17LE PLN-952701628
...
22
Hub Ass'y, Models GTI 16 & GTI 17LE PLN-530094878
...
23
Spring, Models GTI 16,GTI 16D & GTI 17LE PLN-530094830
...
24
Release Button, Models GTI 16,GTI 16D, GTI 17LE PLN-530094827
...
25
Spool w/Line, Models GTI 16 & GTI 17LE PLN-952701619
...
26
Cover, Models GTI 16,GTI 16D & GTI 17LE PLN-530094828
...
27
Accy-TNG VI Cutting Head PLN-952711621
...
28
Hub Ass'y, Model GTI 16D PLN-530069694
...
29
Dual Spool w/Line, Model GTI 16D PLN-952701665
...
30
Shaft Lubrication PLN-952030139
...
31
Nut PLN-530015610
...
32
Clamp PLN-530094742
...
33
HANDLE KIT PLN-530069347
...
34
Decal- Drive Shaft, Models GTI 16, GTI 17LE & GTI 16 SUPER PLN-530029159
...
34
Decal- Drive Shaft, Model GTI 16D PLN-530047899
...
35
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496

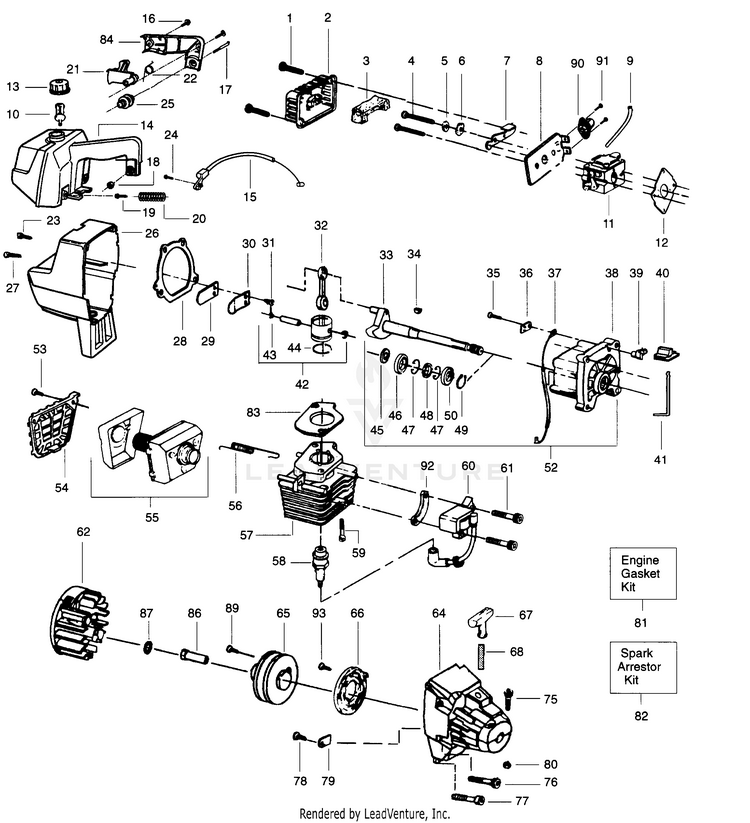

ENGINE

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Air Filter Plate - Type 1 PLN-530027527
...
8
Air Filter Plate - Type 2-3 & Model GTI16D PLN-530037930
...
9
Fuel Line PLN-530069247
...
9
Return Line - Type 2-3 & Model GTI16D PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
Carburetor - WA-219B - Type 2-3 & Model GTI16D PLN-530069648
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Handle & Tank Ass'y - Type 1 PLN-530029552
...
14
Handle & Tank Ass'y - Type 2-3 & Model GTI16D PLN-530047102
...
15
Type 3 & 4 PLN-530037499
...
15
Throttle Cable Ass'y. - Type 2-3 & Model GTI16D PLN-530037499
...
16
Screw PLN-530015805
...
17
Shoulder Bolt PLN-530015809
...
18
Nut PLN-530015807
...
19
Screw PLN-530015713
...
20
Rear Isolator Spring PLN-530027926
...
21
Throttle Trigger PLN-530027924
...
22
Throttle Spring PLN-530027925
...
23
SCREW PLN-530016386
...
24
Screw PLN-530015775
...
25
Isolator PLN-530024256
...
26
Shroud PLN-530027923
...
27
Screw PLN-530015771
...
28
Gasket-C'case/Shroud PLN-530019154
...
29
Reed PLN-530027593
...
30
Reed Stop PLN-530027594
...
31
SCREW 6-19X.437 PLN-545227101
...
32
Connecting Rod Ass'y. PLN-530010960
...
33
Crankshaft Ass'y. See Service Ref. 1 PLN-530010945
...
34
Flywheel Key PLN-530015126
...
35
Screw PLN-530015780
...
36
Switch Insulator PLN-530027546
...
37
Lead Wire PLN-530027547
...
38
Crankcase Ass'y. (Incl. 46-48 & 50) PLN-530014016
...
39
Switch Ramp PLN-530027545
...
40
Switch Button PLN-530038309
...
41
Switch Spring PLN-530027959
...
42
Piston Kit PLN-530069899
...
42
Piston Kit (Incl. 43,44 & pin) Model GTI 17LE PLN-530069240
...
43
Piston Pin Retainer PLN-530015162
...
44
Piston Ring, Models GTI 16, GTI 16 SUPER & GTI 16D PLN-530025875
...
44
Piston Ring, Model GTI 17LE PLN-530027369
...
46
Inner Bearing PLN-530032103
...
47
Retaining Ring PLN-530015787
...
48
Crankshaft Seal PLN-530019158
...
49
Retaining Ring PLN-530015789
...
50
Outer Bearing PLN-530032102
...
52
Crankcase & Crankshaft Ass'y. (Incl. 33, 38 & 46-50) PLN-530014004
...
53
Screw PLN-530015717
...
54
Muffler Guard PLN-530027781
...
55
Muffler Kit PLN-530069310
...
56
Muffler Spring PLN-530036409
...
57
Cylinder, Models GTI 16, GTI 16 SUPER, GTI 16D PLN-530069626
...
57
Cylinder, Model GTI 17LE PLN-530012247
...
58
Spark Plug, - Type 1 PLN-530030077
...
58
Spark Plug PLN-503235112
...
59
Screw PLN-530015239
...
60
Ignition Module Kit PLN-530039134
...
61
Screw PLN-530015816
...
62
Flywheel Ass'y. PLN-530047198
...
64
Fan Housing PLN-530014044
...
65
Kit-Starter Pulley PLN-530071387
...
66
STARTER SPRING PLN-545008010
...
67
Starter Handle PLN-530027569
...
68
Rope Kit PLN-530069232
...
75
Screw PLN-530015767
...
76
Screw PLN-530015770
...
77
Screw PLN-530015769
...
78
Screw PLN-530015496
...
79
Pulley Retainer PLN-530027523
...
80
Locknut PLN-530015768
...
81
Engine Gasket Kit (Inc. 12,28,83) PLN-530069276
...
82
Spark Arrestor Kit PLN-952701612
...
83
GASKET CYL W/ ADHESIVE PLN-530019267
...
84
Handle Cover PLN-530027917
...
86
Drive Coupling PLN-530027953
...
87
Washer PLN-530015828
...
89
Screw-Pulley PLN-530016080
...
90
Primer Ass'y. - Type 2-3 & Model GTI16D PLN-530038874
...
91
Screw-Prim. - Type 2-3 & Model GTI16D PLN-530016091
...
92
Spacer, Model GTI 17LE PLN-530027525
...
93
Screw-Starter Spring - Type 3 & Model GTI16D PLN-530015882
...
0
Instruction Decal, - Type 1 & 2 Not Shown. PLN-530027970
...
0
Instruction Decal, Model GTI16-Type 3, & GTI16D (Not a serviceable part) Not Shown., (Not a serviceable part) PLN-530038843
...
0
Operator's Manual Model GTI 16-Type 1 Not Shown. PLN-530067701
...
0
Operator's Manual Model GTI 16-Type 2 & 3 Not Shown. PLN-530081866
...
0
Operator's Manual Model GTI 17LE Not Shown. PLN-530082119
...
0
Operator's Manual Model GTI 16 SUPER Not Shown. PLN-530067712
...
0
Operator's Manual Model GTI 16D Not Shown. PLN-530083543
...
...
...
