Weed Eater GTI15 Gas Trimmer

Model: GTI15 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

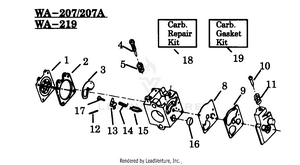

CARBURETORS WA-207, 207A & WA-219

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
Circuit Plate Gasket PLN-530035211
...
4
WA-207/207A PLN-530035212
...
xx
WA-219 PLN-530035341
...
5
Needle Spring-Low Speed PLN-530035293
...
5
WA-219 PLN-530035342
...
8
PUMP DIAPHRAGM PLN-504130807
...
9
GASKET PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin PLN-505520125
...
13
Metering Lever PLN-505520127
...
14
Metering Lever Spring PLN-530035188
...
15
Needle PLN-503117001
...
16
Fuel Inlet Screen PLN-530035178
...
17
Metering Lever Pin Screw PLN-530035016
...
18
Carb. Kwik Repair Kit (Inc. 1,2,3,8,9,12, 13,14,15,16,17) PLN-530035264
...
19
Gasket Diaphragm Kit PLN-530069844

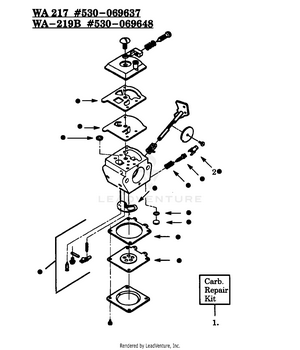

CARBURETORS WA-217, & WA-219B

...
...
1
WA-219B PLN-530069667
...
2
Limiter Cap PLN-530038404

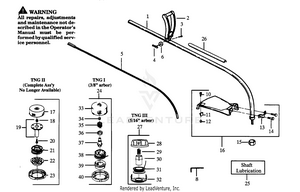

DRIVE SHAFT & CUTTING HEAD

...
...
1
Drive Shaft Housing Model GTI 15 PLN-530094680
...
1
Drive Shaft Housing Model GTI 15T PLN-530094876
...
2
Handle PLN-530010957
...
3
Screw PLN-530340228
...
4
Wing Nut PLN-530091373
...
5
Drive Shaft Model GTI 15 PLN-530094676
...
5
Drive Shaft Model GTI 15T PLN-530094834
...
6
Washer PLN-530092062
...
8
Hex Wrench (5/32) PLN-530031159
...
10
Screw PLN-530015337
...
11
Line Limiter PLN-530094570
...
12
Nut PLN-530403094
...
13
Bracket PLN-530093653
...
13
Bracket PLN-530029373
...
14
Screw PLN-530016107
...
15
Dust Cup PLN-530094543
...
16
Shield Kit Ass'y. (Inc 10,11,12,14) Model GTI 15 PLN-530069249
...
16
Shield Kit Ass'y. (Inc 10,11,12,14) Model GTI 15T PLN-530069299
...
17
Hub Ass'y. PLN-530094562
...
18
Spring PLN-530094956
...
19
Locking Plate Kit PLN-530069312
...
20
Screw PLN-530015542
...
21
Spool w/Line PLN-952701606
...
22
Release Button PLN-530094522
...
23
Cover PLN-530094521
...
24
Cutting Head Ass'y. (Incl. 33-40) Model GTI 15 PLN-952711547
...
25
Shaft Lubrication PLN-952030139
...
26
Shaft Warning Decal PLN-530029159
...
27
TRIMMY HIT JR-5/16 PLN-695000394
...
28
Hub Ass'y. PLN-530094875
...
29
Spring PLN-530094830
...
30
Release Button PLN-530094827
...
31
Spool w/Line PLN-952701619
...
32
Cover PLN-530094828
...
33
Hub PLN-530071295
...
34
Line Saver PLN-530093898
...
35
Spring PLN-530340007
...
36
Cap Spring PLN-530328929
...
37
Diver Gear PLN-530093897
...
38
Spool w/Line PLN-952701523
...
39
Release Button PLN-530401183
...
40
Cover PLN-530092133
...
0
Operator's Manual Model GTI 15 PLN-530067316
...
0
Operator's Manual Model GTI 15T PLN-530081859
...
0
Ass'y. Parts Bag Model GTI 15 PLN-530014051
...
0
Ass'y. Parts Bag Model GTI 15T PLN-530014216

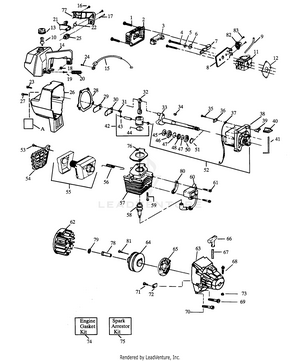

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Type 1 & 2 PLN-530027527
...
8
Type 3 & 4 PLN-530037930
...
9
Fuel Line PLN-530069247
...
9
Return Line Type 3 & 4 PLN-530069238
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
Type 3 & 4 (WA-219B) PLN-530069648
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Type 1 & 2 PLN-530029552
...
14
Type 3 & 4 PLN-530047102
...
15
Type 3 & 4 PLN-530037499
...
15
Type 3 & 4 PLN-530037499
...
16
Screw PLN-530015805
...
17
Screw PLN-530015809
...
18
Nut PLN-530015807
...
19
Screw PLN-530015713
...
20
Rear Isolator Spring PLN-530027926
...
21
Throttle Trigger PLN-530027924
...
22
Throttle Spring PLN-530027925
...
23
SCREW PLN-530016386
...
24
Screw PLN-530015775
...
25
Isolator PLN-530024256
...
26
Shroud PLN-530027923
...
27
Screw PLN-530015771
...
28
Gasket PLN-530019154
...
29
Reed PLN-530027593
...
30
Reed Stop PLN-530027594
...
31
SCREW 6-19X.437 PLN-545227101
...
32
Connecting Rod Ass'y. PLN-530014005
...
33
Crankshaft Ass'y. See Service Ref. 1 PLN-530010945
...
34
Flywheel Key PLN-530015126
...
35
Screw PLN-530015780
...
36
Switch Insulator PLN-530027546
...
37
Lead Wire PLN-530027547
...
38
Crankcase Ass'y. (Incl. 46-48 & 50) PLN-530014016
...
39
Switch Ramp PLN-530027545
...
40
Switch Button PLN-530038309
...
41
Switch Spring PLN-530027959
...
42
Piston Kit (Incl. 43,44 & Pin) PLN-530069274
...
43
Piston Pin Retainer PLN-530015162
...
44
Piston Ring PLN-530026413
...
46
Inner Bearing PLN-530032103
...
47
Retaining Ring PLN-530015787
...
48
Crankshaft Seal PLN-530019158
...
49
Type 1 PLN-530027970
...
49
Type 4 (Not a serviceable part) PLN-530037742
...
50
Outer Bearing PLN-530032102
...
51
Retaining Ring PLN-530015789
...
52
Crankcase & Crankshaft Ass'y. (Incl. 33, 38, 46- 51) PLN-530014004
...
53
Screw PLN-530015717
...
54
Muffler Guard PLN-530027781
...
55
Muffler Kit PLN-530069310
...
56
Muffler Spring PLN-530036409
...
57
CYLINDER PLN-530012349
...
58
Spark Plug (CJ-14) PLN-530030077
...
59
Screw PLN-530015239
...
60
Ignition Module Kit PLN-530039134
...
61
Screw PLN-530015776
...
62
Flywheel Ass'y. Model GTI 15 PLN-530039189
...
62
Flywheel Ass'y. Model GTI 15T PLN-530047198
...
63
Fan Housing PLN-530014044
...
64
Kit-Starter Pulley (Incl. 81) PLN-530071387
...
65
STARTER SPRING PLN-545008010
...
66
Starter Handle PLN-530027569
...
67
Rope Kit PLN-530069232
...
68
Screw PLN-530015767
...
69
Screw PLN-530015770
...
70
Screw PLN-530015769
...
71
Screw PLN-530015496
...
72
Pulley Retainer PLN-530027523
...
73
Locknut PLN-530015768
...
74
Engine Gasket Kit (Inc. 12,28,76) PLN-530069276
...
75
Spark Arrestor Kit PLN-952701612
...
76
GASKET CYL W/ ADHESIVE PLN-530019267
...
77
Handle Cover PLN-530027917
...
78
Drive Coupling PLN-530027953
...
79
Washer PLN-530015828
...
80
Spacer PLN-530027525
...
81
Screw-Starter Pulley PLN-530016080
...
82
Primer Bulb Ass'y. Model GTI 15T Type 3 & 4 PLN-530038874
...
83
Screw-Primer Model GTI5T Type 3 & 4 PLN-530016091
...
...
...
