Weed Eater FX26SC Gas Trimmer Type 2

Model: FX26SC Gas Trimmer Type 2

Save
 Part Not Listed?Part Not Listed?
product name

Cutting Equipment Type 1,2,3,4

...
...
1
Assy-Throttle Cable PLN-530057991
...
2
Trigger PLN-530058000
...
3
Throttle Hsg. (Right) PLN-530057582
...
4
Screw-Throttle Hsg. PLN-530015880
...
5
Bolt-Handle PLN-530015821
...
6
ASSY DSHAFT UPPER BLK FLTCC (Incl. 11,12) PLN-545008061
...
7
Throttle Hsg. (Left) PLN-530057581
...
8
Assy-Handle (Incl . 5,9,10) PLN-545026201
...
9
Nut PLN-530091373
...
10
Assy-Handle PLN-545026201
...
12
Screw PLN-530015886
...
13
DRIVESHAFT KIT KD COUPLER (Incl. 11,12,14,15) PLN-581535001
...
16
Kit-Shaft Lower (Incl. 14,15) PLN-545008066
...
17
Line Limiter PLN-530052286
...
18
Screw PLN-530015957
...
19
Bolt PLN-530015820
...
20
Kit-Shield Assy (Incl. 17,18,19,21) PLN-530071795
...
21
Nut PLN-530091373
...
22
Accy-TNG VI Cutting Head (Incl. 23,24,25,26) PLN-952711621
...
23
Kit-Hub Ass'y PLN-530071306
...
24
Spring-Compression PLN-530053241
...
25
Clip-Retainer-Head PLN-530401957
...
26
TNG 6 RH .080X25' PLN PLN-952701719
...
26
Decal-Shaft Warning Not Shown PLN-545207301
...
26
Decal-Spark Arrestor Warning Not Shown PLN-527291101

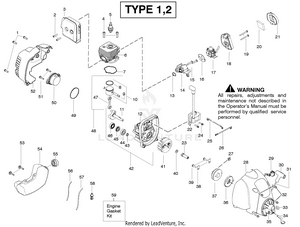

Engine Type 1,2

...
...
1
Screw PLN-530015814
...
2
Bolt-Muffler PLN-530058982
...
3
ASSY MUFFLER SHIELD (Incl. 2) PLN-545227901
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012541
...
7
Seal-Cylinder (kit) PLN-530071750
...
8
RING PISTON PLN-545154001
...
9
Retainer-Piston Pin PLN-530015162
...
10
Kit - Piston (Incl. 8, 9) PLN-530071833
...
11
Assy-Crankshaft PLN-530057829
...
12
Assy-Crankcase (Incl. 44,45,46) PLN-530012582
...
13
Seal-Cyl/Carb.(kit) PLN-530071750
...
14
Adapter-Carb. PLN-530057547
...
15
Screw PLN-530016441
...
16
Gasket-Carb. (kit) PLN-530071750
...
17
KIT CARB ASSY # C1U-W24 PLN-530071822
...
17
KIT CARB ASSY # C1U-W24 (Note: Repair kits are not available for this carburetor) PLN-530071822
...
18
BASE AIRBOX BLACK PLN-580731001
...
19
Screw PLN-530016429
...
20
Foam-Air Filter PLN-530057781
...
21
Cover-Air Box PLN-530057584
...
22
IGNITION MODULE PLN-578287001
...
23
Coupling-Drive PLN-530038604
...
24
Screw PLN-530016357
...
25
Assy-Leadwire PLN-530014663
...
26
SWITCH, GROUND WIRE PLN-581425901
...
27
Screw PLN-530016392
...
28
Assy.-Fan Hsg PLN-530058600
...
29
Kit-Switch PLN-545081869
...
30
Handle-Starter PLN-530027569
...
31
Kit - Rope PLN-530071767
...
32
Screw PLN-530016386
...
33
Nut PLN-530016124
...
34
Clip-Spring PLN-530057588
...
35
Screw PLN-530016430
...
36
STARTER SPRING PLN-545008010
...
37
Kit-Pulley-Starter PLN-530071786
...
38
Retainer-Pulley PLN-530027523
...
39
Screw PLN-530015775
...
40
Washer-Flat PLN-530015828
...
41
FLYWHEEL ASSY PLN-545221701
...
42
Assy-C'case & C'shaft (Incl. 11,12,43) PLN-530071768
...
43
Retain. Ring-C'shaft PLN-530015941
...
44
Outer Bearing PLN-530055728
...
45
Seal-C'case PLN-530019264
...
46
Inner Bearing PLN-530032125
...
47
CONNECTING ROD ASSY PLN-530049817
...
48
Kit-Piston/Rod (Incl. 10,47) PLN-530071785
...
49
O-Ring-C'case (kit) PLN-530071750
...
50
Assy-Plug (incl.49) PLN-530057954
...
51
Screw PLN-530016386
...
52
Shroud-Rear PLN-545011004
...
53
Retainer-Tank PLN-530016445
...
54
FUEL TANK ASSY LOW PERM 188 (incl. filter, lines & fuel cap) PLN-581263701
...
55
Assy-Fuel Cap PLN-530014347
...
56
Kit-Fuel Line (Small) PLN-530069247
...
57
Kit-Fuel Line (Large) PLN-530069216
...
58
Assy-Fuel Pickup PLN-530095646
...
59
Kit-Engine Gasket (Incl. 7,13,16,49) PLN-530071750
...
59
Choke Lever - Zama Not Shown PLN-530057827
...
59
Choke Lever - Walbro Not Shown PLN-530058662
...
59
Bulb-Purge(zama) Not Shown PLN-530058709
...
59
Bulb-Purge(walbro) Not Shown PLN-530035497
...
...
...
