Weed Eater FX26S Gas Trimmer Type 1

Model: FX26S Gas Trimmer Type 1

Save
 Part Not Listed?Part Not Listed?
product name

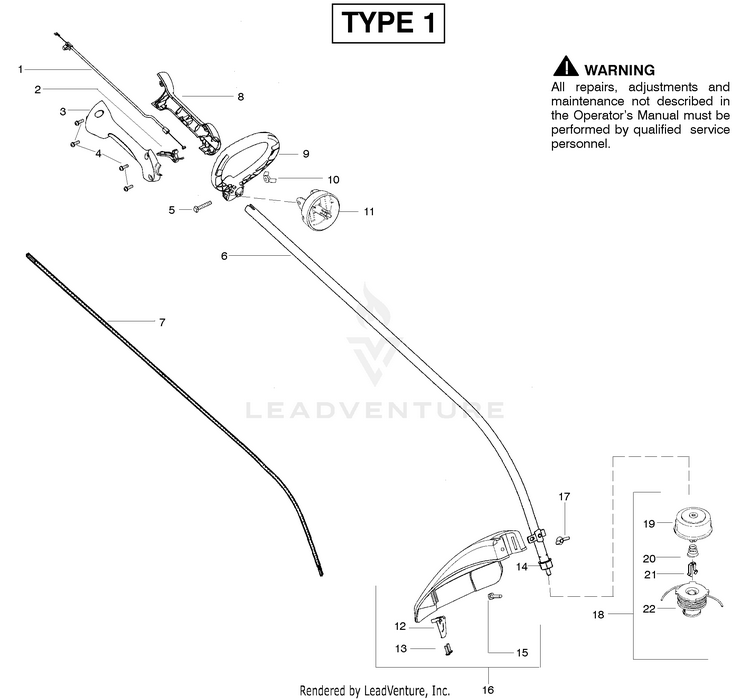

Cutting Equipment Type 1

...
...
1
Assy-Throttle Cable PLN-530057991
...
2
Trigger PLN-530058000
...
3
Throttle Hsg. (Right) PLN-530057582
...
4
Screw-Throttle Hsg. PLN-530015880
...
5
Bolt-Handle PLN-530015786
...
6
Kit-Drive Shaft Assy. PLN-530071971
...
7
Shaft- Flex PLN-530095803
...
8
Throttle Hsg. (Left) PLN-530057581
...
9
Assy-Handle (Incl . 5,10,11) PLN-545026201
...
10
Nut PLN-530091373
...
11
Assy-Handle PLN-545026201
...
12
Line Limiter PLN-530052286
...
13
Screw PLN-530015957
...
14
Dust Cup PLN-530095563
...
15
Bolt PLN-530015820
...
16
Kit-Shield Assy (Incl. 12,13,15,17) PLN-530071795
...
17
Nut PLN-530091373
...
18
Accy-TNG VI Cutting Head (Incl. 19,20,21,22) PLN-952711621
...
19
Kit-Hub Ass'y PLN-530071306
...
20
Spring-Compression PLN-530053241
...
21
Clip-Retainer-Head PLN-530401957
...
22
TNG 6 RH .080X25' PLN PLN-952701719
...
22
Decal-Shaft Warning Not Shown PLN-530055350

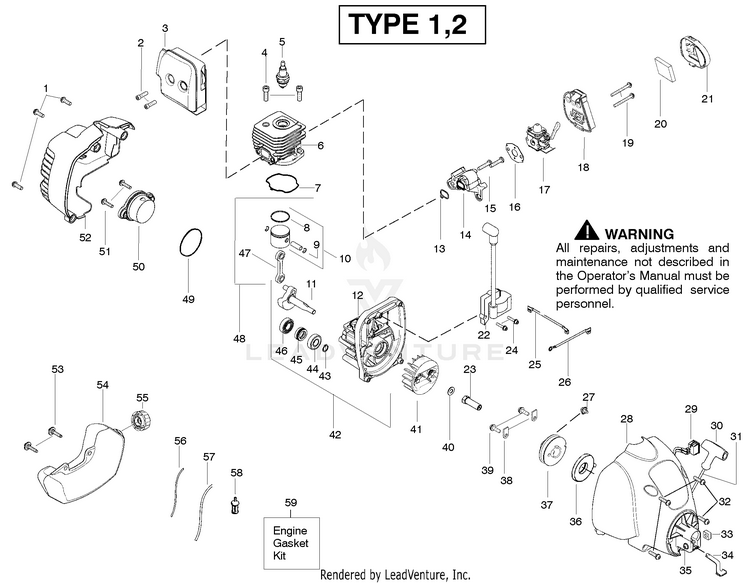

Engine 1,2

...
...
1
Screw PLN-530015814
...
2
Bolt-Muffler PLN-530058982
...
3
Assy-Muffler/Shield (Incl. 2) PLN-530057538
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012541
...
7
Seal-Cylinder (kit) PLN-530071750
...
8
RING PISTON PLN-545154001
...
9
Retainer-Piston Pin PLN-530015162
...
10
Kit - Piston (Incl. 8, 9) PLN-530071833
...
11
Assy-Crankshaft PLN-530057829
...
12
Assy-Crankcase (Incl. 44-46) PLN-530012582
...
13
Seal-Cyl/Carb.(kit) PLN-530071750
...
14
Adapter-Carb. PLN-530057547
...
15
Screw PLN-530016309
...
16
Gasket-Carb. (kit) PLN-530071750
...
17
KIT CARB ASSY # C1U-W24 PLN-530071822
...
17
KIT CARB ASSY # C1U-W24 Note: Repair kits are not available for this carburetor PLN-530071822
...
18
BASE AIRBOX BLACK PLN-580731001
...
19
Screw PLN-530016429
...
20
Foam-Air Filter PLN-530057781
...
21
Cover-Air Box PLN-530057584
...
22
Ignition Module PLN-53003921201
...
23
Coupling-Drive PLN-530038604
...
24
Screw PLN-530016357
...
25
Assy-Leadwire PLN-530014663
...
26
SWITCH, GROUND WIRE PLN-581425901
...
27
Screw PLN-530016392
...
28
Assy.-Fan Hsg PLN-530058600
...
29
Kit-Switch PLN-530071356
...
30
Handle-Starter PLN-530027569
...
31
Kit - Rope PLN-530071767
...
32
SCREW PLN-530016386
...
33
Nut PLN-530016124
...
34
Clip-Spring PLN-530057588
...
35
Screw PLN-530016430
...
36
STARTER SPRING PLN-545008010
...
37
Kit-Pulley-Starter PLN-530071786
...
38
Retainer-Pulley PLN-530027523
...
39
Screw PLN-530015775
...
40
Washer-Flat PLN-530015828
...
41
FLYWHEEL ASSY PLN-545221701
...
42
Assy-C'case & C'shaft (Incl. 11,12,43) PLN-530071768
...
43
Retain. Ring-C'shaft PLN-530015941
...
44
Outer Bearing PLN-530055728
...
45
Seal-C'case PLN-530019264
...
46
Inner Bearing PLN-530032125
...
47
CONNECTING ROD ASSY PLN-530049817
...
48
Kit-piston/rod (Incl. 10,47) PLN-530071785
...
49
O-Ring-C'case (kit) PLN-530071750
...
50
Assy-Plug (incl.49) PLN-530057954
...
51
Screw PLN-530016386
...
52
Shroud-Rear Green PLN-530057580
...
xx
Shroud-Rear Black PLN-545011004
...
53
Retainer-Tank PLN-530016431
...
54
FUEL TANK ASSY LOW PERM 188 (incl. filter, lines & fuel cap) PLN-581263701
...
55
Assy-Fuel Cap PLN-530014347
...
56
Kit-Fuel Line (Small) PLN-530069247
...
57
Kit-Fuel Line (Large) PLN-530069216
...
58
Assy-Fuel Pickup PLN-530095646
...
59
Kit-Engine Gasket (Incl. 7,13,16,49) PLN-530071750
...
xx
Choke Lever - Zama Not Shown PLN-530057827
...
xx
Choke Lever - Walbro Not Shown PLN-530058662
...
xx
Bulb-Purge Not Shown PLN-530058709
...
...
...
