Weed Eater FL21LE Gas Trimmer

Model: FL21LE Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

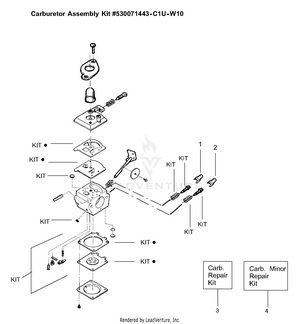

Carburetor Assembly (C1U-W10) P/N 530071443

...
...
1
Limiter Cap (low) PLN-530038478
...
2
Limiter Cap (high) PLN-530038479
...
3
Kit-Carburetor Repair (KIT = Indicates Contents) PLN-530071517
...
4
Kit-Carburetor Minor Repair (DOT = Indicates Contents) PLN-530071442
...
530071443
Carburetor Assembly (C1U-W10) PLN-530071443

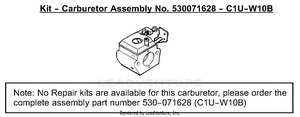

Carburetor Assembly (C1U-W10B) P/N 530071628

...
...
530071628
Kit-Carburetor C1U-W10B PLN-530071628

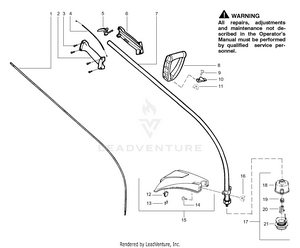

Drive Shaft & Cutting Head

...
...
1
Shaft Flex PLN-530095613
...
2
Throttle Hsg. (Right) PLN-530038581
...
3
Screw Throttle Hsg. PLN-530016349
...
4
Assy Throttle Cable PLN-530071548
...
5
Trigger PLN-530038682
...
6
Throttle Hsg. (Left) PLN-530038580
...
7
Drive Shaft Hsg. Ass'y PLN-530071311
...
8
Handle Assist PLN-530038708
...
9
Bolt Handle/Shield PLN-530015820
...
10
Clamp Handle PLN-530094742
...
11
Nut PLN-530091373
...
12
Line Limiter PLN-530052287
...
13
Screw PLN-530015957
...
14
Bolt Handle/Shield PLN-530015820
...
15
Kit Shield Assy (Incl. 12,13,14,16) PLN-530069686
...
16
Nut PLN-530091373
...
17
Accy W/E TNG 5 Cutting Head (Incl. 18-21) PLN-952701676
...
18
Assy Hub PLN-530095770
...
19
Spring Compression PLN-530401958
...
20
Clip Retainer Head PLN-530401957
...
21
Accy W/E Spool w/Line PLN-952701678
...
xx
Operator Manual Not Shown PLN-530163366
...
xx
Decal Start Instruction Not Shown PLN-530054864
...
xx
Decal Shaft Warning Not Shown PLN-530055350

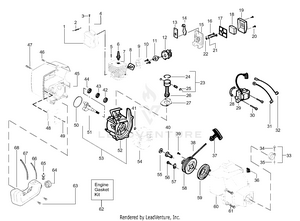

Engine Assembly

...
...
1
Kit - Muffler (Incl. 2,3,4) PLN-530071362
...
2
Spring-Muffler PLN-530042088
...
3
Screw-Screen PLN-530015241
...
4
Kit-Spark Arrestor PLN-530071361
...
5
Screw-Cylinder PLN-530015953
...
6
Spark Plug (RCJ 6Y) PLN-952030249
...
7
Cylinder PLN-530012416
...
8
Gasket-Cylind./Carb. PLN-530071363
...
9
CARBURETOR ADAPTOR PLN-545030402
...
10
Screw PLN-530016014
...
11
Gasket-Carb. PLN-530071363
...
12
Kit - Carburetor Ass'y (C1U-W10) PLN-530071443
...
12
Kit - Carburetor Ass'y (C1U-W10B) PLN-530071628
...
13
Choke Plate Mounting PLN-530038747
...
14
Shutter-Choke PLN-530038686
...
15
Air Box PLN-530052431
...
16
Screw PLN-530016353
...
17
Plate - Filter Support PLN-530036569
...
18
Foam-Air Filter PLN-530036575
...
19
Cover-Air Filter PLN-530054414
...
20
Screw PLN-530015892
...
21
Spacer-Choke PLN-530015852
...
22
Washer PLN-530015254
...
23
Kit-Piston (Incl. 24, 25 & Pin) PLN-530071833
...
24
RING PISTON PLN-545154001
...
25
Retainer-Piston Pin PLN-530015162
...
26
CONNECTING ROD ASSY PLN-530049817
...
27
Gasket-Cylinder PLN-530071363
...
28
Spacer-Module PLN-530036145
...
29
Ignition Module PLN-530055160
...
30
Screw PLN-530015954
...
31
SWITCH, GROUND WIRE PLN-581425901
...
32
Assy-Leadwire PLN-530014663
...
33
Assy-Nose Cone Clamp (Incls. 34 & 35) PLN-530056365
...
34
Screw-Nose Cone PLN-530016381
...
35
Nut-Nose Cone PLN-530016382
...
36
Kit-On/Off Switch PLN-530071356
...
37
Handle-Starter PLN-530027569
...
38
Kit - Rope PLN-530069232
...
39
Screw PLN-530016080
...
40
Coupling-Drive PLN-530038604
...
41
Retain. Ring-C'shaft PLN-530015941
...
42
Outer Bearing PLN-530055728
...
43
C'case Seal PLN-530071615
...
44
Inner Bearing PLN-530032125
...
45
Shroud-Rear PLN-530056710
...
46
Screw PLN-530015934
...
47
SCREW PLN-530016386
...
48
Shield-Heat PLN-530055351
...
49
Screw PLN-530015805
...
50
O-Ring-C'case/Shrd PLN-530071363
...
51
Assy-Crankshaft PLN-530054753
...
52
Assy-Crankcase (Incl. 42-44) PLN-530071627
...
53
Assy-C'case & C'shaft (Incl. 41,51,52) PLN-530071360
...
54
FLYWHEEL ASSY PLN-545221701
...
55
Washer-Flat PLN-530015828
...
56
Screw PLN-530015775
...
57
Retainer-Can PLN-530027523
...
58
STARTER PULLEY KIT (Incl. 39) PLN-530071786
...
59
STARTER SPRING PLN-545008010
...
60
Assy.-Fan Hsg PLN-530056706
...
61
SCREW PLN-530016386
...
62
Kit-Engine Gasket (Incl. 8,11,27,50) PLN-530071363
...
63
Screw PLN-530016379
...
64
Assy-Fuel Cap PLN-530014347
...
65
Assy-Fuel Pickup PLN-530095646
...
66
Kit-Fuel Line (Small) PLN-530069247
...
67
Kit-Fuel Line (Large) PLN-530069216
...
68
FUEL TANK ASSY (Incl. filter, lines & fuel cap) PLN-545103802
...
...
...
