Weed Eater FL1500LE Gas Blower Type 4, Featherlite

Model: FL1500LE Gas Blower Type 4

Save
 Part Not Listed?Part Not Listed?
product name

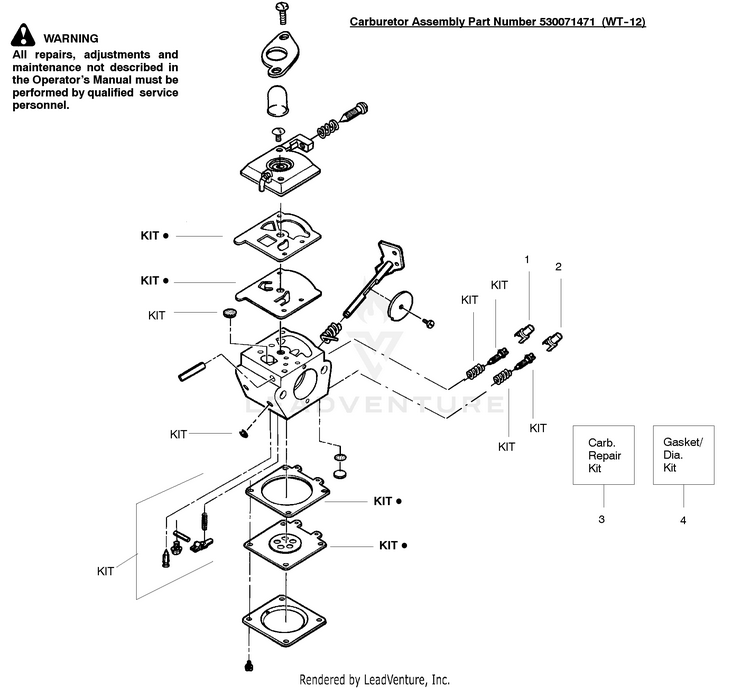

Carburetor Assembly

...
...
xx
Kit - Carburetor Assy C1U-W12A PLN-530071629
...
1
Limiter Cap-Low (tan) PLN-530038478
...
2
Limiter Cap-High (brown) PLN-530038479
...
3
Carburetor Repair Kit (KIT = CONTENTS) PLN-530071517
...
4
Gasket/Diaphragm Kit PLN-530071442

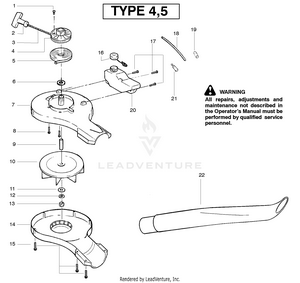

Cover Type 4-5

...
...
1
Screw PLN-530016392
...
2
Handle-Starter PLN-530049488
...
3
Kit-Rope PLN-530069907
...
4
Kit-Starter Pulley (Incl. 1) PLN-530071792
...
5
KIT STARTER SPRING PLN-545008011
...
6
Washer PLN-530015149
...
7
Housing-Impeller (Upper) PLN-530058713
...
8
Screw PLN-530015814
...
9
Spacer-Flywheel PLN-530052434
...
10
Assy-Impeller PLN-530053237
...
11
Washer-Flat PLN-530016260
...
12
Lockwasher PLN-530092322
...
13
Nut PLN-530626605
...
14
Assy-Impeller Housing (Lower) PLN-530054181
...
15
Screw PLN-530015886
...
16
Assy-Fuel Cap PLN-530014347
...
17
Screw PLN-530016349
...
18
Kit-Fuel Line PLN-530069599
...
19
Grommet-Fuel Line PLN-530053314
...
20
Assy-Fuel Tank (Incl. cap,filter, fuel lines) PLN-545103903
...
21
Assy-Fuel Pickup PLN-530095646
...
22
Tube-Blower PLN-530052337
...
22
Operator Manual Not Shown PLN-545186783
...
22
Decal - Spark Arrestor Warning Not Shown PLN-522928602

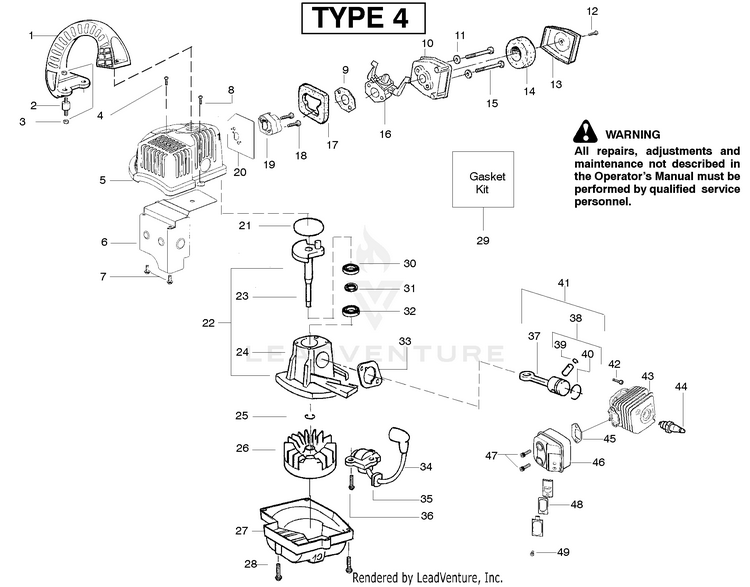

Engine Type 4

...
...
1
Handle PLN-530054429
...
2
Isolator-Handle PLN-530054432
...
3
Nut PLN-530016316
...
4
SCREW PLN-530016386
...
5
Shroud PLN-530055336
...
6
Shield-Heat PLN-530055378
...
7
Screw PLN-530015805
...
8
Screw PLN-530016349
...
9
Gasket-Carb. (Kit) PLN-530071472
...
10
Air Box PLN-530052333
...
11
Washer PLN-530015123
...
12
Screw PLN-530015892
...
13
Cover-Air Box PLN-530052332
...
14
Foam-Air Filter PLN-530047932
...
15
Screw PLN-530016394
...
16
Kit-Carburetor Ass'y. (C1U-W12A) PLN-530071629
...
17
Foam-Air Dam PLN-530057725
...
18
Screw PLN-530016309
...
19
Adaptor-Carb. PLN-530057634
...
20
Gasket-Cyl/Carb. Adaptor (Kit) PLN-530071472
...
21
Gasket-C'case/Shroud (Kit) PLN-530071472
...
22
Assy.-C'case & C'shaft (Incl. 23,24,25) PLN-530071680
...
23
C'case & C'shaft Ass'y. PLN-530071625
...
24
Assy.-Crankcase (Incl. 30-32) PLN-530012510
...
25
Retainer Ring (C'shaft) PLN-530015941
...
26
FLYWHEEL ASSY PLN-545221701
...
27
Fan Housing PLN-530058942
...
28
SCREW PLN-530016386
...
29
Kit-Gasket (Incl. 9,20,21,33) PLN-530071472
...
30
Inner Bearing PLN-530032125
...
31
Seal-Crankcase PLN-530019264
...
32
Bearing-Outer PLN-530055728
...
33
Gasket-Cylinder (Kit) PLN-530071472
...
34
Ignition Module PLN-530039163
...
35
Grommet-Ign. Module PLN-530019182
...
36
Screw PLN-530016357
...
37
CONNECTING ROD ASSY PLN-530049817
...
38
Kit-Piston (Incl. 39 & 40) PLN-530071833
...
39
Wrist Pin Retainer PLN-530015162
...
40
RING PISTON PLN-545154001
...
41
Kit-Piston/Rod Assy. (Incl. 37,38) PLN-530071785
...
42
Screw PLN-530015953
...
43
Cylinder PLN-530012500
...
44
Spark Plug (RCJ-6Y) PLN-952030249
...
45
Gasket-Muffler (kit) PLN-530071472
...
46
Kit-Muffler (Incl. #45,47-49) PLN-530071778
...
47
Bolt-Muffler PLN-530016338
...
48
Kit-Spark Aresstor PLN-530071544
...
49
Screw PLN-530015241

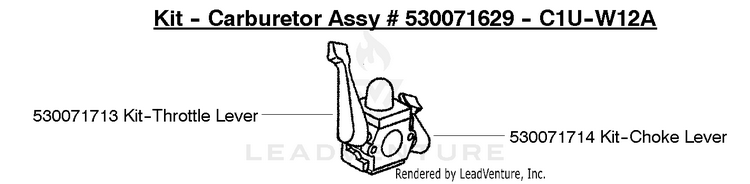

Kit - Carburetor Assy

...
...
530071629
KIT PLN-530071629
...
530071713
KIT PLN-530071713
...
530071714
KIT PLN-530071714
...
...
...
