Weed Eater ESB17 Electric Trimmer

Model: ESB17 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

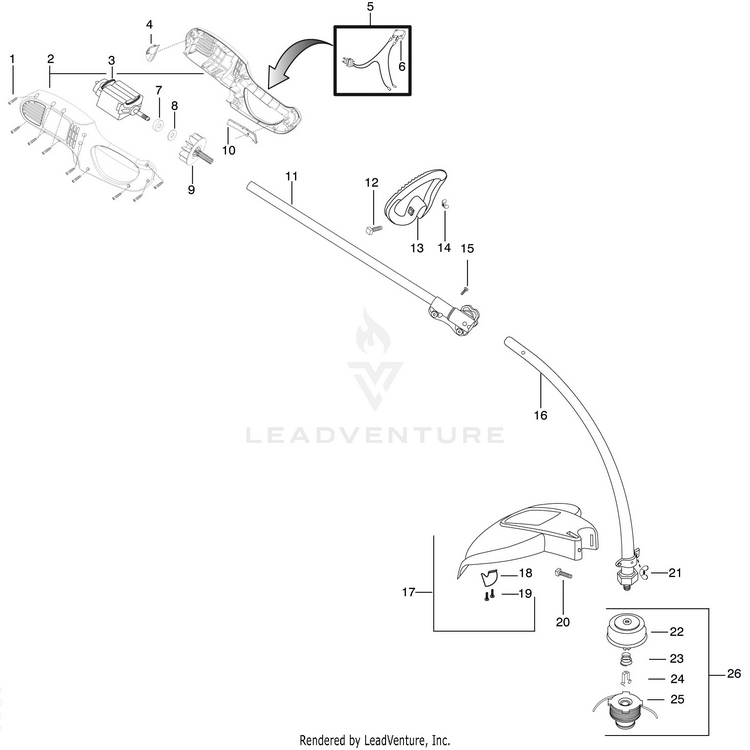

Electric Trimmer Assembly

...
...
1
Screw (Qty. 12) PLN-530016120
...
2
Assy-Housing Set w/decal PLN-545013802
...
3
Assy-Motor PLN-530404326
...
4
Retainer-Cord PLN-530404385
...
5
Assy-Wire Harness (Incl. #6) PLN-545126701
...
6
Switch-Momentary PLN-530404396
...
7
Spacer PLN-530404165
...
8
Washer PLN-530400897
...
9
Fan-Cooling PLN-530404327
...
10
Trigger-Switch PLN-530404325
...
11
Kit-Upper shaft w/decal (Incl. #15) PLN-530071965
...
12
Bolt-Handle PLN-530015786
...
13
Assy-Handle (Incl. 12,14) PLN-530058583
...
14
Nut PLN-530091373
...
15
Screw PLN-530016381
...
16
Kit-Lower Shaft PLN-530071788
...
17
Kit-Shield (Incl. decal, 18,19) PLN-545014101
...
18
Limiter-Line PLN-530052286
...
19
Screw PLN-530015814
...
20
Bolt PLN-530015820
...
21
Nut PLN-530091373
...
22
Kit-Hub Ass'y (Incl. 23,24) PLN-530071306
...
23
Spring-Return PLN-530053241
...
24
Retainer-Spool PLN-530401957
...
25
TNG 6 RH .080X25' PLN PLN-952701719
...
26
Accy-TNG VI Head (Incl. 22,23,24,25) PLN-952711621
...
xx
Manual - Operator Not Shown PLN-545212850
...
xx
Hanger-Attachment Not Shown PLN-530150031
...
xx
Decal - Model Warning Not Shown PLN-545003369
...
xx
Decal - Shaft Warning Not Shown PLN-530150181
...
xx
Decal-Shaft Warning Not Shown PLN-545209101
...
...
...
