Weed Eater BC2500LE Gas Trimmer Type 2

Model: BC2500LE Gas Trimmer Type 2

Save
 Part Not Listed?Part Not Listed?
product name

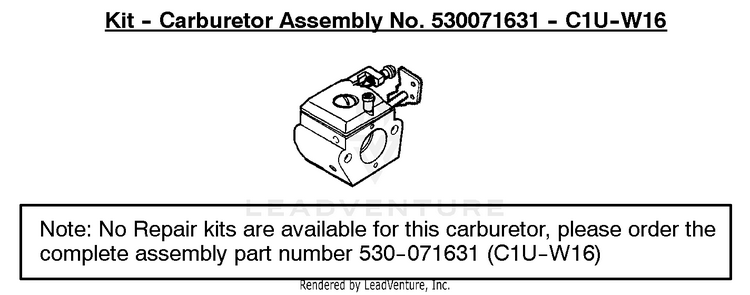

Carburetor Assembly (C1U-W16) 530071631

...
...
530071631
Carburetor Assembly C1U-W16 PLN-530071631

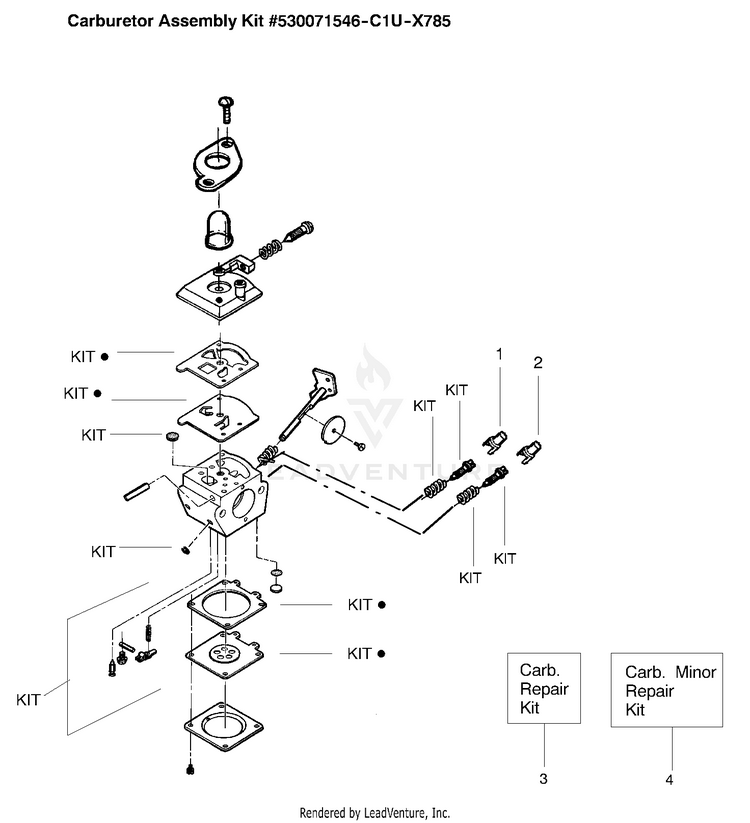

Carburetor Assembly (C1U-X785) 530071546

...
...
1
Limiter Cap (low) -- tan PLN-530038478
...
2
Limiter Cap (high) -- brown PLN-530038479
...
3
Kit--Carburetor Repair (KIT=Indicates Contents) PLN-530071551
...
4
Kit--Carburetor Minor Repair (DOT = Indicates Contents) PLN-530071442
...
530071546
Carburetor Assembly (C1U--X785) PLN-530071546

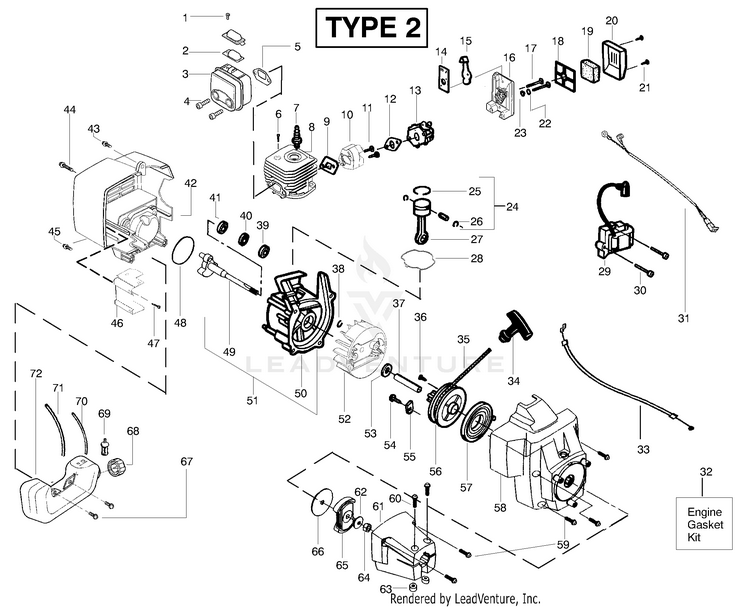

Engine Assembly Engine Assembly Type 2

...
...
1
Screw--Screen PLN-530015241
...
2
Kit--Spark Arrestor PLN-530071544
...
3
Kit -- Muffler (incl. 1,2,4,5) PLN-530071672
...
4
Bolt--Muffler PLN-530016338
...
5
Gasket--Muffler(kit) PLN-530071363
...
6
Screw--Cylinder PLN-530015953
...
7
Spark Plug (RCJ 6Y) PLN-952030249
...
8
Kit -- Cylinder PLN-530071678
...
9
Gasket--Cyl/Carb(kit) PLN-530071363
...
10
Adapter--Carb. PLN-530056404
...
11
Screw PLN-530016309
...
12
Gasket--Carb.(kit) PLN-530071363
...
13
Kit--Carburetor (C1U--W16) PLN-530071631
...
14
Choke Plate Mounting PLN-530038747
...
15
Shutter--Choke PLN-530035499
...
16
Air Box PLN-530052431
...
17
Screw PLN-530016353
...
18
Plate -- Filter Support PLN-530036569
...
19
Foam--Air Filter PLN-530036575
...
20
Cover--Air Filter PLN-530054414
...
21
Screw PLN-530015892
...
22
Spacer--Choke PLN-530015852
...
23
Washer PLN-530015254
...
24
Kit-Piston (Incl. 25, 26 & Pin) PLN-530071833
...
25
RING PISTON PLN-545154001
...
26
Retainer - Piston Pin PLN-530015162
...
27
CONNECTING ROD ASSY PLN-530049817
...
28
Seal--Cylinder (kit) PLN-530071363
...
29
Kit - Ignition Module PLN-545081826
...
30
Screw PLN-530016357
...
31
Assy--Switch Wire PLN-530047278
...
32
Kit--Engine Gasket (Incl. 5,9,12,28,48) PLN-530071363
...
33
Assy--Throttle Cable PLN-530056241
...
34
Handle--Starter PLN-530027569
...
35
Kit -- Rope PLN-530071325
...
36
Screw PLN-530016326
...
37
Spacer--Flywheel PLN-530016376
...
38
Retain. Ring--C'shaft PLN-530015941
...
39
Outer Bearing PLN-530055728
...
40
Kit--C'case Seal PLN-530071615
...
41
Inner Bearing PLN-530032125
...
42
Shroud--Rear PLN-530056710
...
43
Screw PLN-530015934
...
44
SCREW PLN-530016386
...
45
Screw PLN-530015880
...
46
Shield--Heat PLN-530055351
...
47
Screw PLN-530015805
...
48
O--Ring--C'case(kit) PLN-530071363
...
49
Assy--Crankshaft PLN-530028803
...
50
Assy--Crankcase (Incl. 39--41) PLN-530012510
...
51
Assy--C'case & C'shaft (Incl. 38,49,50) PLN-530071696
...
52
FLYWHEEL ASSY PLN-545221701
...
53
Washer PLN-530015149
...
54
Screw PLN-530016224
...
55
Retainer PLN-530053985
...
56
Kit--Starter Pull (incl 36) PLN-530071324
...
57
KIT STARTER SPRING PLN-545008011
...
58
Assy.--Fan Hsg PLN-530057317
...
59
SCREW PLN-530016386
...
60
Screw PLN-530015767
...
61
Assy--Clutch Hsg. PLN-530014923
...
62
Washer--Flat PLN-530015828
...
63
Nut PLN-530015768
...
64
Nut--Clutch PLN-530626605
...
65
Assy--Clutch PLN-530069491
...
66
Washer--Clutch PLN-530015611
...
67
Retainer PLN-530016379
...
68
Assy--Fuel Cap PLN-530014347
...
69
Assy--Fuel Pickup PLN-530095646
...
70
Kit--Fuel Line (Small) PLN-530069247
...
71
Kit--Fuel Line (Large) PLN-530069216
...
72
FUEL TANK ASSY (incl. 68,69 & fuel lines) PLN-545103802

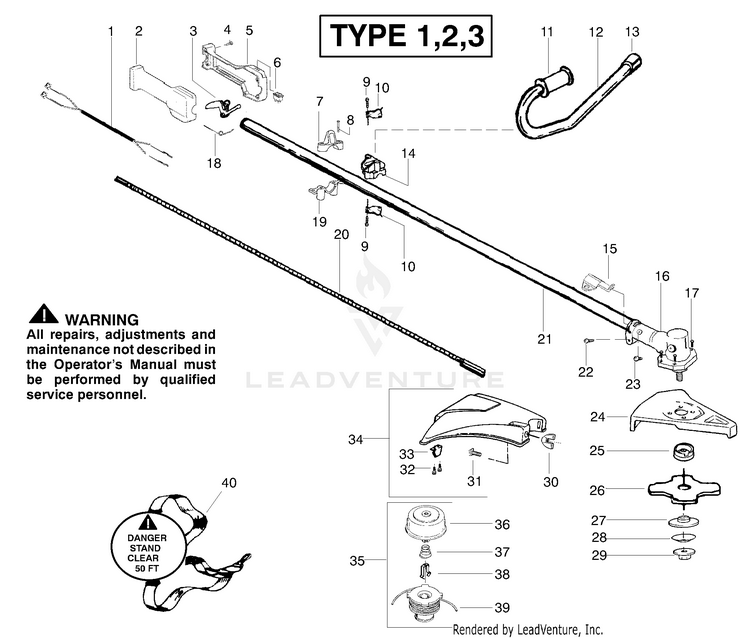

Handle & Driveshaft Assembly Type 1-3

...
...
1
Assy--Leadwire PLN-530047307
...
2
Hsg.--Throttle Right PLN-530053968
...
3
Lever--Throttle PLN-530056334
...
4
Screw PLN-530015886
...
5
Hsg.--Throttle Left PLN-530053969
...
6
Kit--On/Off Switch PLN-530069572
...
7
KIT HARNESS CLAMP PLN-530071605
...
8
Screw PLN-530015770
...
9
Screw PLN-530015791
...
10
Bracket--Handlebar PLN-530094572
...
11
Grip--Handlebar PLN-530092086
...
12
Kit--Handlebar Assy. w/decal PLN-530056300
...
13
End Cap--Handlebar PLN-530092192
...
14
Clamp--Handlebar PLN-530012207
...
15
Bracket--Shield PLN-530095812
...
16
Kit--Gear Box Ass'y. PLN-530071585
...
17
Screw PLN-530016312
...
18
Spring--lever return PLN-530027597
...
19
Clamp--Lower PLN-530055394
...
20
Shaft--Flex PLN-530094585
...
21
Kit--Drive Shaft Assy PLN-530071338
...
22
Screw PLN-530016014
...
23
Screw PLN-530016301
...
24
Kit--Metal Shield PLN-530071383
...
25
Dust Cup PLN-530095815
...
26
Accy--4 Point Blade PLN-952701611
...
27
Washer PLN-530095816
...
28
Washer--Belleville PLN-530016240
...
29
Nut--Flange PLN-530015793
...
30
Nut PLN-530091373
...
31
Bolt PLN-530015820
...
32
Screw PLN-530015805
...
33
Line Limiter PLN-530052285
...
34
Kit--Shield Ass'y. (Incl. 30--33) PLN-530069779
...
35
Accy--Cutting Head (Incl. 36--39) PLN-952711550
...
36
Assy--Hub PLN-530095772
...
37
Spring--Return PLN-530053241
...
38
Retainer--Spool PLN-530401957
...
39
Accy--Spool w/Line PLN-952711551
...
40
Assy--Shoulder Strap PLN-530094417
...
xx
Manual--Operator Not Shown PLN-530163351
...
xx
Decal--Blade Direction Not Shown PLN-530056335
...
xx
Hex Wrench (5/32) Not Shown PLN-530031159
...
xx
Hex Wrench (3/16) Not Shown PLN-530031098
...
xx
Decal--H'bar Warning Not Shown PLN-530027778
...
xx
Decal--Shaft Warning Not Shown PLN-530055349
...
...
...
