product name

Weed Eater B1750LE Gas Blower Type 2

Model: B1750LE - Weed Eater Gas Blower Type 2

Save
 Part Not Listed?Part Not Listed?
product name

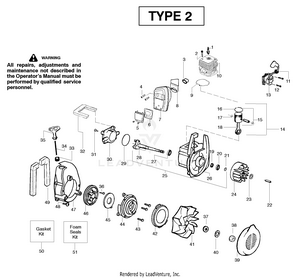

Engine Type 2

...
...
1
Spark Plug (RCJ-6Y) PLN-952030249
...
2
Screw PLN-530015953
...
3
Insulator-Heat PLN-530055191
...
4
Screw-Muffler-Internal PLN-530016387
...
5
Screw PLN-530015241
...
6
Kit-Spark Screen (incl. #5) PLN-530071593
...
7
Kit-Muffler (incl. 4,5,6, & 8) PLN-530071599
...
8
Gasket-Baffle (kit) PLN-530071458
...
9
Gasket-Cylinder (kit) PLN-530071458
...
10
Kit-Cylinder PLN-530071457
...
11
Grommet-Ign. Module PLN-530019182
...
12
Screw-Ignition Module PLN-530016357
...
13
Ignition Module PLN-530035505
...
14
Kit-Piston/Rod (Incl. 15,18) PLN-530071785
...
15
Kit-Piston (Incl. 16 & 17) PLN-530071833
...
16
RING PISTON PLN-545154001
...
17
Retainer-Piston Pin PLN-530015162
...
18
CONNECTING ROD ASSY PLN-530049817
...
19
Seal PLN-530019264
...
20
Bearing-Outer PLN-530055728
...
21
Retainer Ring-C'chaft PLN-530015941
...
22
Spacer-Flywheel PLN-530016190
...
23
Washer PLN-530015149
...
24
FLYWHEEL ASSY PLN-530047534
...
25
Assy-Crankcase/Crank shaft (incl. 21,26,28) PLN-530071456
...
26
Assy-Crankcase (Incl. 19,20,27) PLN-530012492
...
27
Bearing-Inner PLN-530032125
...
28
Assy-Crankshaft PLN-530012452
...
29
O-ring-C/case (kit) PLN-530071458
...
30
Cover-Crankcase PLN-545064601
...
31
SCREW PLN-530016386
...
32
Foam-219mm (kit) PLN-530071459
...
33
Eyelet-Flange PLN-530029182
...
34
Kit-Rope (Incl. 35) PLN-530071467
...
35
Handle-Starter PLN-530049488
...
36
Screw-Rope PLN-530016391
...
37
Washer-Belleville PLN-530016402
...
38
Nut PLN-530626605
...
39
Inlet Door PLN-530049313
...
40
Washer PLN-530016279
...
41
Kit-Impeller Assy. PLN-530069817
...
42
Seal-Ring PLN-545078801
...
43
Screw PLN-530016349
...
44
Housing-Pulley PLN-545079101
...
45
KIT STARTER SPRING PLN-545008011
...
46
PULLEY STARTER PLN-545150201
...
47
Fan Housing PLN-545079001
...
48
SCREW PLN-530016386
...
49
Foam-182mm (kit) PLN-530071459
...
50
Kit-Gasket (page 2 incl. 2,5 & 19 ) (page 5 incl. 8,9, & 29 ) PLN-530071458
...
51
Kit-Foam Seals (page 2 incl. 1,14,32) (page 5 incl. 32 & 49) PLN-530071459

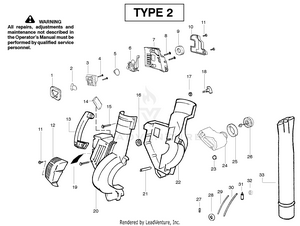

Housing Type 2

...
...
1
Air Dam (kit) PLN-530071459
...
2
Gasket-Adapter (kit) PLN-530071458
...
3
Carburetor Adaptor PLN-530035561
...
4
Screw PLN-530016441
...
5
Gasket-Carburetor (kit) PLN-530071458
...
6
KIT CARB ASSY C1Q-W11 PLN-530071775
...
6
Kit-Carb Ass'y. Walbro-(WT-606) PLN-530071775
...
7
Air Box PLN-530056629
...
8
Screw-Carb. PLN-530015849
...
9
Filter-Air PLN-530049383
...
10
Cover-Air Filter PLN-530056581
...
11
Screw PLN-530016349
...
12
Guard-Muffler PLN-545085001
...
13
Handle PLN-530095469
...
14
Foam - 71.12mm (kit) PLN-530071459
...
15
Screw PLN-530015886
...
16
Isolator PLN-530049323
...
17
Nut PLN-530015197
...
18
Knob-Blower PLN-530016322
...
19
Tape-Reflector (kit) PLN-530071458
...
20
Shroud-RH PLN-545018007
...
21
Guide-Starter Rope PLN-530049617
...
22
Shroud-LH PLN-545018107
...
23
Isolator-Crankcase PLN-530036792
...
24
Assy-Fuel Tank PLN-545058007
...
25
Gasket-Fuel Tank PLN-530049527
...
26
Assy - Fuel Cap w/retainer PLN-530057973
...
27
Fitting-Fuel Line PLN-530023877
...
28
Grommet-Shroud PLN-530049656
...
29
Kit-Line Carb/Purge PLN-530069247
...
30
Kit-Line Tank/Purge PLN-530069216
...
31
Assy-Fuel Pick-up PLN-530095646
...
32
Grommet-Fuel line (kit) PLN-530071459
...
33
Tube-Blower PLN-530095593
...
33
Operator Manual Not Shown PLN-545117520
...
33
Warning Decal Not Shown PLN-530057866
...
33
Decal-Inst./Warning Not Shown PLN-545003024

Kit - Carburetor Assy

...
...
530071632
KIT CARB ASSY C1Q-W11 PLN-530071775
...
530071775
KIT CARB ASSY C1Q-W11 PLN-530071775
...
530071716
KIT CHOKE ZAMA LB25 PLN-545081819
...
530071725
KIT PLN-530071725
...
530071715
THROTTLE KIT ZAMA PLN-530071715
...
530071726
KIT PLN-530071726
...
...
...
