product name

Weed Eater 829 Electric Trimmer

Model: 829 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

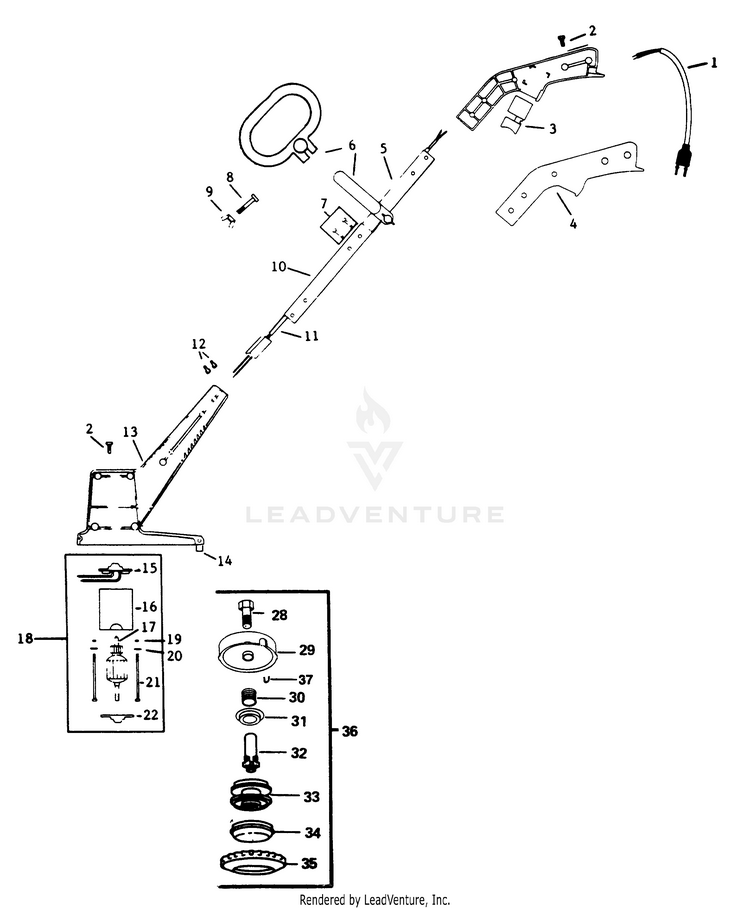

TRIMMER ASSEMBLY

...
...
1
POWER CORD PIGTAIL PLN-530090866
...
2
SCREW PLN-530090827
...
3
SWITCH PLN-530090824
...
4
TRIGGER HANDLE (SET ONLY) PLN-530092707
...
5
UPPER HANDLE TUBE PLN-530092708
...
6
ASSIST HANDLE PLN-530092709
...
7
SCREW PLN-530092628
...
8
BOLT PLN-530092061
...
9
WING NUT PLN-530092049
...
10
LOWER HANDLE TUBE PLN-530092711
...
11
530092712 PLN-530092712
...
12
CONNECTOR PLN-530090876
...
13
MOTOR HOUSING (SET ONLY) PLN-530092713
...
14
TAIL INTERFERENCE BLADE PLN-530090874
...
15
END BELL w/BRUSHES AND SPRINGS PLN-530092714
...
16
FIELD ASSEMBLY PLN-530092715
...
17
ARMATURE PLN-530092716
...
18
MOTOR (COMPLETE) PLN-530092717
...
19
NUT PLN-530091333
...
20
LOCK WASHER PLN-530092718
...
21
SCREW PLN-530092719
...
22
ENDBELL, OUTPUT PLN-530092721
...
28
DRIVE ADAPTOR PLN-530092726
...
29
HUB w/LINE SAVER PLN-530092673
...
30
Spring PLN-530340007
...
31
Cap Spring PLN-530328929
...
32
DRIVE GEAR PLN-530092069
...
33
SPOOL, W/LINE PLN-702509
...
34
Tap Button PLN-530401183
...
35
COVER PLN-530092133
...
36
TAP-N-GO HEAD ASSEMBLY PLN-530092728
...
37
LINE SAVER PLN-530092134
...
...
...
