Weed Eater 657 Gas Trimmer

Model: 657 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

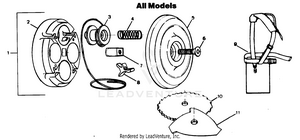

CUTTING HEAD ASSEMBLY

...
...
1
Head Assembly PLN-530092809
...
2
Hub PLN-530092802
...
3
Spool w/Line PLN-952701510
...
4
Spring, Spool Retainer PLN-530092805
...
5
Lower Cover PLN-530092806
...
6
Socket Head Cap Screw 3/8 NC x 1-1/4 PLN-530092808
...
7
Arbor Post PLN-530092803
...
8
Retainer, Line PLN-530092807
...
9
Shoulder Strap PLN-530092779
...
10
10" Brush Blade (Optional) PLN-952701598
...
11
8" -Model 670 PLN-952701527
...
11
11" -Models 650,657 PLN-952701509

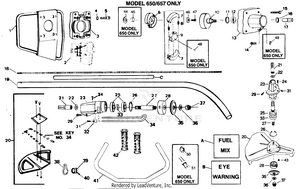

DRIVE SHAFT & CUTTING HEAD

...
...
1
Motor Leg PLN-530092741
...
2
Muffler Guard PLN-530092742
...
3
Plate Adaptor Engine PLN-530092743
...
4
Washer, Lock 9/16" O.D. 5/16" I.D. PLN-530091458
...
5
Screw, Socket Hd. #5/16 - 18 x 3/4" PLN-530092745
...
6
Model 657 PLN-530092816
...
6
Model 650 PLN-530092759
...
7
Shoe, Clutch PLN-530093131
...
8
Spring, Clutch, Yellow PLN-530092762
...
9
Model 657 PLN-530092817
...
9
Model 650 PLN-530092763
...
10
Drum & Arbor PLN-530092767
...
11
Retaining Ring PLN-530092768
...
12
Bearing PLN-530092769
...
13
Housing, Clutch w/Bearing/Get. Ring PLN-530092771
...
14
Model 657 PLN-530092794
...
14
Model 650 PLN-530092772
...
15
Screw, Hex Hd #1/4 - 20 x 2" PLN-530092775
...
16
Washer, Drive Shaft, Upper & Lower PLN-530092773
...
17
Coupling Squared PLN-530092774
...
18
Previous Style PLN-530092776
...
18
Current Style PLN-530094500
...
19
Previous Style PLN-530092778
...
19
Current Style PLN-530094501
...
20
Previous Style (#34 not included) PLN-530092937
...
20
Current Style PLN-530094504
...
21
Coupling Squared PLN-530092774
...
22
Washer, Upper & Lower Drive Shaft PLN-530092773
...
23
Previous Style PLN-530092793
...
23
Current Style PLN-530094503
...
24
Previous Style PLN-530092787
...
24
Current Style PLN-530094505
...
25
Bearing, Ball PLN-530092769
...
26
Retaining Ring PLN-530092768
...
27
Arbor Shaft PLN-530092799
...
28
Cup Washer, Arbor, Keyed PLN-530092801
...
29
Screw, Soc. Hd. #5/16 - 18 x 1" PLN-530092794
...
31
Screw #1/4 - 20 x 1/2" PLN-530092795
...
32
Washer - Previous Style PLN-530092796
...
33
Spacer PLN-530092798
...
34
Lower Head Support Brace - Previous Style PLN-530092797
...
35
Washer, Lower Arbor PLN-530093137
...
36
Previous Style PLN-530093153
...
36
Current Style PLN-530092773
...
37
Nut, Hex #7/16 - 20 PLN-530093139
...
38
GASKET PLN-110092781
...
xx
Swivel Hook Wire PLN-530092781
...
39
Collar, Swivel PLN-530092782
...
40
Screw, Set Thumb PLN-530092821
...
41
Handlebar PLN-530092784
...
42
Model 657 PLN-530091402
...
42
Model 650 PLN-530092783
...
43
Nut - 10-32-Current Style PLN-530094506
...
44
Washer PLN-530092757
...
45
Spacer PLN-530092758
...
46
Washer PLN-530092765
...
47
Screw PLN-530092766
...
48
Woodruff Key PLN-530092764
...
49
Lock Nut PLN-530001615
...
50
Pilot Washer PLN-530092792
...
51
Grommet - Drive Shaft PLN-530092777
...
A
Decal - Fuel Mix PLN-530092749
...
B
Decal - Choke/Eye Warning PLN-530092791
...
C
Decal-Safety Label PLN-530092819

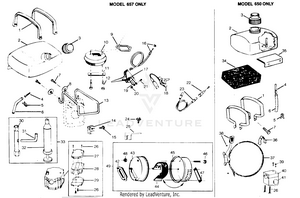

FUEL & EXHAUST

...
...
1
Model 657 PLN-530092815
...
1
Model 650 PLN-530092755
...
2
Model 657 PLN-530092811
...
2
Model 650 PLN-530092747
...
3
Cap,-Fuel Tank-Plastic PLN-530092746
...
4
Filter, - Fuel Tank PLN-530092748
...
5
Clip, - Fuel Hose PLN-530092752
...
6
Model 657 PLN-530092812
...
6
Model 650 PLN-530092751
...
7
Screw #1/4-20x5/8" PLN-530092756
...
8
Washer,-Flat Model 657 PLN-530092814
...
9
Gasket,-Exhaust Model 657 PLN-530092829
...
10
Muffler Model 657 PLN-530092828
...
11
Tab Lock Model 657 PLN-530092832
...
12
Screw, Hex Hd.-#1/4-20x2-5/16" Model 657 PLN-530092831
...
13
Cradle, Fuel Tank Model 657 PLN-530092813
...
14
Clip, Retaining Model 657 PLN-530093789
...
15
Screw, (Slot Hd) Clip Model 657 PLN-530093791
...
16
Throttle Control Cable w/nut Model 657 PLN-530093785
...
17
Throttle Control over Assembly Model 657 PLN-530093783
...
18
Previous Style Model 657 PLN-530093786
...
18
Current Style Model 657 PLN-506094502
...
19
Throttle Control Clamp Model 657 PLN-530091346
...
20
Nut (Hex #10-32)-Switch Bracket Model 657 PLN-530091333
...
21
Screw (Pan Hd.)-Switch Bracket Model 657 PLN-530091332
...
22
Wire Connector & Cover Model 657 PLN-530093787
...
23
Switch Harness Lead Model 657 PLN-530093788
...
24
Screw-Cable Clamp #1/4-20x3/8" Model 657 PLN-530092833
...
25
Throttle Control Bracket Model 657 PLN-530093784
...
26
Screw, Allen Hd #5/16-18x7/8" Model 657 PLN-530092818
...
27
Upper Cap Model 657 PLN-530092822
...
28
Middle Block Model 657 PLN-530092823
...
29
Lower Cap Model 657 PLN-530092824
...
30
Box Wrench Model 657 PLN-530091361
...
31
Allen Wrench Model 657 PLN-530092627
...
32
Grease Gun Model 657 PLN-530091413
...
33
Tool Kit (Incl. #30, 31 & 32) Model 657 PLN-530092826
...
34
Fuel Tank Baffle Model 650 PLN-530092753
...
35
Fuel Tank Bracket Model 650 PLN-530092754
...
36
Throttle Control Clip Model 650 PLN-530092788
...
37
Throttle Control Complete Model 650 PLN-530092789
...
38
Screw Model 650 PLN-530092787
...
39
Screw Model 650 PLN-530092772
...
40
Upper Clamp Model 650 PLN-530092785
...
41
Lower Clamp Model 650 PLN-530092786
...
42
Gasket PLN-530019151
...
43
Muffler, Inlet PLN-530027419
...
44
Baffle w/Screen PLN-530027420
...
45
Muffler, Outlet PLN-530027421
...
46
Loc Tab PLN-530027422
...
47
Screw 1/4"-20x1-3/4" PLN-530625567
...
48
Nut, Flex-Loc 1/4" 20 PLN-530015761
...
49
Kit-Spark Arresting Muffler (Optional) PLN-530069239
...
...
...
