Weed Eater 6000 Gas Trimmer

Model: 6000 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

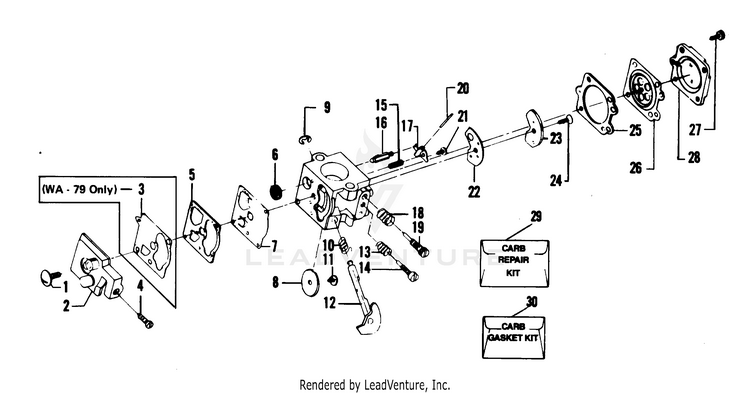

CARBURETOR WA-149, WA-79 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
Pump Cover Ass'y (Inc. #4) WA-79 PLN-530035154
...
2
Pump Cover Ass'y (Inc. #4) WA-149 PLN-530035191
...
3
Diaphragm - Pump WA-79 PLN-530035135
...
4
Screw - Idle Adjustment PLN-530035156
...
5
Gasket - Pump WA-79 PLN-530035009
...
5
GASKET PLN-504130906
...
6
Screen - Inlet PLN-530035178
...
7
Diaphragm - Pump WA-79 PLN-530035152
...
7
PUMP DIAPHRAGM PLN-504130807
...
8
Valve - Throttle PLN-530035133
...
9
Clip - Throttle Shaft PLN-530035007
...
10
Spring - Throttle Return PLN-530035138
...
11
Screw - Throttle Valve PLN-530035015
...
12
Shaft Ass'y - Throttle PLN-530035132
...
13
Spring - Idle Needle PLN-530035023
...
14
Needle - Idle PLN-530035141
...
15
WT-141 - T1 PLN-530035188
...
16
Valve - Inlet Needle PLN-530035008
...
17
Metering Lever PLN-505520127
...
18
Spring - Hi Speed Needle PLN-530035036
...
19
H-NEEDLE PLN-501782201
...
20
Pin PLN-505520125
...
21
Screw - Metering Lever Pin PLN-530035016
...
22
GASKET PLN-501781301
...
23
Plate - Circuit PLN-530035042
...
24
Screw - Circuit Plate PLN-530035137
...
25
Gasket - Metering Diaphragm PLN-530035151
...
26
DIAPHRAGM PLN-503896701
...
27
Screw - Ass'y - Metering Cover & Throttle Shaft Clip PLN-530035153
...
28
Cover - Metering Diaphragm PLN-530035149
...
29
Kit-Carb Repair WA-79 PLN-530035144
...
29
Kit-Carb Repair WA-149 PLN-530035185
...
30
Kit-Carb Gasket/Diaphragm WA-79 PLN-530035145
...
30
Gasket Diaphragm Kit PLN-530069844

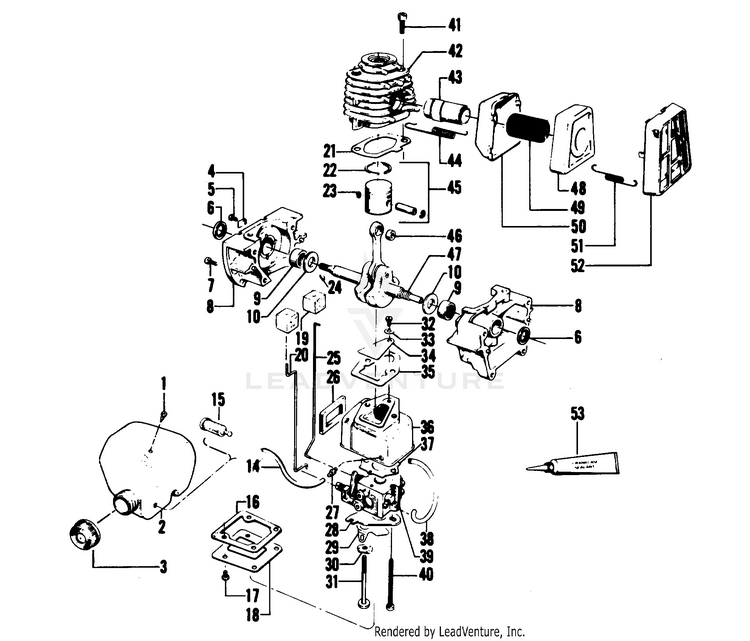

ENGINE BLOCK

...
...
1
Check Valve - Duck Bill PLN-530026119
...
2
Fuel Tank Ass'y (Inc. 1, 3, 14 & 15) PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Clamp - Choke Wire PLN-530024651
...
5
Screw - 8 - 32 x 5/16 - Pan Hd. - Choke Rod Clamp PLN-530015004
...
6
Seal - Crankcase PLN-530019059
...
7
Screw - Crankcase PLN-530010316
...
8
Crankcase Ass'y (Inc. 6, 7 & 9) PLN-530015168
...
9
Crankshaft Bearing PLN-530032029
...
10
Washer - Thrust - Crankcase PLN-530015351
...
14
Fuel Line PLN-530021042
...
15
Fuel Pick-up Assembly PLN-530091878
...
16
Gasket - Carburetor Case Cover PLN-530019112
...
17
Screw - 8 - 18 x 9/16 - Pan Hd. - Carburetor Case Cover PLN-530015235
...
19
Boot - Throttle - Choke Wire PLN-530023373
...
21
Engine Gasket Kit PLN-530069219
...
22
Ring - Piston PLN-530024929
...
23
Retainer - Wrist Pin PLN-530015162
...
24
Key - Flywheel PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Seal - Carburetor Case PLN-530019105
...
27
Fuel Line Fitting PLN-530025472
...
29
Choke Shutter PLN-530024558
...
30
Washer - Wave PLN-530015254
...
31
Screw - 10 - 24 x 2-1/8 - Fil. Hd. - Carburetor - Shoulder PLN-530015404
...
32
Screw - 6 - 19 x 5/16 - Pan Hd. - Reed Valve PLN-530015241
...
33
Washer - Reed Valve Screw PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Gasket - Carburetor Case to Crankcase PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Gasket - Carburetor PLN-530019115
...
38
Fuel Line - Carburetor PLN-530021043
...
39
Carburetor - See Service Ref. 2. PLN-530035183
...
40
Screw - 10 - 24 x 1-7/8 - Fil. Hd. - Carburetor PLN-530015379
...
41
Screw - 1/4 - 20 x 3/4 - Hex Socket Hd. - Cylinder PLN-530015239
...
42
Cylinder PLN-530012071
...
43
Diffuser - Muffler PLN-530024363
...
44
Muffler Spring PLN-530036409
...
45
Piston Ass'y (Inc. #22, 23 & Pin) PLN-530022238
...
46
Bearing - Wrist Pin PLN-530032057
...
47
Crankshaft & Rod Ass'y PLN-530026675
...
48
Cover - Muffler PLN-530024361
...
49
Screen - Spark Arresting PLN-530024364
...
50
Body - Muffler PLN-530024362
...
51
Spring - Muffler Guard PLN-530024932
...
52
Guard - Muffler PLN-530024855
...
53
Sealant - Crankcase. (Not Supplied with Unit) PLN-530030054

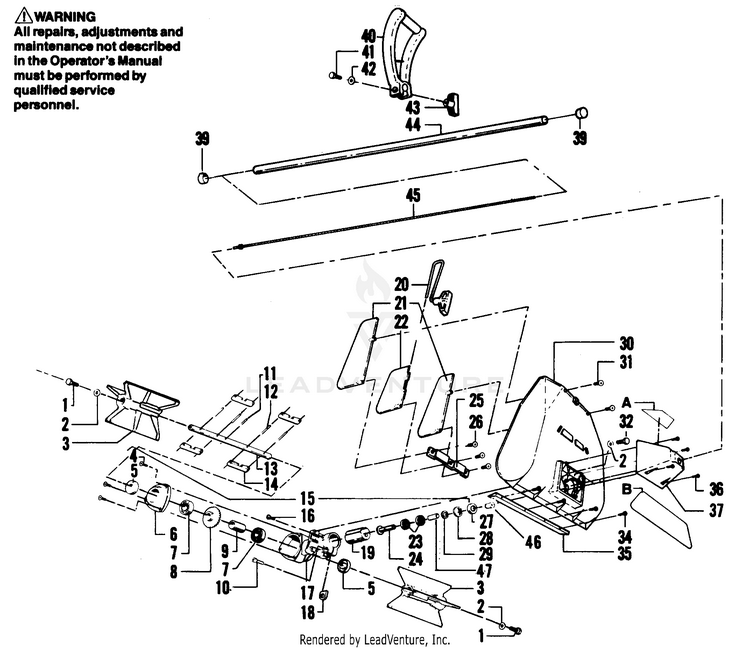

SHOVEL ASSEMBLY

...
...
1
Screw - Impeller - 1/4 - 20 x 1/2 - Hex Hd. PLN-530015426
...
2
Washer - Impeller & Gear Box Mounting PLN-530001503
...
3
Impeller PLN-530093883
...
4
Screw - Gear Housing PLN-530093865
...
5
Oil Seal - Double Lip PLN-530093119
...
6
Gear Housing Cover PLN-530093864
...
7
Bearing - Shaft PLN-530093118
...
8
Gear - Spiral Bevel PLN-530093867
...
9
Collar - Shaft PLN-530093807
...
10
Screw - Pinch Clamp - 1/4 - 20 x 1/2 - Hd. PLN-530015239
...
11
Pin Spiral - Gear PLN-501093124
...
11
Pin Spiral - Gear PLN-530093124
...
12
Pin - Spiral - Brace PLN-530093034
...
13
Output Shaft PLN-530093117
...
14
Brace - Impeller PLN-530093036
...
15
Gear Box Assembly (Inc. #4-10, 16-19, 23, 24 & 27-29) PLN-530093861
...
16
Screw - Index 10 - 24 x 7/16 PLN-530015216
...
17
Gear Housing PLN-530093866
...
18
Washer - Fiber Filler PLN-530092308
...
19
Sleeve PLN-530093863
...
20
Activating Rod Assembly PLN-530093111
...
21
Vane - Outboard PLN-530092566
...
22
Vane - Center PLN-530092567
...
23
Bearing - Pinion PLN-530010722
...
24
Pinion Gear - Forged Bevel PLN-530093868
...
25
Tie - Bar - Vane (obsolete) (obsolete) PLN-093037
...
26
Screw - Vane Tie Bar - 8 - 16 Soc. Hd. PLN-530015481
...
27
Oil Seal - Single Lip PLN-530093129
...
28
Retaining Ring PLN-530091574
...
29
Retaining Ring - Pinion PLN-530091573
...
30
Housing -Impeller PLN-530092578
...
31
Screw - Vane - 18 - 16 Socket Hd. PLN-530015481
...
32
Screw - Gear Box Mounting PLN-530015448
...
34
Screw - Scraper Bar - 8 - 12 x 3/4 - Fil Hd. PLN-530015451
...
35
Scraper Bar PLN-530093029
...
36
Screw - Rear Cover - 8 - 12 x 3/4 - Fil Hd. PLN-530015451
...
37
Cover - Rear PLN-530092563
...
39
Cap - Drive Shaft Housing PLN-530092192
...
40
Assist Handle PLN-530093729
...
41
Screw - Assist Handle PLN-530092061
...
42
Washer - Assist Handle PLN-530092062
...
43
Knob - Assist Handle PLN-530092059
...
44
Drive Shaft Housing (Inc. #45) PLN-530093797
...
45
Drive Shaft PLN-530092554
...
46
Plug - Grease It is recommended that Grease Plug 193875 be serviced only by an authorized service dealer. PLN-530093875
...
47
Collar Pinion PLN-530093128
...
A
Decal - Weed Eater - Rear Cover PLN-530025162
...
B
Decal - Directional Control PLN-530025163
...
xx
Operator's Manual Model 6000 Not Shown. PLN-530064507
...
xx
Operator's Manual Model 6500 Not Shown. PLN-530064507

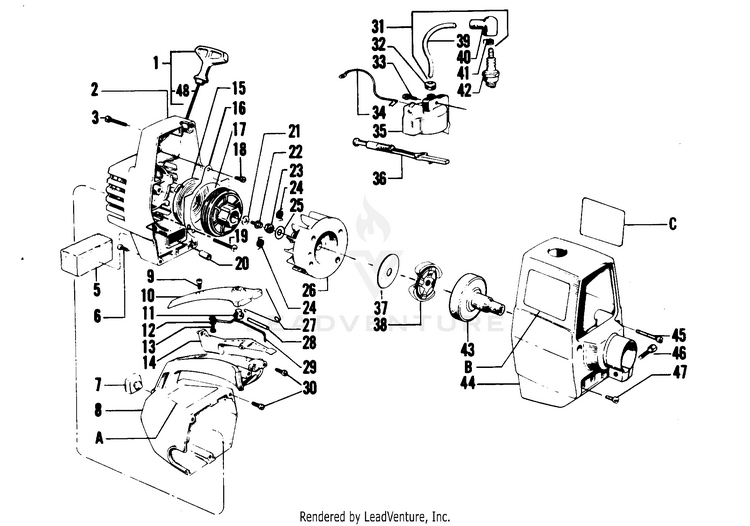

STARTER, & SHROUD

...
...
2
Fan Housing Kit (Inc. 16, 18, 19, 20, 28) - See Service Ref. 6 PLN-530069178
...
3
Screw - 10 - 24 x 1-1/2 - Sems - Fan Hsg. - Top PLN-530015583
...
5
Air Filter PLN-530024371
...
6
Screw - 10 - 24 x 5/8 - Fan Hsg. - Bottom PLN-530015582
...
7
Bumper -Fuel Tank Housing PLN-530024436
...
8
Handle & Fuel Tank Housing PLN-530024656
...
9
Screw - 8 - 16 x 3/4 - Pan Hd. - Handle Cover PLN-530015247
...
10
Handle Cover PLN-530024661
...
11
Button - Kill Switch PLN-530026679
...
12
Washer - Kill Switch PLN-530015412
...
13
Screw - 8 - 16 x 3/8 - Pan Hd. - Kill Switch PLN-530015407
...
14
Trigger - Throttle PLN-530024365
...
16
Air Baffle - See Service Ref. 6 PLN-530026035
...
18
Screw - #10 x 1/4 - Fil. Hd. - Air Baffle - See Service Ref. 6. PLN-530015373
...
19
Screw - 10 - 24 x 1-3/16 Fil. Hd. - Air Baffle See Service Ref. 6. PLN-530015305
...
20
Spacer PLN-530026122
...
21
Washer - Starter Pulley PLN-530015123
...
22
Screw - #10 - 3/4 - Hex Washer Hd. - Starter Pulley PLN-530015479
...
23
Nut - Flywheel - 5/16 x 24 PLN-530626605
...
24
Spring-Starter Dog PLN-530023817
...
25
Washer - Flywheel PLN-530015127
...
26
Flywheel Assembly (Inc. #24) PLN-530039114
...
27
Trigger Spring PLN-530024461
...
28
Insulation - Switch Spring PLN-530021036
...
29
Spring - Kill Switch PLN-530024407
...
30
Screw-Line Limiter PLN-530015814
...
31
High Tension - Lead Assembly (Incl. #17, 18 & 19) PLN-502039103
...
xx
HIGH TENSION LEAD NLA PLN-530039103
...
32
Grommet - Plug Wire PLN-530024435
...
33
Screw PLN-530015816
...
34
Lead Wire Switch PLN-530024158
...
35
Kit - Ignition Module PLN-530069181
...
36
Knob - Choke PLN-530024303
...
37
Kit - Clutch - Washer - See Service Ref. 5 PLN-530069196
...
39
High Tension Lead Wire PLN-530039082
...
40
Boot - Spark Plug PLN-530003934
...
41
Spark Plug Boot PLN-507475326
...
42
Spark Plug PLN-530030077
...
43
Coupling and Bearing Assembly PLN-530010797
...
44
Shroud PLN-530011778
...
45
Screw - 10 - 24 x 1-1/3 Fil. Hd. - Shroud (Top) PLN-530015376
...
46
Bolt - Pinch Clamp PLN-530093802
...
47
Screw - 10 - 24 x 5/8 - Fil. Hd. - Shroud (Bottom) PLN-530015168
...
48
Rope (3.5 ft.) PLN-530022290
...
A
Decal - Starting Instructions PLN-530025256
...
B
Decal - Shroud (Right) (Not a serviceable part) PLN-530025159
...
C
Decal - Shroud (Left) PLN-530025160
...
...
...
