Weed Eater 587 Electric Trimmer

Model: 587 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

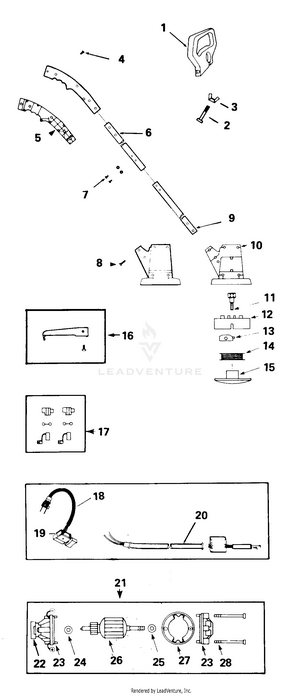

TRIMMER ASSEMBLY

...
...
1
ASSIST HANDLE PLN-530092637
...
2
BOLT PLN-530092638
...
3
WING NUT PLN-530092049
...
4
SCREW PLN-530092598
...
5
TRIGGER HANDLE SET PLN-530092639
...
6
TUBE, UPPER PLN-530092641
...
7
TUBE FASTENER KIT PLN-530092626
...
8
SCREW PLN-530092624
...
9
TUBE, LOWER PLN-530092644
...
10
MOTOR HOUSING SET PLN-530092694
...
11
ADAPTOR PLN-530092646
...
12
HUB w/LINE SAVERS PLN-530092695
...
13
LINE SAVER PLN-530093216
...
14
SPOOL, WOUND PLN-952701513
...
15
BALL LOCK PLN-530092651
...
16
LINE LIMITER KIT PLN-530092669
...
17
BRUSH KIT PLN-530092652
...
18
POWER CORD PIGTAIL PLN-530090866
...
19
SWITCH PLN-530090824
...
20
HARNESS w/RECTIFIER PLN-530092698
...
21
MOTOR PLN-530092656
...
22
INSULATOR PLN-530092657
...
23
END BELL SET PLN-530092658
...
24
WASHER-THRUST, .025" PLN-530092659
...
25
WASHER-THRUST, .010" PLN-530092661
...
26
ARMATURE PLN-530092662
...
27
FIELD ASSEMBLY PLN-530092663
...
28
SCREW PLN-530092664
...
...
...
