Weed Eater 509 Electric Trimmer Type 2

Model: 509 Electric Trimmer Type 2

Save
 Part Not Listed?Part Not Listed?
product name

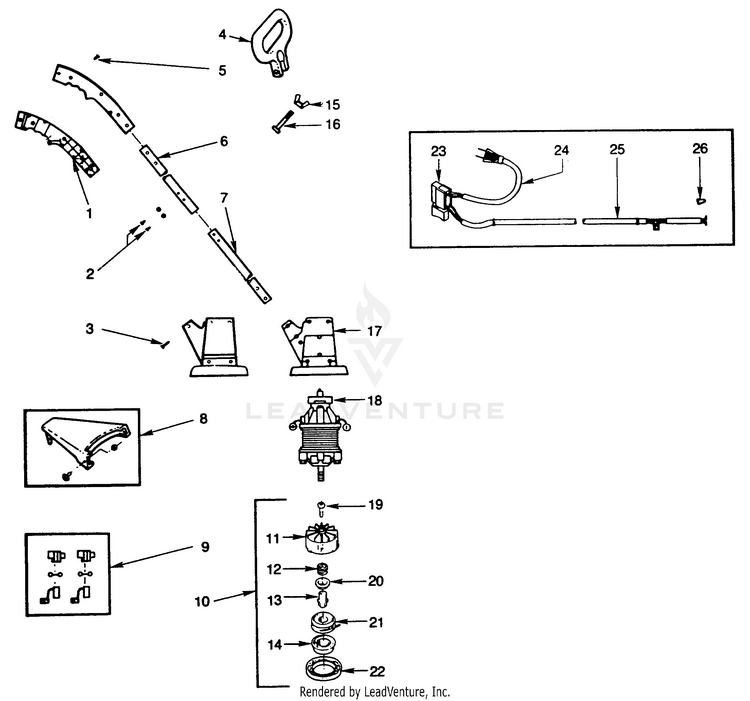

Electric Trimmer Assembly Type 2

...
...
1
TRIGGER HANDLE SET PLN-93741
...
2
TUBE FASTNER KIT PLN-92626
...
3
SCREW PLN-92624
...
4
ASSIST HANDLE PLN-93734
...
5
SCREW PLN-90827
...
6
TUBE,UPPER PLN-93186
...
7
TUBE, LOWER PLN-346754
...
8
LINE LIMITER ASSEMBLY PLN-701522
...
9
BRUSH KIT PLN-92652
...
10
TAP-N-GO HEAD ASSEMBLY PLN-93767
...
11
HUB W/LINE SAVER PLN-92673
...
12
SPRING PLN-92067
...
13
DRIVE GEAR PLN-92069
...
14
RELEASE BUTTON PLN-93387
...
15
WING NUT PLN-92049
...
16
BOLT PLN-92638
...
17
MOTOR HOUSING SET PLN-321611
...
18
MOTOR PLN-347415
...
19
DRIVE ADAPTOR PLN-92672
...
20
SPRING ADAPTOR PLN-92068
...
21
SPOOL WOUND PLN-702509
...
22
COVER PLN-92133
...
23
SWITCH PLN-90824
...
24
POWER CORD PIGTAIL PLN-93856
...
25
HARNESS W/DIODE PLN-347416
...
26
CONNECTOR PLN-343307
...
...
...
