Weed Eater 507 Electric Trimmer

Model: 507 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

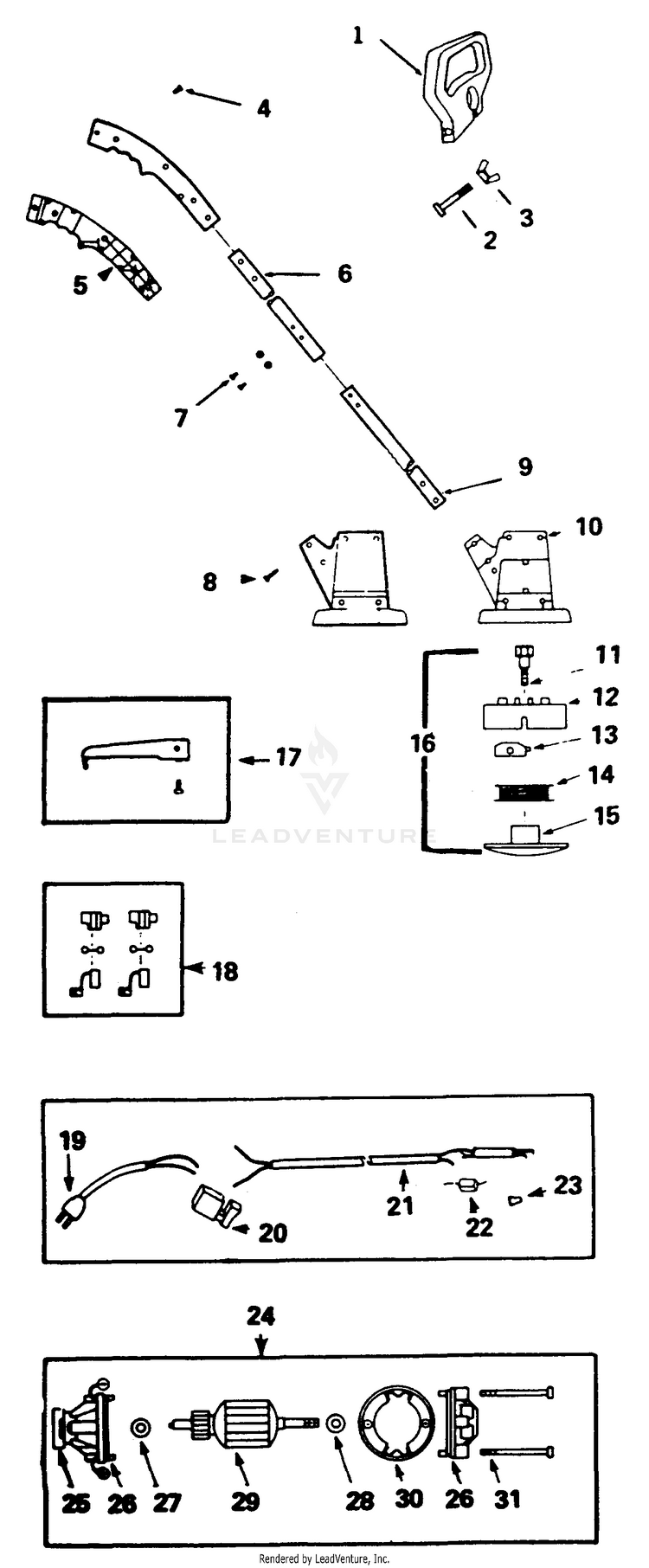

Electric Trimmer Assembly

...
...
1
ASSIST HANDLE PLN-92637
...
2
BOLT PLN-92638
...
3
WING NUT PLN-92049
...
4
SCREW PLN-92598
...
5
TRIGGER HANDLE SET PLN-92639
...
6
TUBE, UPPER PLN-92641
...
7
TUBE FASTENER KIT PLN-92626
...
8
SCREW PLN-92624
...
9
TUBE, LOWER PLN-92644
...
10
MOTOR HOUSING SET PLN-92645
...
11
ADAPTOR PLN-92646
...
12
HUB w/LINE SAVERS PLN-92665
...
13
LINE SAVER PLN-93216
...
14
SPOOL WOUND PLN-702505
...
15
BALL LOCK PLN-92651
...
16
HEAD ASSEMBLY PLN-92668
...
17
LINE LIMITER KIT PLN-701522
...
18
BRUSH KIT PLN-92652
...
19
POWER CORD PIGTAIL PLN-90866
...
20
SWITCH PLN-90824
...
21
HARNESS w/DIODE PLN-92671
...
22
DIODE PLN-92677
...
23
CONNECTOR PLN-90876
...
24
MOTOR PLN-92656
...
25
INSULATOR PLN-92657
...
26
END BELL SET PLN-92658
...
27
WASHER-THRUST, .025" PLN-92659
...
28
WASHER-THRUST, .010" PLN-92661
...
29
ARMATURE PLN-92662
...
30
FIELD ASSEMBLY PLN-92663
...
31
SCREW PLN-92664
...
...
...
