Weed Eater 409 Electric Trimmer

Model: 409 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

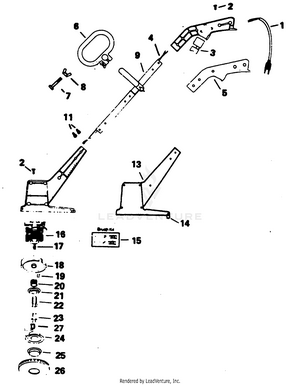

TRIMMER ASSEMBLY

...
...
1
POWER SUPPLY CORD PLN-530090866
...
2
SCREW PLN-530090827
...
3
SWITCH PLN-530090824
...
4
HARNESS PLN-530093614
...
5
TRIGGER HANDLE SET PLN-530093618
...
6
ASSIST HANDLE PLN-530090884
...
7
BOLT (1-1/2") PLN-530093617
...
8
WING NUT PLN-530092049
...
9
TUBE PLN-530093615
...
11
CONNECTOR PLN-530090876
...
13
MOTOR HOUSING SET PLN-530092629
...
14
TAIL INTERFERENCE BLADE PLN-530090874
...
15
BRUSH KIT PLN-530090891
...
16
MOTOR PLN-530090892
...
17
WASHER, THRUST PLN-530090878
...
18
HUB PLN-530093195
...
19
LINE SAVER PLN-530093009
...
20
COIL SPRING PLN-530093015
...
21
COIL SPRING ADAPTOR PLN-530093014
...
22
DRIVE GEAR PLN-530092632
...
23
DRIVE GEAR INSERT PLN-530093013
...
24
SPOOL WOUND PLN-952701521
...
25
RELEASE BUTTON PLN-530092635
...
26
COVER PLN-530092636
...
27
DRIVE ADAPTOR INSERT PLN-530093196
...
...
...
