product name

Weed Eater 400 Electric Trimmer

Model: 400 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

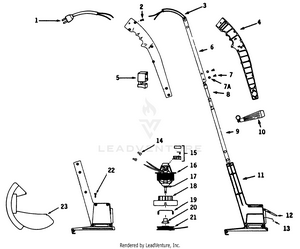

TRIMMER ASSEMBLY

...
...
1
POWER CORD PIGTAIL PLN-530090866
...
2
SCREW PLN-530092598
...
3
HARNESS PLN-530092611
...
4
HANDLE SET PLN-530092599
...
5
SWITCH PLN-530090824
...
6
TUBE, UPPER (obsolete) (obsolete) PLN-092612
...
7
SCREW PLN-530092613
...
7A
WASHER, LOCK PLN-530090887
...
8
SCREW BARRIER PLN-530092614
...
9
TUBE, LOWER (obsolete) (obsolete) PLN-092615
...
10
ASSIST HANDLE PLN-530092616
...
11
MOTOR HOUSING SET PLN-530092617
...
12
CLIP OFF LEVER PLN-530092618
...
13
CLIP OFF BLADE PLN-530090873
...
14
CONNECTOR PLN-530090876
...
15
BRUSH KIT PLN-530090891
...
16
MOTOR ASSEMBLY PLN-530090892
...
17
WASHER, THRUST PLN-530090878
...
18
HUB PLN-530092619
...
19
LINE SAVER PLN-530092621
...
20
HUB RETAINER PLN-530092622
...
21
SPOOL WOUND PLN-530092604
...
22
SCREW PLN-530092624
...
23
GUARD (obsolete) (obsolete) PLN-092625
...
...
...
