Weed Eater 25HO SST Trimmer

Model: 25HO SST Trimmer, 25ho, High Output

Save
 Part Not Listed?Part Not Listed?
product name

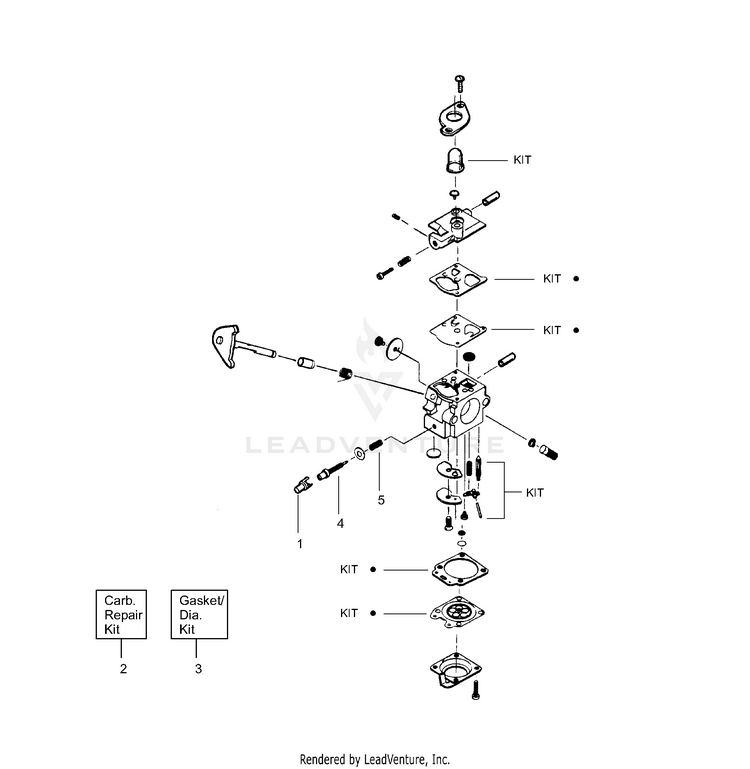

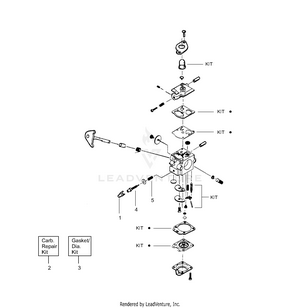

Carburetor Assembly P/N 530069754 WA-226

...
...
1
Limiter Cap PLN-530038404
...
2
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069842
...
3
Gasket Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
4
Needle-Idle PLN-530035341
...
5
Spring-Idle Needle PLN-530035342
...
xx
Carburetor Assembly WA-226 PLN-530069754

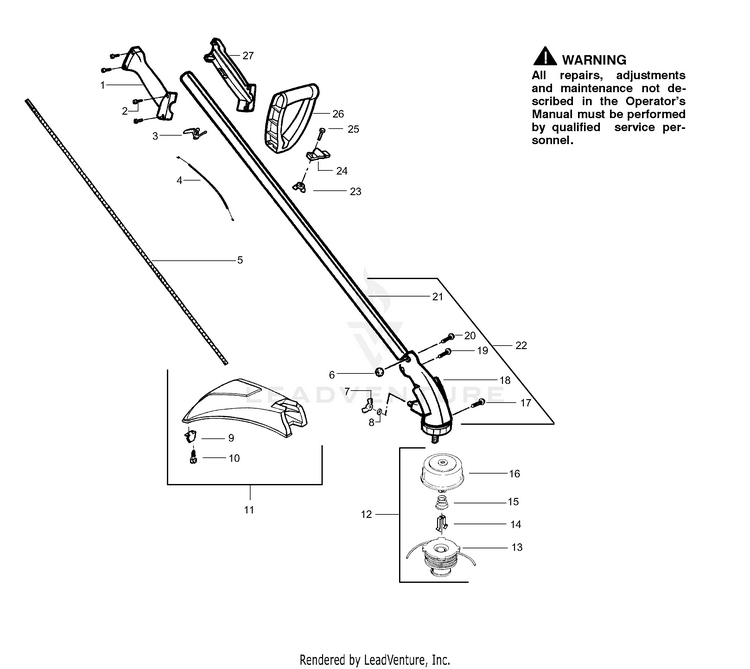

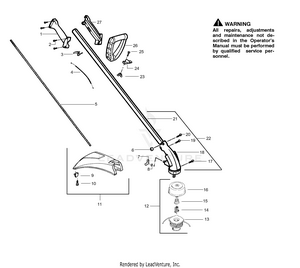

Drive Shaft & Cutting Head

...
...
1
Throttle Hsg. (Right) PLN-530038581
...
2
Screw-Throttle Hsg. PLN-530016273
...
3
Trigger PLN-530038682
...
4
Assy Throttle Cable New part number for this IPL PLN-530071548
...
5
Flex-Drive Shaft PLN-530095391
...
6
Locknut-Gear Box New part number for this IPL PLN-530016284
...
7
Wingnut-Gear Box PLN-530016225
...
8
Washer PLN-530092062
...
9
Line Limiter PLN-530052286
...
10
Screw-Line Limiter PLN-530015880
...
11
Kit-Shield Ass'y. (Incl. 9 & 10) PLN-530069752
...
12
Accy-TNG VI Cutting Head (Incl. 13-16) PLN-952711621
...
13
Accy-Spool w/Line PLN-952711548
...
14
Clip-Retainer PLN-530401957
...
15
Spring PLN-530053241
...
16
Kit-Hub Ass'y New part number for this IPL PLN-530071306
...
17
Screw PLN-530016202
...
18
Assy-Gear Box New part number for this IPL PLN-530095638
...
19
Screw PLN-530016224
...
20
Screw New part number for this IPL PLN-530016312
...
21
Assy-Drive Shaft Hsg. PLN-530071303
...
22
Kit-Gearbox/Shaft (Incl. #18 & 21) New part number for this IPL PLN-530053000
...
23
Nut New part number for this IPL PLN-530091373
...
24
Clamp-Handle PLN-530094742
...
25
Bolt-Handle PLN-530015820
...
26
Assist Handle PLN-530038708
...
27
Throttle Hsg. (Left) PLN-530038580
...
xx
Operator Manual Not Shown New part number for this IPL PLN-530088826
...
xx
Shaft Warning Decal Not Shown New part number for this IPL PLN-530055350

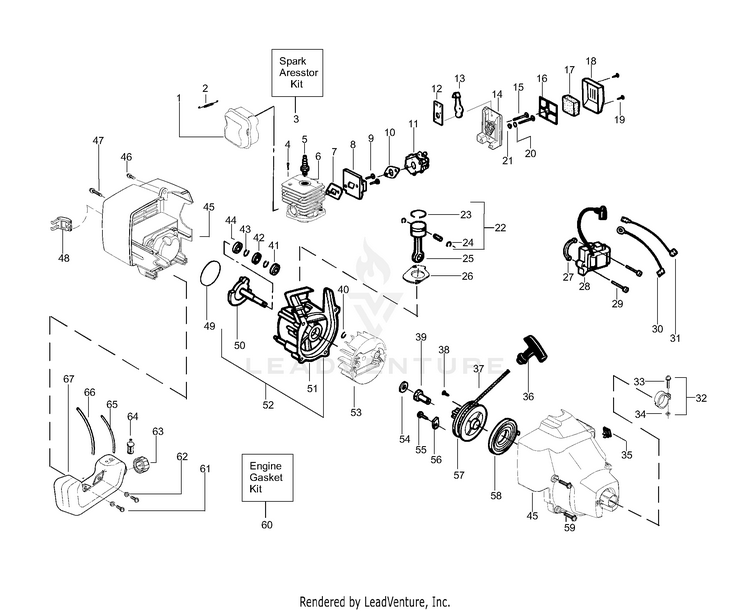

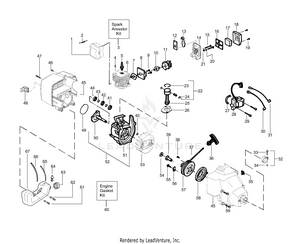

Engine

...
...
1
Kit - Muffler (Incl. 2,3) PLN-530071390
...
2
Spring-Muffler PLN-530042088
...
3
Kit-Spark Arrestor PLN-530071391
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug PLN-503235112
...
6
Cylinder PLN-530012416
...
7
Gasket-Cylind./Carb. PLN-530069913
...
8
Carb. Adapter Kit PLN-530069994
...
9
Screw PLN-530016014
...
10
Gasket-Carb. PLN-530069913
...
11
Kit - Carburetor Ass'y (Incl. Limiter Cap) PLN-530069754
...
12
Choke Plate Mounting PLN-530038747
...
13
Shutter-Choke PLN-530038686
...
14
Air Box PLN-530052431
...
15
Screw PLN-530015887
...
16
Plate - Filter Support PLN-530036569
...
17
Foam-Air Filter PLN-530036575
...
18
Cover-Air Filter PLN-530036568
...
19
Screw PLN-530015880
...
20
Spacer-Choke PLN-530015852
...
21
Washer PLN-530015254
...
22
Kit - Piston (Incl. 23, 24 & Pin) PLN-530069987
...
23
Piston Ring PLN-530053565
...
24
Retainer-Piston Pin PLN-530015162
...
25
Assy-Connecting Rod PLN-530069615
...
26
Gasket-Cylinder PLN-530069913
...
27
Spacer-Module PLN-530036145
...
28
Ignition Module PLN-530055160
...
29
Screw PLN-530015954
...
30
SWITCH, GROUND WIRE PLN-581425901
...
31
Assy-Leadwire PLN-530014663
...
32
Assy-Nose Cone Clamp (Incls. 33 & 34) PLN-530056365
...
33
Screw-Nose Cone PLN-530015650
...
34
Nut-Nose Cone PLN-530016124
...
35
Kit-On/Off Switch PLN-530071356
...
36
Handle-Starter PLN-530027569
...
37
Kit - Rope PLN-530069232
...
38
Screw PLN-530016080
...
39
Coupling-Drive PLN-530038604
...
40
Retain. Ring-C'shaft PLN-530015941
...
41
Outer Bearing PLN-530032124
...
42
C'case Seal PLN-530019179
...
43
Retainer Ring-C'case PLN-530015945
...
44
Inner Bearing PLN-530032125
...
45
Assy.-Fan Hsg/Shroud PLN-530069685
...
46
Screw PLN-530015934
...
47
SCREW PLN-530016386
...
48
Guard-Muffler New part number for this IPL PLN-530054536
...
50
Assy-Crankshaft PLN-530054083
...
51
Assy-Crankcase (Incl. 41-44) PLN-530071627
...
52
Assy-C'case & C'shaft (Incl. 40,50,51) PLN-530014729
...
53
FLYWHEEL ASSY PLN-545221701
...
54
Washer-Flat PLN-530015828
...
55
Screw PLN-530015775
...
56
Retainer-Can PLN-530027523
...
57
STARTER PULLEY KIT (Incl. 39) PLN-530071786
...
58
STARTER SPRING PLN-545008010
...
59
SCREW PLN-530016386
...
60
Kit-Engine Gasket (Incl. 7,10,26,49) PLN-530069913
...
61
Screw PLN-530015886
...
62
Washer PLN-530016131
...
63
Assy-Fuel Cap PLN-530014347
...
64
Assy-Fuel Pickup PLN-530095646
...
65
Kit-Fuel Line (Small) PLN-530069247
...
66
Kit-Fuel Line (Large) PLN-530069216
...
67
FUEL TANK ASSY (Incl. filter, lines & fuel cap) PLN-545103802
...
...
...
