product name

Weed Eater 2545 Electric Blower

Model: 2545 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

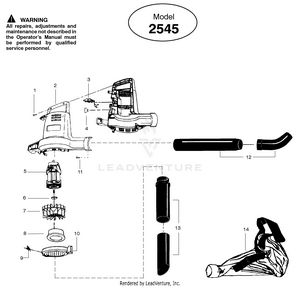

Electirc Blower Assembly

...
...
1
Screw PLN-530016317
...
2
Housing Set PLN-530404267
...
3
Wire Harness (Incls. Switch) PLN-530404162
...
4
Switch PLN-530404190
...
5
Assy-Motor PLN-530403312
...
6
Washer PLN-530400897
...
7
Impeller PLN-530401097
...
8
Inlet-Restrictor PLN-530403791
...
9
Spring PLN-530351417
...
10
Assy-Cover (incl.#9) PLN-530403574
...
11
Screw PLN-530015994
...
12
Kit-Nozzle/Tube PLN-530403682
...
13
Kit-Vacuum Tube PLN-530402499
...
14
Kit-Vacuum Bag PLN-530402533
...
xx
Operator Manual Not Shown PLN-530163993
...
xx
Decal-Warning Not Shown PLN-530402500
...
xx
Decal-Warning Not Shown PLN-530402365
...
...
...
